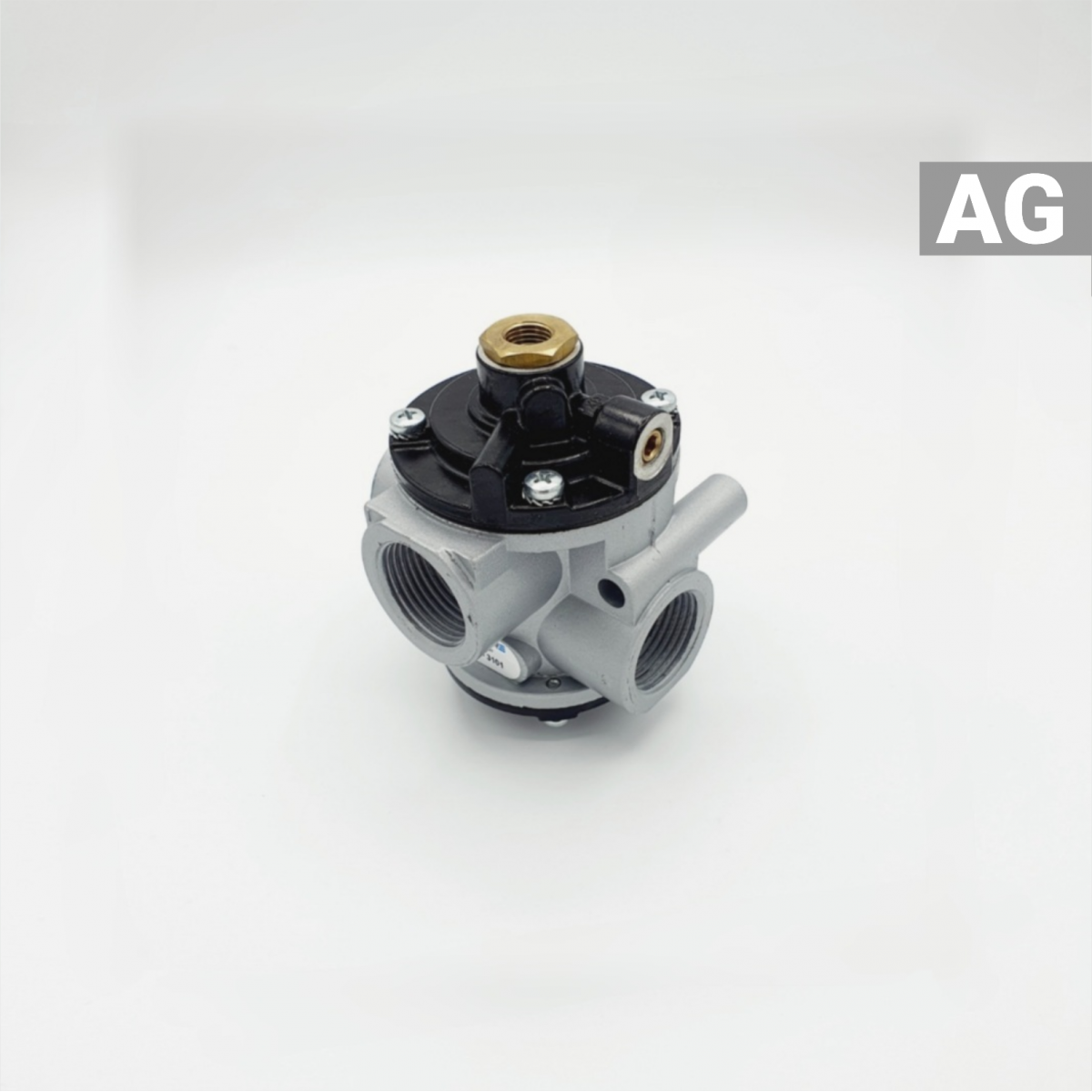

3/2-way vacuum valve / pneumatically actuated - 1
3/2-way vacuum valve / pneumatically actuated - 1

    3/2-way vacuum valve / pneumatically actuated

    €49.95
    Tax excluded
    AG-3071
    help_outlineAsk about product
    3/2-way vacuum valve / pneumatically actuated

    3/2-way vacuum valve / pneumatically actuated

    I accept privacy policy rules

    Construction:
    • 3/2-way
    Threaded connection:
    • 1/8"
    • 1/4"
    • 1/2"
    • 3/4"
    • 1"
    • 1 1/2"
    Position:
    • 1x NC - closed, 1x NO - open
    Manual override:
    • Screw
    Activity:
    • Pneum. actuated
    Function:
    • monostable / mech. Spring
    Last items in stock

    Ambient temperature max.: 50°C

    Medium temperature: -5°C to +60°C

    Medium: non-lubricated air

    Servo valve for vacuum

    AG-3071

    Specific References

    Reference:
    AG-3071
    Threaded connection: 1/8"; Function 2: 1x NC - closed, 1x NO - open; Manual override: Screw; Construction: 3/2-way; Activity: Pneum. actuated; Function: monostable / mech. Spring;
    €49.95
    Reference:
    AG-3073
    Threaded connection: 1/4"; Function 2: 1x NC - closed, 1x NO - open; Manual override: Screw; Construction: 3/2-way; Activity: Pneum. actuated; Function: monostable / mech. Spring;
    €79.37
    Reference:
    AG-3081
    Threaded connection: 1/2"; Function 2: 1x NC - closed, 1x NO - open; Manual override: Screw; Construction: 3/2-way; Activity: Pneum. actuated; Function: monostable / mech. Spring;
    €112.55
    Reference:
    AG-3091
    Threaded connection: 3/4"; Function 2: 1x NC - closed, 1x NO - open; Manual override: Screw; Construction: 3/2-way; Activity: Pneum. actuated; Function: monostable / mech. Spring;
    €144.46
    Reference:
    AG-3101
    Threaded connection: 1"; Function 2: 1x NC - closed, 1x NO - open; Manual override: Screw; Construction: 3/2-way; Activity: Pneum. actuated; Function: monostable / mech. Spring;
    €211.55
    Reference:
    AG-3111
    Threaded connection: 1 1/2"; Function 2: 1x NC - closed, 1x NO - open; Manual override: Screw; Construction: 3/2-way; Activity: Pneum. actuated; Function: monostable / mech. Spring;
    €713.81
