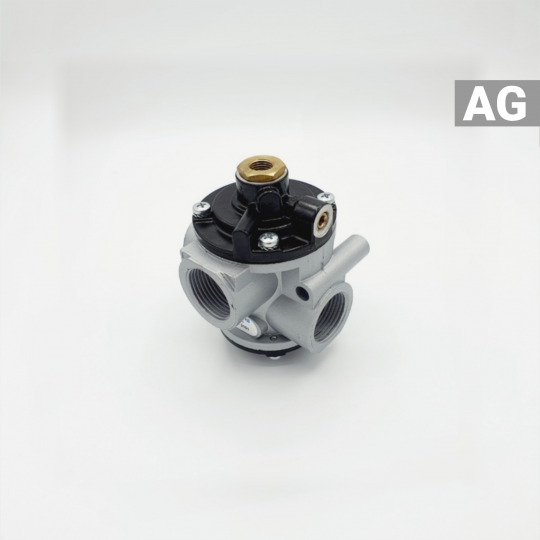

3/2-way vacuum valve G 1" monostable / MF - 1
3/2-way vacuum valve G 1" monostable / MF - 1

    3/2-way vacuum valve G 1" monostable / MF

    €211.55
    Tax excluded
    AG-3101
    help_outlineAsk about product
    3/2-way vacuum valve G 1" monostable / MF

    3/2-way vacuum valve G 1" monostable / MF

    I accept privacy policy rules

    Construction:
    • 3/2-way
    Threaded connection:
    • 1"
    Position:
    • 1x NC - closed, 1x NO - open
    Manual override:
    • Screw
    Standard:
    • Standard
    Activity:
    • Pneum. actuated
    Function:
    • monostable / mech. Spring
    Series:
    • AG
    Not in stock - delivery times can be found on the "Delivery" page

    Reference: AG-3101

    Ambient temperature max.: 50°C

    Medium temperature: -5°C to +60°C

    Medium: filtered, but non-lubricated air

    Usage: Pneumatically actuated valve for vacuum

    AG-3101

    Specific References

    Reference:
    AG-3101
    Threaded connection: 1"; Function 2: 1x NC - closed, 1x NO - open; Manual override: Screw; Standard: Standard; Construction: 3/2-way; Activity: Pneum. actuated; Function: monostable / mech. Spring; Series: AG;
    €211.55
