3/2-way vacuum valve G 1/4" monostable / MF / EXT - 1
3/2-way vacuum valve G 1/4" monostable / MF / EXT - 1

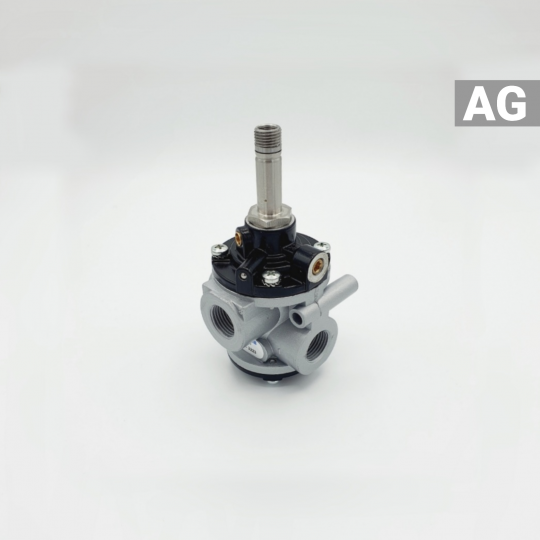

    3/2-way vacuum valve G 1/4" monostable / MF / EXT

    €121.80
    Tax excluded
    AG-3009

    Coil fastening nut NOT included!

    help_outlineAsk about product
    3/2-way vacuum valve G 1/4" monostable / MF / EXT

    3/2-way vacuum valve G 1/4" monostable / MF / EXT

    I accept privacy policy rules

    Construction:
    • 3/2-way with external control air
    Threaded connection:
    • 1/4"
    Position:
    • 1x NC - closed, 1x NO - open
    Manual override:
    • Screw
    Standard:
    • Standard
    Activity:
    • electr. actuated
    Function:
    • monostable / mech. Spring
    Series:
    • AG
    Not in stock - delivery times can be found on the "Delivery" page

    Reference: AG-3009

    Ambient temperature max.: 50°C

    Medium temperature: -5°C to +60°C

    Medium: filtered, but non-lubricated air

    Usage: Solenoid valve for vacuum

    AG-3009

    Specific References

    Reference:
    AG-3009
    Threaded connection: 1/4"; Function 2: 1x NC - closed, 1x NO - open; Manual override: Screw; Standard: Standard; Construction: 3/2-way with external control air; Activity: electr. actuated; Function: monostable / mech. Spring; Series: AG;
    €121.80
