3/2-way vacuum valve G 3/4" monostable / LF / NC - 1
3/2-way vacuum valve G 3/4" monostable / LF / NC - 1

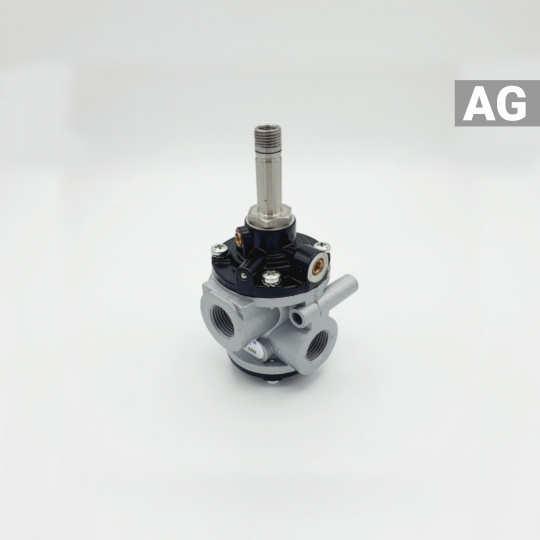

    3/2-way vacuum valve G 3/4" monostable / LF / NC

    €250.26
    Tax excluded
    AG-3232

    Coil fastening nut NOT included!

    help_outlineAsk about product
    3/2-way vacuum valve G 3/4" monostable / LF / NC

    3/2-way vacuum valve G 3/4" monostable / LF / NC

    I accept privacy policy rules

    Construction:
    • 3/2-way
    Threaded connection:
    • 3/4"
    Position:
    • NC - closed
    Manual override:
    • Screw
    Standard:
    • Standard
    Activity:
    • electr. actuated
    Function:
    • monostable / air spring
    Series:
    • AG
    Not in stock - delivery times can be found on the "Delivery" page

    Reference: AG-3232

    Ambient temperature max.: 50°C

    Medium temperature: -5°C to +60°C

    Medium: filtered, but non-lubricated air

    Usage: Solenoid valve for vacuum

    AG-3232

    Specific References

    Reference:
    AG-3232
    Threaded connection: 3/4"; Function 2: NC - closed; Manual override: Screw; Standard: Standard; Construction: 3/2-way; Activity: electr. actuated; Function: monostable / air spring; Series: AG;
    €250.26
