2/2-way pilot valve U2 NC / 108 NL - 1
2/2-way pilot valve U2 NC / 108 NL - 1

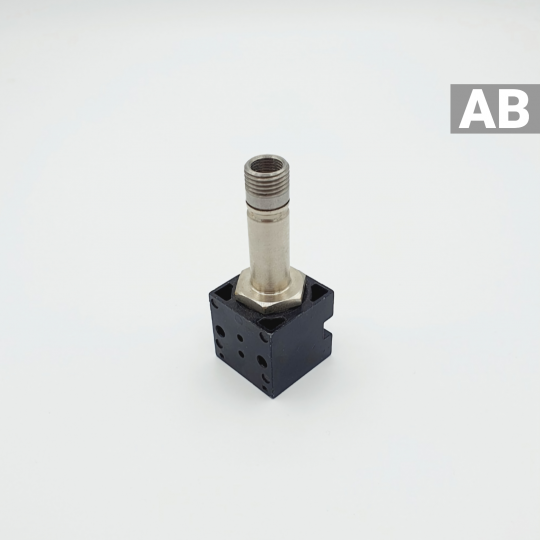

    2/2-way pilot valve U2 NC / 108 NL

    €48.70
    Tax excluded
    AB-0824

    Coil fastening nut NOT included!

    help_outlineAsk about product
    2/2-way pilot valve U2 NC / 108 NL

    2/2-way pilot valve U2 NC / 108 NL

    I accept privacy policy rules

    Construction:
    • 2/2-way
    Threaded connection:
    • 1/4"
    Flow:
    • 108 NL/min
    Position:
    • NC - closed
    Standard:
    • Standard
    Activity:
    • electr. actuated
    Series:
    • AB
    Not in stock - delivery times can be found on the "Delivery" page

    Temperature range: -10°C to +50°C

    Medium: Filtered air 50μm, with or without lubrication, max. +95°C.

    Materials: Housing: Die-cast zamak and brass, Gaskets: Nitrile rubber

    Pressure range: 0 to 30 bar

    AB-0824

    Specific References

    Reference:
    AB-0824
    Threaded connection: 1/4"; Flow: 108 NL/min; Function 2: NC - closed; Standard: Standard; Construction: 2/2-way; Activity: electr. actuated; Series: AB;
    €48.70
