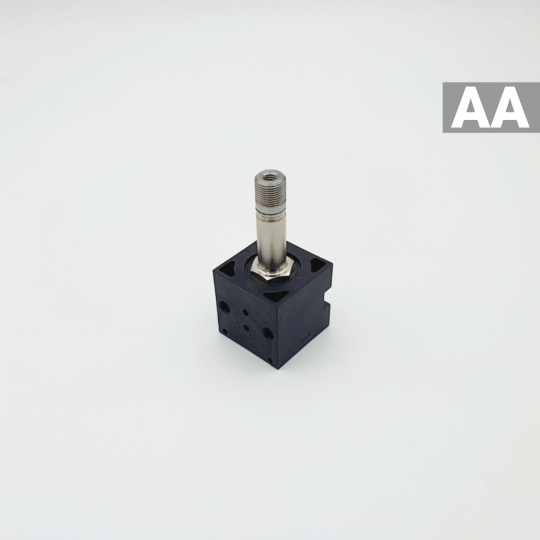

3/2-way pilot valve U1 / 30 NL - 1
3/2-way pilot valve U1 / 30 NL - 1

    3/2-way pilot valve U1 / 30 NL

    €59.96
    Tax excluded
    AA-0233

    Coil fastening nut NOT included!

    help_outlineAsk about product
    3/2-way pilot valve U1 / 30 NL

    3/2-way pilot valve U1 / 30 NL

    I accept privacy policy rules

    Construction:
    • 3/2-way
    Threaded connection:
    • M5
    Flow:
    • 70 NL/min
    Position:
    • NO - open
    Standard:
    • Standard
    Activity:
    • electr. actuated
    Series:
    • AA
    Not in stock - delivery times can be found on the "Delivery" page

    Temperature range: -10°C to +50°C

    Medium: Filtered air 50μm, with or without lubrication, max. +95°C.

    Materials: Housing: Die-cast zamak and brass, Gaskets: Nitrile rubber

    Pressure range: 3 to 10 bar

    AA-0233

    Specific References

    Reference:
    AA-0233
    Threaded connection: M5; Flow: 70 NL/min; Function 2: NO - open; Standard: Standard; Construction: 3/2-way; Activity: electr. actuated; Series: AA;
