5/3-way solenoid valve G 1/4" M.B. / EXT / 1660 NL - 1
5/3-way solenoid valve G 1/4" M.B. / EXT / 1660 NL - 1

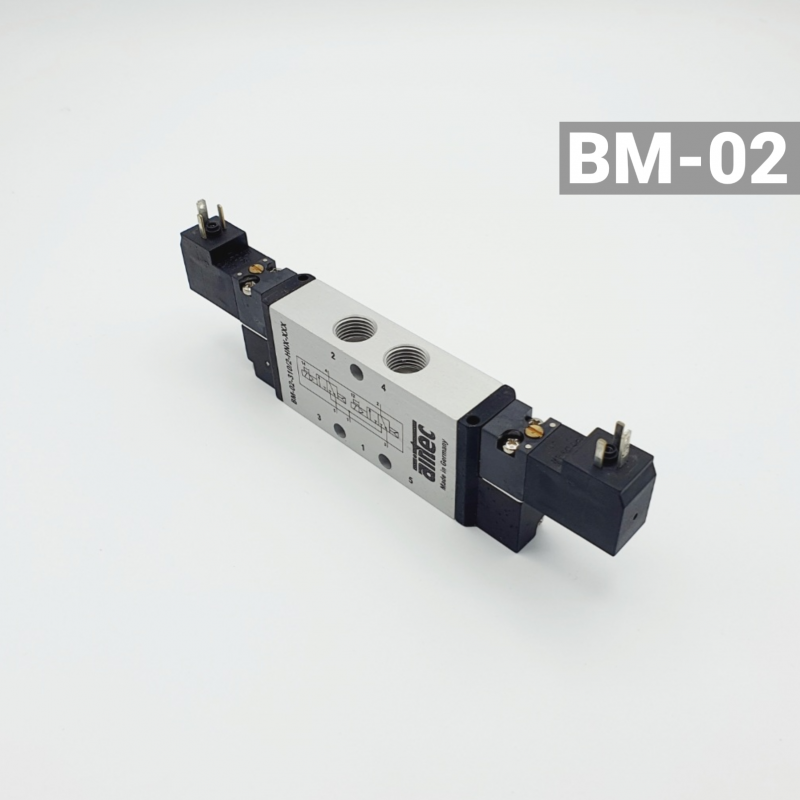

    5/3-way solenoid valve G 1/4" M.B. / EXT / 1660 NL

    €123.04
    Tax excluded
    BME-02-534-HNR-462
    help_outlineAsk about product
    5/3-way solenoid valve G 1/4" M.B. / EXT / 1660 NL

    5/3-way solenoid valve G 1/4" M.B. / EXT / 1660 NL

    I accept privacy policy rules

    Construction:
    • 5/3-way with external control air
    Threaded connection:
    • 1/4"
    Control voltage:
    • 24 VDC, 1 W
    Flow:
    • 1660 NL/min
    Standard:
    • Standard
    Activity:
    • electr. actuated
    Function:
    • Ventilation in the middle position
    Series:
    • BM-02
    Not in stock - delivery times can be found on the "Delivery" page

    Temperature range: -10°C to +60°C

    Medium: Filtered, oil-free and dried compressed air according to ISO 85731:2010, class 7:2:4 - free of aggressive components. Deviating from this, the pressure dive point must be at least 10°C below the lowest ambient temperature occurring.

    Materials: Housing: anodized aluminum, plastic, seals: NBR and PU, internal parts: aluminum, Ms and plastic

    3D-Model
    BME-02-534-HNR-462

    Specific References

    Reference:
    BME-02-534-HNR-462
    Threaded connection: 1/4"; Flow: 1660 NL/min; Standard: Standard; Control voltage: 24 VDC, 1 W; Construction: 5/3-way with external control air; Activity: electr. actuated; Function: Ventilation in the middle position; Series: BM-02;
    €123.04
