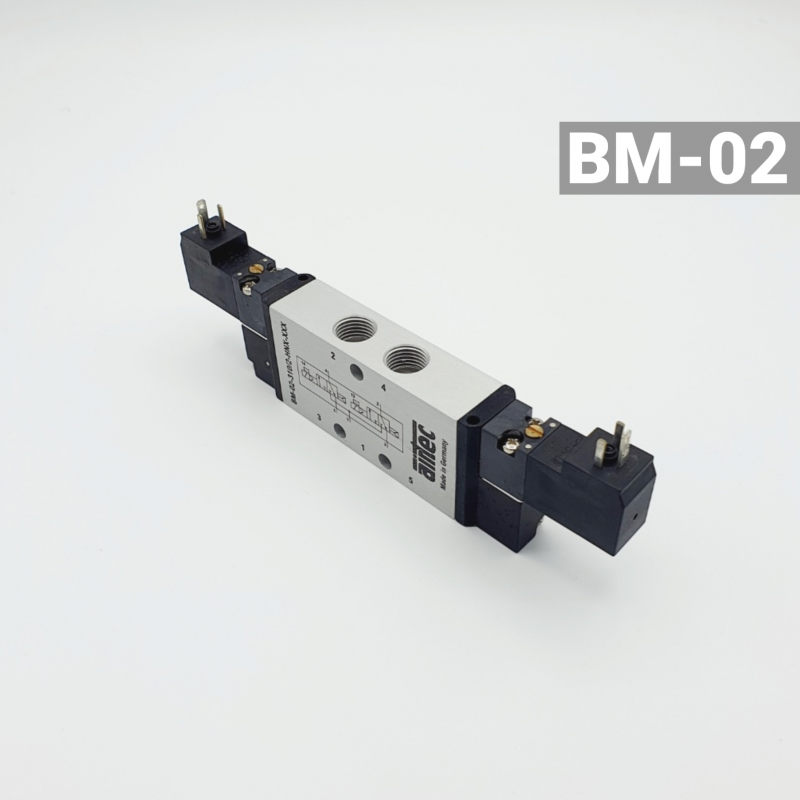

2x3/2-way solenoid valve G 1/4" monostable / LF / NO /1030 NL - 1

    2x3/2-way solenoid valve G 1/4" monostable / LF / NO /1030 NL

    €97.87
    Tax excluded
    BM-02-312/2-HNR-461
    help_outlineAsk about product
    2x3/2-way solenoid valve G 1/4" monostable / LF / NO /1030 NL

    2x3/2-way solenoid valve G 1/4" monostable / LF / NO /1030 NL

    I accept privacy policy rules

    Construction:
    • 2x3/2-way
    Threaded connection:
    • 1/4"
    Control voltage:
    • 12 VDC, 1 W
    • 24 VDC, 1 W
    Flow:
    • 1030 NL/min
    Position:
    • NO - open
    Standard:
    • Standard
    Activity:
    • electr. actuated
    Function:
    • monostable / air spring
    Series:
    • BM-02
    Not in stock - delivery times can be found on the "Delivery" page

    Temperature range: -10°C to +60°C

    Medium: Filtered, oil-free and dried compressed air according to ISO 85731:2010, class 7:2:4 - free of aggressive components. Deviating from this, the pressure dive point must be at least 10°C below the lowest ambient temperature occurring.

    Materials: Housing: anodized aluminum, plastic, seals: NBR and PU, internal parts: aluminum, Ms and plastic

    BM-02-312/2-HNR-461

    Specific References

    Reference:
    BM-02-312/2-HNR-461
    Threaded connection: 1/4"; Flow: 1030 NL/min; Function 2: NO - open; Standard: Standard; Control voltage: 12 VDC, 1 W; Construction: 2x3/2-way; Activity: electr. actuated; Function: monostable / air spring; Series: BM-02;
    €97.87
    Reference:
    BM-02-312/2-HNR-462
    Threaded connection: 1/4"; Flow: 1030 NL/min; Function 2: NO - open; Standard: Standard; Control voltage: 24 VDC, 1 W; Construction: 2x3/2-way; Activity: electr. actuated; Function: monostable / air spring; Series: BM-02;
    €92.03
