2x3/2-way solenoid valve G 1/4" monostable / LF / NC /1050 NL - 1
2x3/2-way solenoid valve G 1/4" monostable / LF / NC /1050 NL - 1

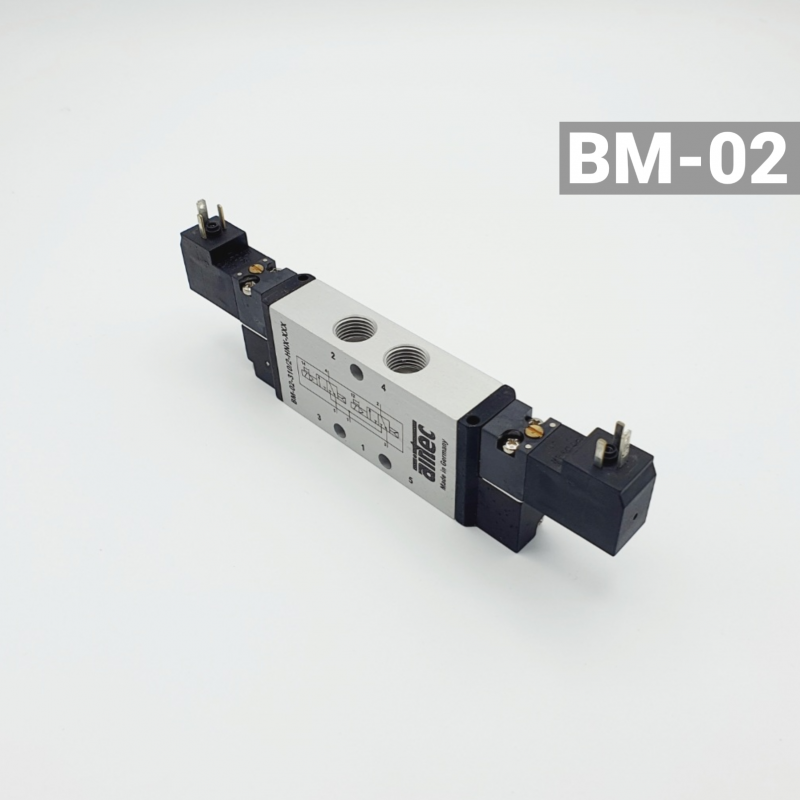

    2x3/2-way solenoid valve G 1/4" monostable / LF / NC /1050 NL

    €92.03
    Tax excluded
    BM-02-310/2-HNR-462
    help_outlineAsk about product
    2x3/2-way solenoid valve G 1/4" monostable / LF / NC /1050 NL

    2x3/2-way solenoid valve G 1/4" monostable / LF / NC /1050 NL

    I accept privacy policy rules

    Construction:
    • 2x3/2-way
    Threaded connection:
    • 1/4"
    Control voltage:
    • 24 VDC, 1 W
    Flow:
    • 1050 NL/min
    Position:
    • NC - closed
    Standard:
    • Standard
    Activity:
    • electr. actuated
    Function:
    • monostable / air spring
    Series:
    • BM-02
    Not in stock - delivery times can be found on the "Delivery" page

    Temperature range: -10°C to +60°C

    Medium: Filtered, oil-free and dried compressed air according to ISO 85731:2010, class 7:2:4 - free of aggressive components. Deviating from this, the pressure dive point must be at least 10°C below the lowest ambient temperature occurring.

    Materials: Housing: anodized aluminum, plastic, seals: NBR and PU, internal parts: aluminum, Ms and plastic

    3D-Model
    BM-02-310/2-HNR-462

    Specific References

    Reference:
    BM-02-310/2-HNR-462
    Threaded connection: 1/4"; Flow: 1050 NL/min; Function 2: NC - closed; Standard: Standard; Control voltage: 24 VDC, 1 W; Construction: 2x3/2-way; Activity: electr. actuated; Function: monostable / air spring; Series: BM-02;
    €92.03
