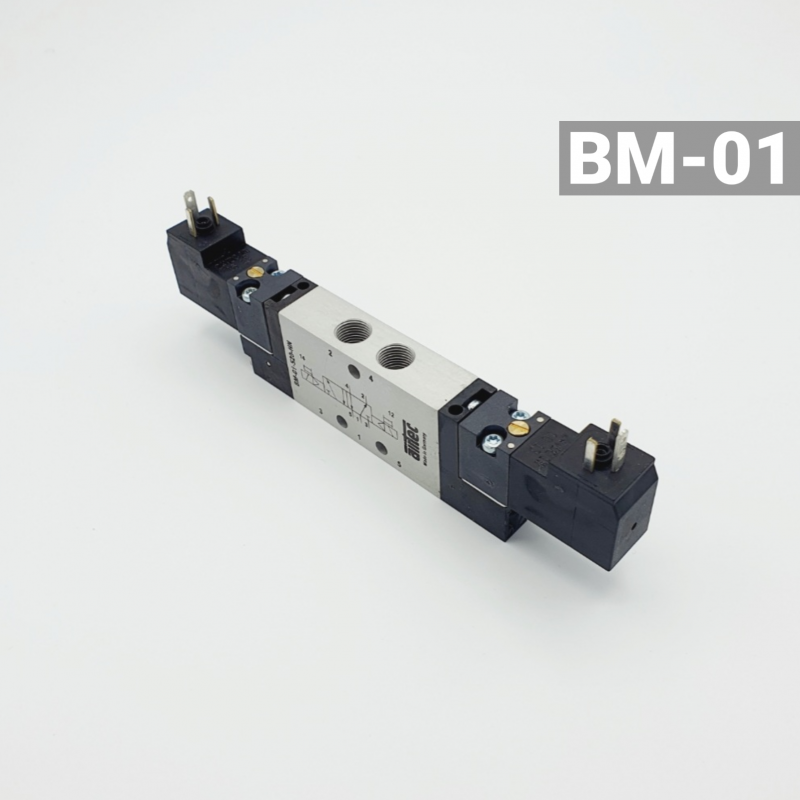

5/3-way solenoid valve G 1/8" M.G. / 690 NL - 1
5/3-way solenoid valve G 1/8" M.G. / 690 NL - 1

    5/3-way solenoid valve G 1/8" M.G. / 690 NL

    €82.77
    Tax excluded
    BM-01-530-HNR-462
    help_outlineAsk about product
    5/3-way solenoid valve G 1/8" M.G. / 690 NL

    5/3-way solenoid valve G 1/8" M.G. / 690 NL

    I accept privacy policy rules

    Construction:
    • 5/3-way
    Threaded connection:
    • 1/8"
    Control voltage:
    • 24 VDC, 1 W
    Flow:
    • 690 NL/min
    Standard:
    • Standard
    Activity:
    • electr. actuated
    Function:
    • Middle position closed
    Series:
    • BM-01
    Last items in stock

    Temperature range: -10°C to +60°C

    Medium: Filtered, oil-free and dried compressed air according to ISO 85731:2010, class 7:2:4 - free of aggressive components. Deviating from this, the pressure dive point must be at least 10°C below the lowest ambient temperature occurring.

    Materials: Housing: anodized aluminum, plastic, seals: NBR and PU, internal parts: aluminum, Ms and plastic

    3D-Model
    BM-01-530-HNR-462

    Specific References

    Reference:
    BM-01-530-HNR-462
    Threaded connection: 1/8"; Flow: 690 NL/min; Standard: Standard; Control voltage: 24 VDC, 1 W; Construction: 5/3-way; Activity: electr. actuated; Function: Middle position closed; Series: BM-01;
    €82.77
