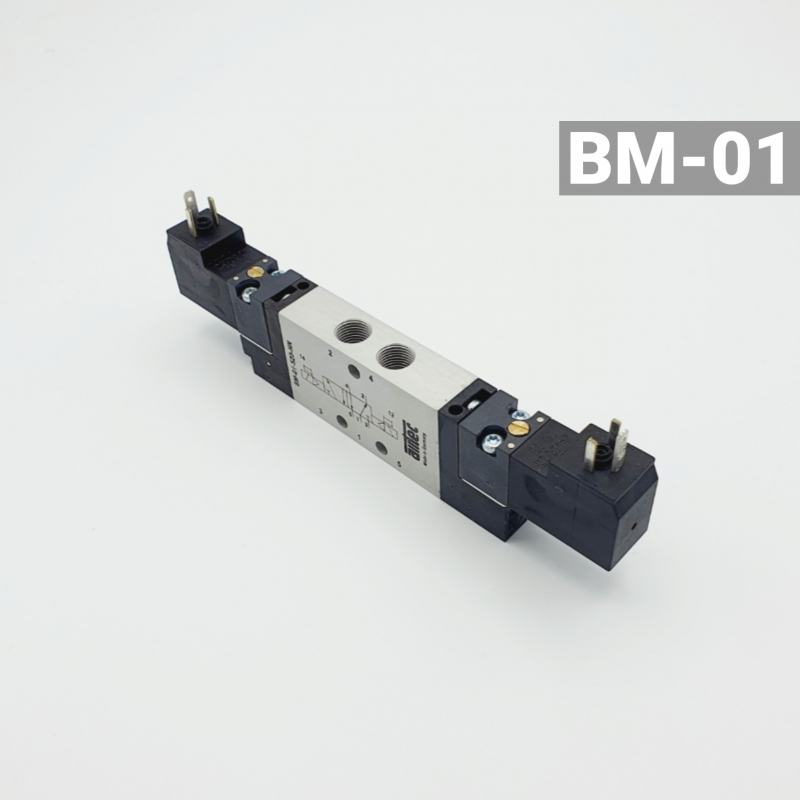

5/2-way solenoid valve G 1/8" bistable / 790 NL - 1
5/2-way solenoid valve G 1/8" bistable / 790 NL - 1

    5/2-way solenoid valve G 1/8" bistable / 790 NL

    €81.19
    Tax excluded
    BM-01-520-HNR-452
    help_outlineAsk about product
    5/2-way solenoid valve G 1/8" bistable / 790 NL

    5/2-way solenoid valve G 1/8" bistable / 790 NL

    I accept privacy policy rules

    Construction:
    • 5/2-way
    Threaded connection:
    • 1/8"
    Control voltage:
    • 12 VDC, 1 W
    • 24 VDC, 1 W
    • 24 VAC
    • 230 VAC
    Flow:
    • 790 NL/min
    Standard:
    • Standard
    Activity:
    • electr. actuated
    Function:
    • bistable
    Series:
    • BM-01
    Not in stock - delivery times can be found on the "Delivery" page

    Temperature range: -10°C to +60°C

    Medium: Filtered, oil-free and dried compressed air according to ISO 85731:2010, class 7:2:4 - free of aggressive components. Deviating from this, the pressure dive point must be at least 10°C below the lowest ambient temperature occurring.

    Materials: Housing: anodized aluminum, plastic, seals: NBR and PU, internal parts: aluminum, Ms and plastic

    3D-Model
    BM-01-520-HNR-452

    Specific References

    Reference:
    BM-01-520-HNR-452
    Threaded connection: 1/8"; Flow: 790 NL/min; Standard: Standard; Control voltage: 24 VAC; Construction: 5/2-way; Activity: electr. actuated; Function: bistable; Series: BM-01;
    €81.19
    Reference:
    BM-01-520-HNR-457
    Threaded connection: 1/8"; Flow: 790 NL/min; Standard: Standard; Control voltage: 230 VAC; Construction: 5/2-way; Activity: electr. actuated; Function: bistable; Series: BM-01;
    €81.19
    Reference:
    BM-01-520-HNR-461
    Threaded connection: 1/8"; Flow: 790 NL/min; Standard: Standard; Control voltage: 12 VDC, 1 W; Construction: 5/2-way; Activity: electr. actuated; Function: bistable; Series: BM-01;
    €81.19
    Reference:
    BM-01-520-HNR-462
    Threaded connection: 1/8"; Flow: 790 NL/min; Standard: Standard; Control voltage: 24 VDC, 1 W; Construction: 5/2-way; Activity: electr. actuated; Function: bistable; Series: BM-01;
    €66.63
