5/3-way solenoid valve G 1/2" M.E. / 3300 NL - 1

5/3-way solenoid valve G 1/2" M.E. / 3300 NL - 3

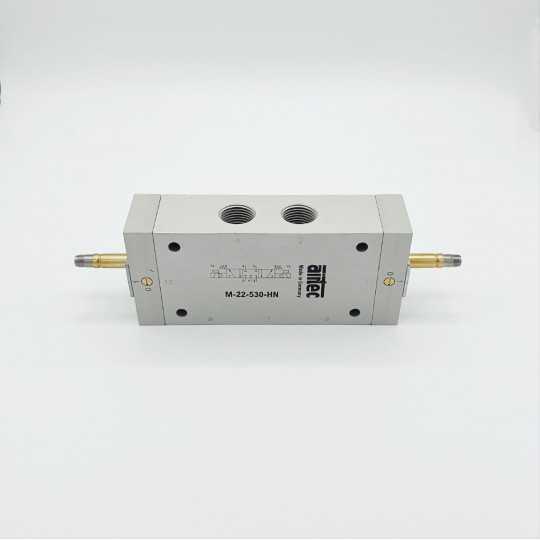

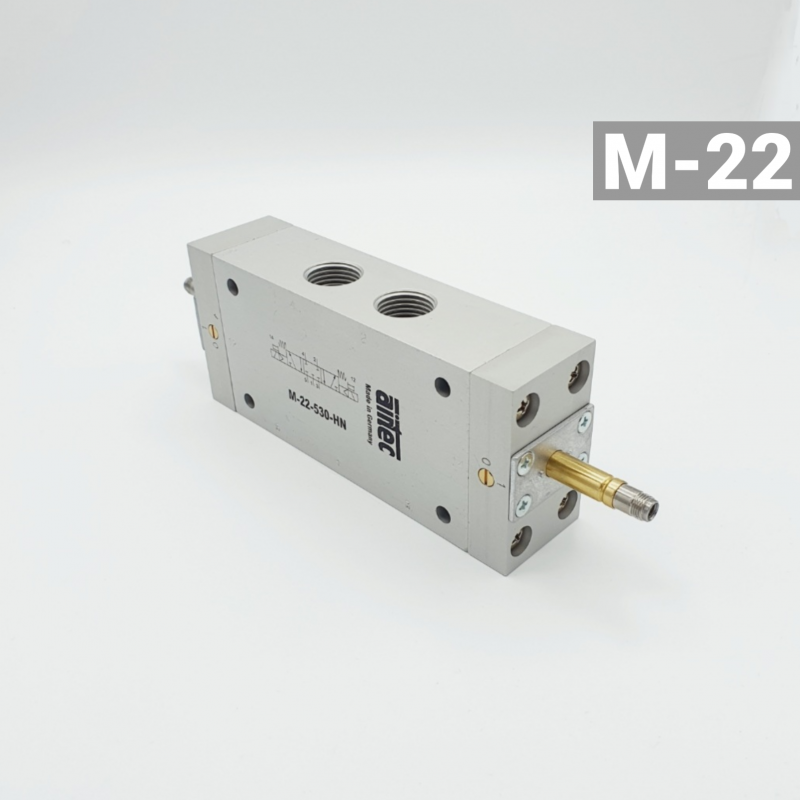

5/3-way solenoid valve G 1/2" M.E. / 3300 NL

€269.29

Tax excluded

Reference: M-22-533-HN-500

Coil fastening nut included!

Ask about product

Nominal diameter: 14mm

Temperature range: -10°C to +70°C

Medium: Filtered, oil-free and dried compressed air according to ISO 85731:2010, class 7:2:4 - free of aggressive components. Deviating from this, the pressure dive point must be at least 10°C below the lowest ambient temperature occurring.

Materials: Housing: anodized aluminum, seals: NBR and POM, internal parts: aluminum, stainless steel and Ms

Reference M-22-533-HN-500

Specific References

Reference:
M-22-533-HN-500

Threaded connection: 1/2"; Flow: 3300 NL/min; Standard: Standard; Construction: 5/3-way; Activity: electr. actuated; Function: Central position vented; Series: M-22;

€269.29
