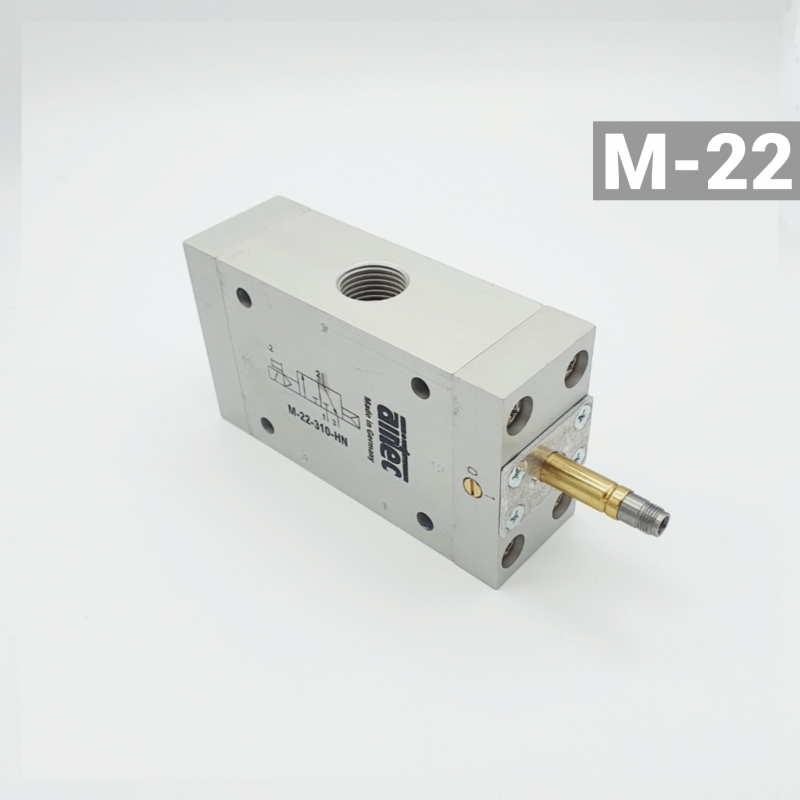

3/2-way solenoid valve G 1/2" monostable / MF / NC / 3300 NL - 1
3/2-way solenoid valve G 1/2" monostable / MF / NC / 3300 NL - 1

    3/2-way solenoid valve G 1/2" monostable / MF / NC / 3300 NL

    €176.23
    Tax excluded
    M-22-311-HN-500

    Coil fastening nut included!

    help_outlineAsk about product
    3/2-way solenoid valve G 1/2" monostable / MF / NC / 3300 NL

    3/2-way solenoid valve G 1/2" monostable / MF / NC / 3300 NL

    I accept privacy policy rules

    Construction:
    • 3/2-way
    Threaded connection:
    • 1/2"
    Flow:
    • 3300 NL/min
    Position:
    • NC - closed
    Standard:
    • Standard
    Activity:
    • electr. actuated
    Function:
    • monostable / mech. Spring
    Series:
    • M-22
    Not in stock - delivery times can be found on the "Delivery" page

    Nominal diameter: 14mm

    Temperature range: -10°C to +70°C

    Medium: Filtered, oil-free and dried compressed air according to ISO 85731:2010, class 7:2:4 - free of aggressive components. Deviating from this, the pressure dive point must be at least 10°C below the lowest ambient temperature occurring.

    Materials: Housing: anodized aluminum, seals: NBR and POM, internal parts: aluminum, stainless steel and Ms

    3D-Model
    M-22-311-HN-500

    Specific References

    Reference:
    M-22-311-HN-500
    Threaded connection: 1/2"; Flow: 3300 NL/min; Function 2: NC - closed; Standard: Standard; Construction: 3/2-way; Activity: electr. actuated; Function: monostable / mech. Spring; Series: M-22;
    €176.23
