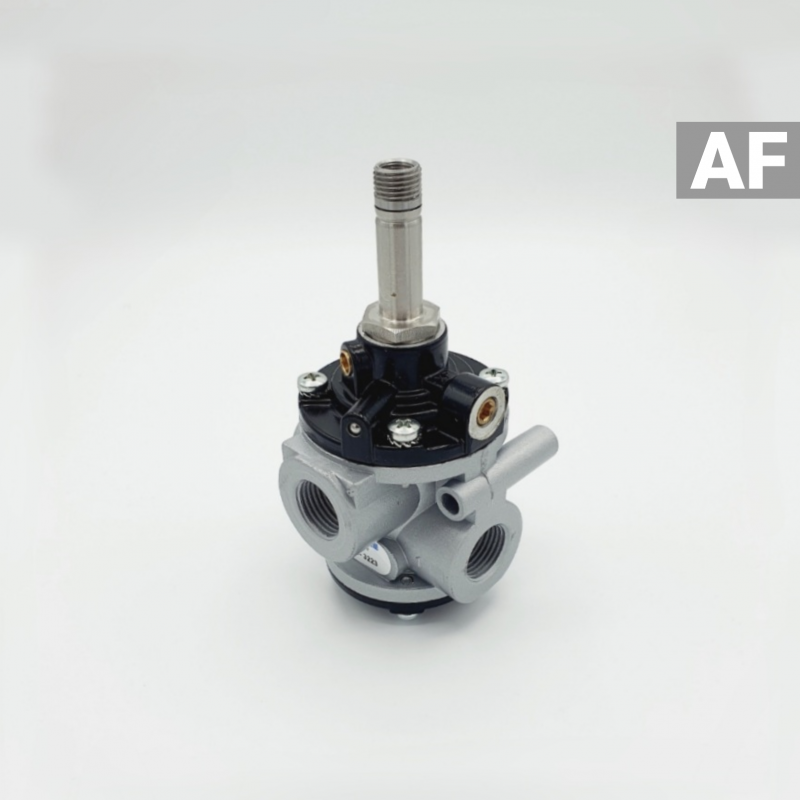

    3/2-way solenoid valve G 3/4" monostable / MF / NC / 6500 NL

    €157.36
    Tax excluded
    AF-2540

    Coil fastening nut NOT included!

    Construction:
    • 3/2-way
    Threaded connection:
    • 3/4"
    Flow:
    • 6500 NL/min
    Position:
    • NC - closed
    Manual override:
    • Screw
    Standard:
    • Standard
    Activity:
    • electr. actuated
    Function:
    • pneum.-mech. spring
    Series:
    • AF
    Not in stock - delivery times can be found on the "Delivery" page

    Temperature range: max. +50°C

    Medium: Filtered air 50μm, with or without lubrication, -5°C to +60°C.

    Materials: Membrane: Vulkollan

    Pressure range: max. 10 bar

    AF-2540

    Specific References

    Reference:
    AF-2540
    Threaded connection: 3/4"; Flow: 6500 NL/min; Function 2: NC - closed; Manual override: Screw; Standard: Standard; Construction: 3/2-way; Activity: electr. actuated; Function: pneum.-mech. spring; Series: AF;
    €157.36
