5/2-way solenoid valve G 1/2" bistable / 4600 NL - 1
5/2-way solenoid valve G 1/2" bistable / 4600 NL - 1

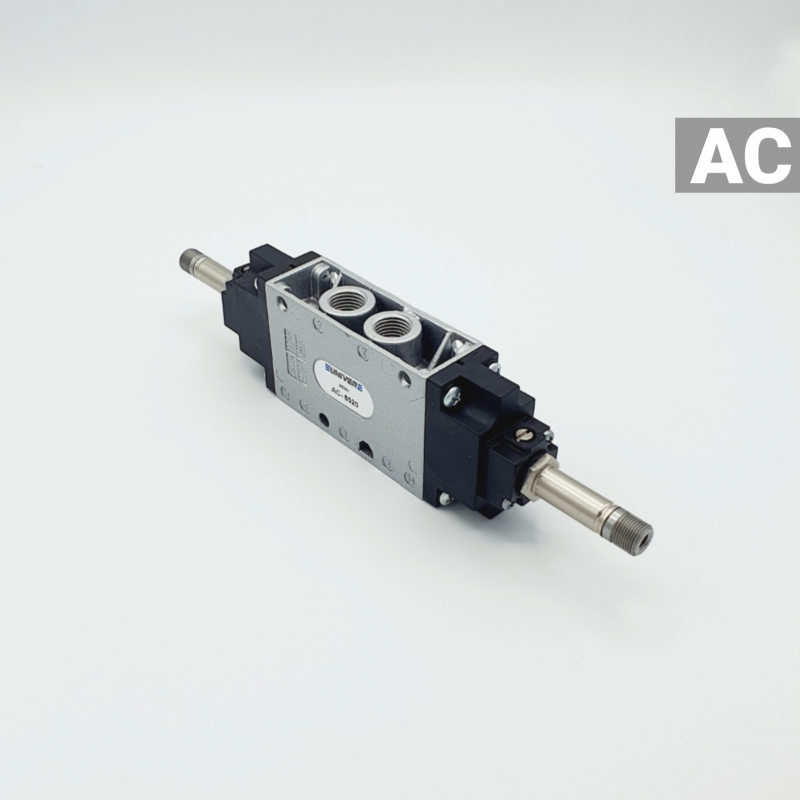

    5/2-way solenoid valve G 1/2" bistable / 4600 NL

    €233.48
    Tax excluded
    AC-9520

    Coil fastening nut NOT included!

    help_outlineAsk about product
    5/2-way solenoid valve G 1/2" bistable / 4600 NL

    5/2-way solenoid valve G 1/2" bistable / 4600 NL

    I accept privacy policy rules

    Construction:
    • 5/2-way
    Threaded connection:
    • 1/2"
    Flow:
    • 4600 NL/min
    Manual override:
    • Screw
    Standard:
    • Standard
    Activity:
    • electr. actuated
    Function:
    • bistable
    Series:
    • AC
    Last items in stock

    Temperature range: -10°C to +45°C

    Medium: Filtered air 50μm, with or without lubrication.

    Materials: Housing: die-cast zamak - die-cast aluminum, seals: nitrile rubber and vulkollan

    Return: with pneumo-mechanical spring (combination of air spring and mech. Spring)

    Pressure range: 1 to 10 bar

    AC-9520

    Specific References

    Reference:
    AC-9520
    Threaded connection: 1/2"; Flow: 4600 NL/min; Manual override: Screw; Standard: Standard; Construction: 5/2-way; Activity: electr. actuated; Function: bistable; Series: AC;
    €233.48
