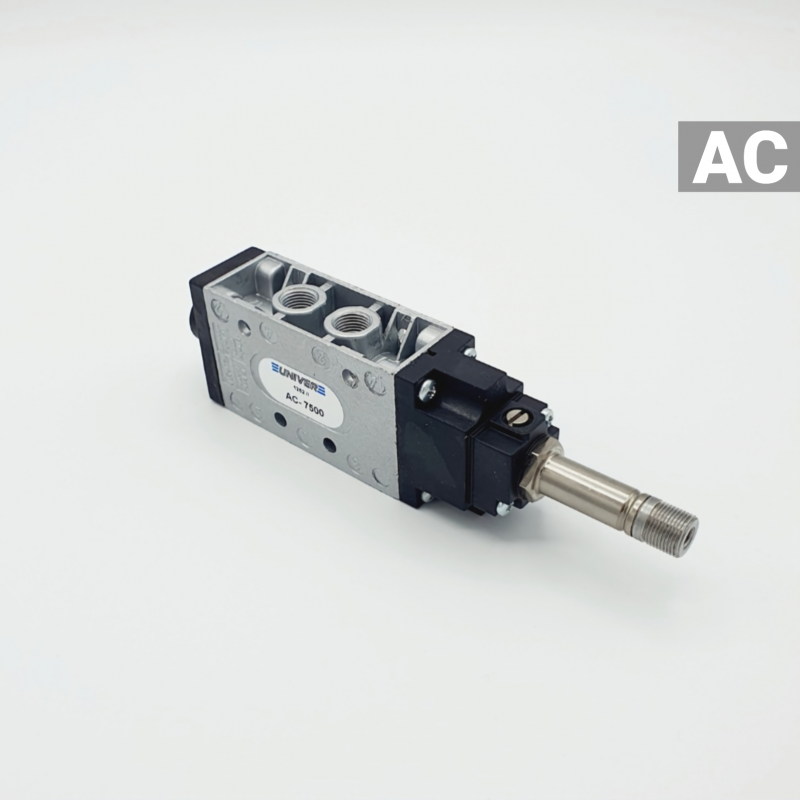

    5/2-way solenoid valve G 1/8" monostable / LF+MF / 1080 NL

    €80.87
    Tax excluded
    AC-7500

    Coil fastening nut NOT included!

    help_outlineAsk about product
    5/2-way solenoid valve G 1/8" monostable / LF+MF / 1080 NL

    5/2-way solenoid valve G 1/8" monostable / LF+MF / 1080 NL

    I accept privacy policy rules

    Construction:
    • 5/2-way
    Threaded connection:
    • 1/8"
    Flow:
    • 1080 NL/min
    Manual override:
    • Screw
    Standard:
    • Standard
    Activity:
    • electr. actuated
    Function:
    • pneum.-mech. spring
    Series:
    • AC
    In stock - delivery times can be found on the "Delivery" page

    Temperature range: -10°C to +45°C

    Medium: Filtered air 50μm, with or without lubrication.

    Materials: Housing: die-cast zamak - die-cast aluminum, seals: nitrile rubber and vulkollan

    Return: with pneumo-mechanical spring (combination of air spring and mech. Spring)

    Pressure range: 2 to 10 bar

    AC-7500

    Specific References

    Reference:
    AC-7500
    Threaded connection: 1/8"; Flow: 1080 NL/min; Manual override: Screw; Standard: Standard; Construction: 5/2-way; Activity: electr. actuated; Function: pneum.-mech. spring; Series: AC;
