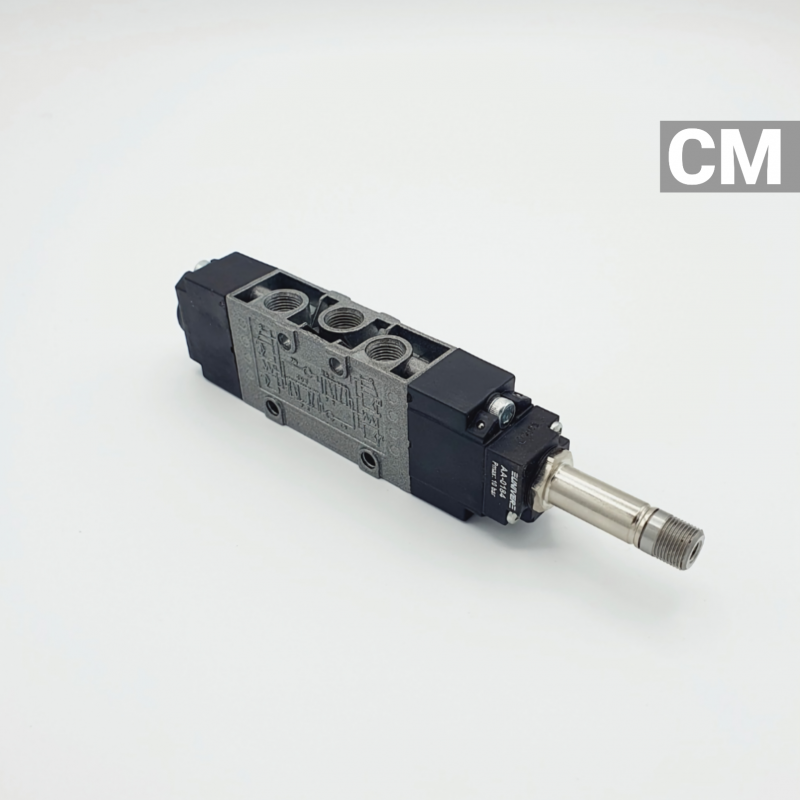

5/2-way solenoid valve G 1/4" monostable / LF / 1480 NL - 1
5/2-way solenoid valve G 1/4" monostable / LF / 1480 NL - 1

    5/2-way solenoid valve G 1/4" monostable / LF / 1480 NL

    €81.49
    Tax excluded
    CM-9600

    Coil fastening nut NOT included!

    help_outlineAsk about product
    5/2-way solenoid valve G 1/4" monostable / LF / 1480 NL

    5/2-way solenoid valve G 1/4" monostable / LF / 1480 NL

    I accept privacy policy rules

    Construction:
    • 5/2-way
    Threaded connection:
    • 1/4"
    Flow:
    • 1480 NL/min
    Manual override:
    • Screw
    Standard:
    • Standard
    Activity:
    • electr. actuated
    Function:
    • monostable / air spring
    Series:
    • CM
    Not in stock - delivery times can be found on the "Delivery" page

    Temperature range: -10°C to +50°C

    Medium: Filtered air 50μm, with or without lubrication, max. +50°C.

    Materials: Housing: Die-cast Zamak, Gaskets: Nitrile rubber

    Pressure range: 2 to 10 bar

    CM-9600

    Specific References

    Reference:
    CM-9600
    Threaded connection: 1/4"; Flow: 1480 NL/min; Manual override: Screw; Standard: Standard; Construction: 5/2-way; Activity: electr. actuated; Function: monostable / air spring; Series: CM;
    €81.49
