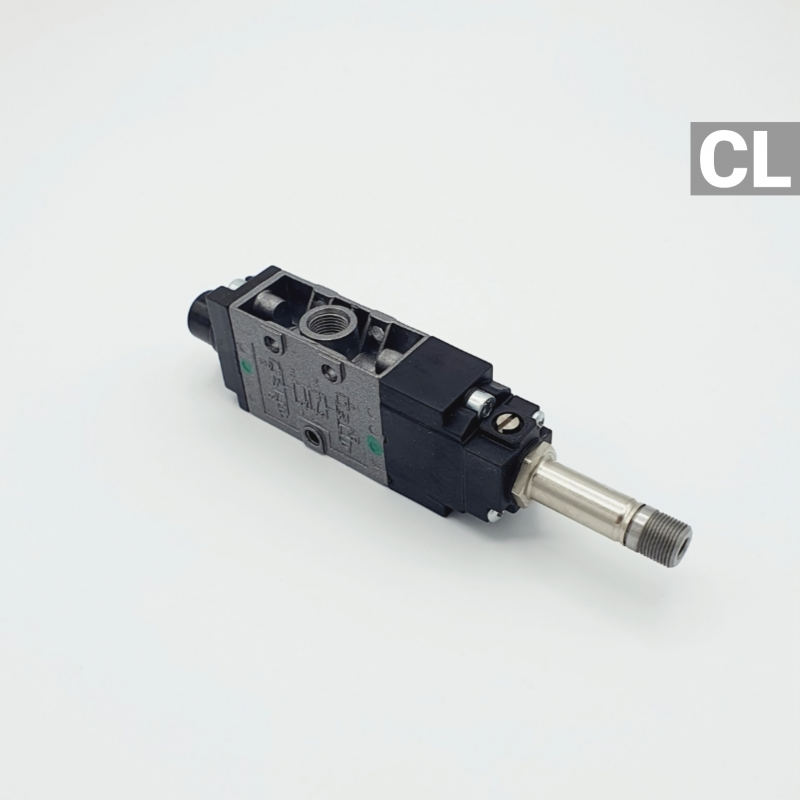

3/2-way solenoid valve G 1/4" monostable / MF / NC / 1480 NL - 1

    3/2-way solenoid valve G 1/4" monostable / MF / NC / 1480 NL

    €76.27
    Tax excluded
    CL-9302A

    Coil fastening nut NOT included!

    help_outlineAsk about product
    3/2-way solenoid valve G 1/4" monostable / MF / NC / 1480 NL

    3/2-way solenoid valve G 1/4" monostable / MF / NC / 1480 NL

    I accept privacy policy rules

    Construction:
    • 3/2-way
    Threaded connection:
    • 1/4"
    Flow:
    • 1480 NL/min
    Position:
    • NC - closed
    Manual override:
    • Screw
    Standard:
    • Standard
    Activity:
    • electr. actuated
    Function:
    • monostable / mech. Spring
    Series:
    • CL
    In stock - delivery times can be found on the "Delivery" page

    Temperature range: -10°C to +50°C

    Medium: Filtered air 50μm, with or without lubrication, max. +50°C.

    Materials: Housing: Die-cast Zamak, Gaskets: Nitrile rubber

    Pressure range: 2 to 10 bar

    CL-9302A

    Specific References

    Reference:
    CL-9302A
    Threaded connection: 1/4"; Flow: 1480 NL/min; Function 2: NC - closed; Manual override: Screw; Standard: Standard; Construction: 3/2-way; Activity: electr. actuated; Function: monostable / mech. Spring; Series: CL;
    €76.27
