5/3-way solenoid valve G 1/8" M.E. / 680 NL - 1

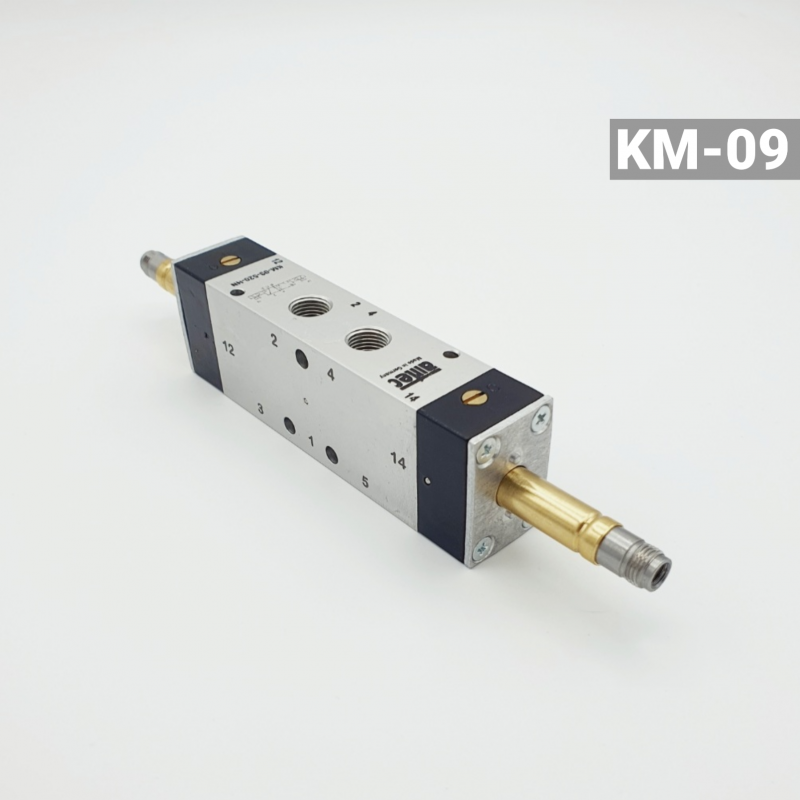

    5/3-way solenoid valve G 1/8" M.E. / 680 NL

    €96.25
    Tax excluded
    KM-09-533-HN-570

    Coil fastening nut included!

    help_outlineAsk about product
    5/3-way solenoid valve G 1/8" M.E. / 680 NL

    5/3-way solenoid valve G 1/8" M.E. / 680 NL

    I accept privacy policy rules

    Construction:
    • 5/3-way
    Threaded connection:
    • 1/8"
    Flow:
    • 680 NL/min
    Standard:
    • Standard
    Activity:
    • electr. actuated
    Function:
    • Central position vented
    Series:
    • KM-09
    Last items in stock

    Nominal diameter: 6mm

    Temperature range: -10°C to +70°C

    Medium: Filtered, oil-free and dried compressed air according to ISO 85731:2010, class 7:2:4 - free of aggressive components. Deviating from this, the pressure dive point must be at least 10°C below the lowest ambient temperature occurring.

    Materials: Housing: anodized aluminum, plastic, seals: NBR and POM, internal parts: aluminum, stainless steel and Ms

    Protection class: IP 65 according to EN 60529

    KM-09-533-HN-570

    Specific References

    Reference:
    KM-09-533-HN-570
    Threaded connection: 1/8"; Flow: 680 NL/min; Standard: Standard; Construction: 5/3-way; Activity: electr. actuated; Function: Central position vented; Series: KM-09;
