5/2-Wege Magnetventil G 1/8" monostabil / MF / EXT / 800 NL - 1
5/2-Wege Magnetventil G 1/8" monostabil / MF / EXT / 800 NL - 1

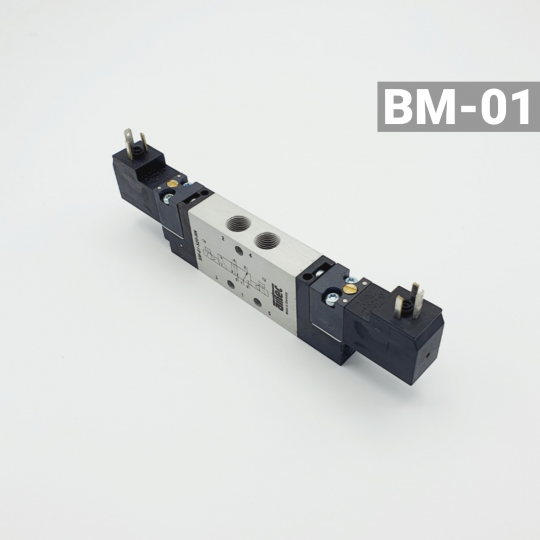

    5/2-Wege Magnetventil G 1/8" monostabil / MF / EXT / 800 NL

    €66.49
    Tax excluded
    BME-01-511-HNR-452
    help_outlineAsk about product
    5/2-Wege Magnetventil G 1/8" monostabil / MF / EXT / 800 NL

    5/2-Wege Magnetventil G 1/8" monostabil / MF / EXT / 800 NL

    I accept privacy policy rules

    Construction:
    • 5/2-way with external control air
    Threaded connection:
    • 1/8"
    Control voltage:
    • 24 VDC, 1 W
    • 24 VAC
    • 230 VAC
    Flow:
    • 800 NL/min
    Standard:
    • Standard
    Activity:
    • electr. actuated
    Function:
    • monostable / mech. Spring
    Series:
    • BM-01
    Not in stock - delivery times can be found on the "Delivery" page

    Temperature range: -10°C to +60°C

    Reference: BME-01-511-HNR-452, BME-01-511-HNR-462, BME-01-511-HNR-457

    Medium: Filtered, oil-free and dried compressed air according to ISO 85731:2010, class 7:2:4 - free of aggressive components. Deviating from this, the pressure dive point must be at least 10°C below the lowest ambient temperature occurring.

    Materials: Housing: anodized aluminum, plastic, seals: NBR and PU, internal parts: aluminum, Ms and plastic

    3D-Model
    BME-01-511-HNR-452

    Specific References

    Reference:
    BME-01-511-HNR-452
    Threaded connection: 1/8"; Flow: 800 NL/min; Standard: Standard; Control voltage: 24 VAC; Construction: 5/2-way with external control air; Activity: electr. actuated; Function: monostable / mech. Spring; Series: BM-01;
    €66.49
    Reference:
    BME-01-511-HNR-457
    Threaded connection: 1/8"; Flow: 800 NL/min; Standard: Standard; Control voltage: 230 VAC; Construction: 5/2-way with external control air; Activity: electr. actuated; Function: monostable / mech. Spring; Series: BM-01;
    €66.49
    Reference:
    BME-01-511-HNR-462
    Threaded connection: 1/8"; Flow: 800 NL/min; Standard: Standard; Control voltage: 24 VDC, 1 W; Construction: 5/2-way with external control air; Activity: electr. actuated; Function: monostable / mech. Spring; Series: BM-01;
    €59.21
