5/3-way solenoid valve G 1/4" (L22BB552BG00061) - 1
5/3-way solenoid valve G 1/4" (L22BB552BG00061) - 1

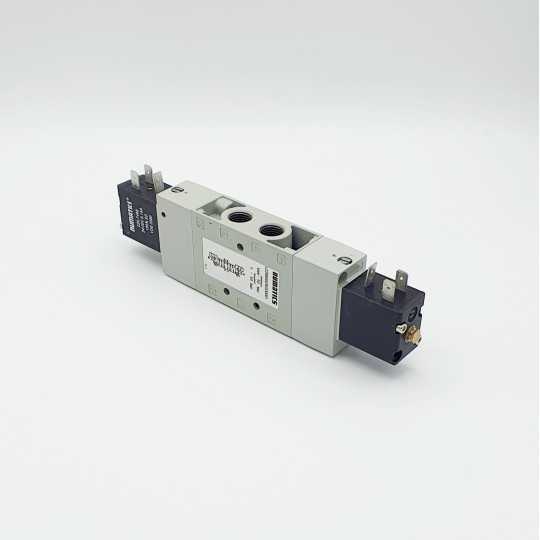

    5/3-way solenoid valve G 1/4" (L22BB552BG00061)

    €311.39
    Tax excluded
    L22BB552BG00061
    help_outlineAsk about product
    5/3-way solenoid valve G 1/4" (L22BB552BG00061)

    5/3-way solenoid valve G 1/4" (L22BB552BG00061)

    I accept privacy policy rules

    Construction:
    • 5/3-way
    Threaded connection:
    • 1/4"
    Control voltage:
    • 24 VDC/ 48 VAC
    Flow:
    • 1700 NL/min
    Standard:
    • Standard
    Activity:
    • electr. actuated
    Function:
    • Central position vented
    Series:
    • L22
    In stock - delivery times can be found on the "Delivery" page

    Reference: L22BB552BG00061
    Medium: Air or neutral gas, filtered, lubricated or unlubricated
    Operating pressure: 1 to 10 bar (with internal pilot control), -0,950 to 15 bar (with external pilot control)
    Ambient temperature: -20°C to +80°C
    Hosuing: Aluminium, anodized, painted grey
    Internal parts: Stainless steel, POM (polyacetal), aluminium
    Static Seals: NBR (nitrile)

    L22BB552BG00061

    Specific References

    Reference:
    L22BB552BG00061
    Threaded connection: 1/4"; Flow: 1700 NL/min; Standard: Standard; Control voltage: 24 VDC/ 48 VAC; Construction: 5/3-way; Activity: electr. actuated; Function: Central position vented; Series: L22;
    €311.39
