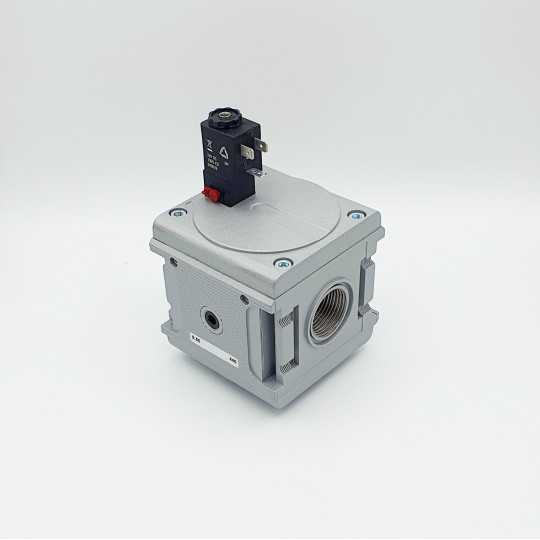

3/2-way valve / BR 5 / G 3/4" / elect. 24VDC - 1

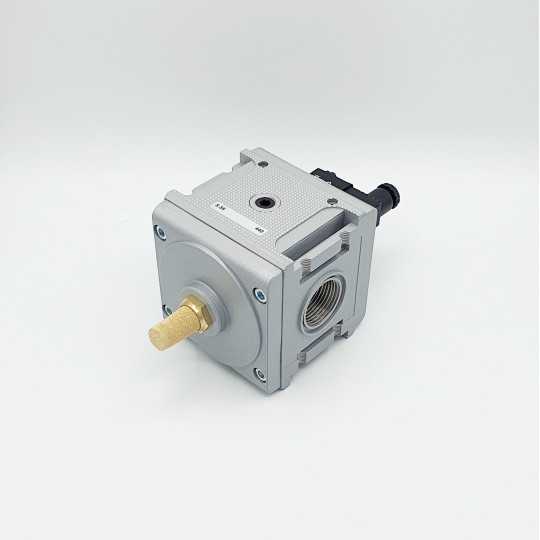

3/2-way valve / BR 5 / G 3/4" / elect. 24VDC - 2
3/2-way valve / BR 5 / G 3/4" / elect. 24VDC - 1
3/2-way valve / BR 5 / G 3/4" / elect. 24VDC - 2

    3/2-way valve / BR 5 / G 3/4" / elect. 24VDC

    €276.32
    Tax excluded
    S.54
    help_outlineAsk about product
    3/2-way valve / BR 5 / G 3/4" / elect. 24VDC

    3/2-way valve / BR 5 / G 3/4" / elect. 24VDC

    I accept privacy policy rules

    Threaded connection:
    • 3/4"
    Material:
    • Aluminium
    Execution:
    • Valve electrically actuated
    Print:
    • 2 - 10 bar
    Control voltage:
    • 24 VDC, 4.2 W
    Size:
    • BG 5
    Series:
    • Multi-Fix Series
    Flow:
    • 12500 NL/min
    Not in stock - delivery times can be found on the "Delivery" page

    Seal type: NBR

    Temperature range: -10°C to +60°C

    Media: lubricated and non-lubricated compressed air, neutral gases

    Inlet pressure: 2 - 10 bar

    S.54

    Specific References

    Reference:
    S.54
    Threaded connection: 3/4"; Material: Aluminium; Version 2: Valve electrically actuated; Size: BG 5; Series: Multi-Fix Series; Print: 2 - 10 bar; Flow: 12500 NL/min; Control voltage: 24 VDC, 4.2 W;
    €276.32
