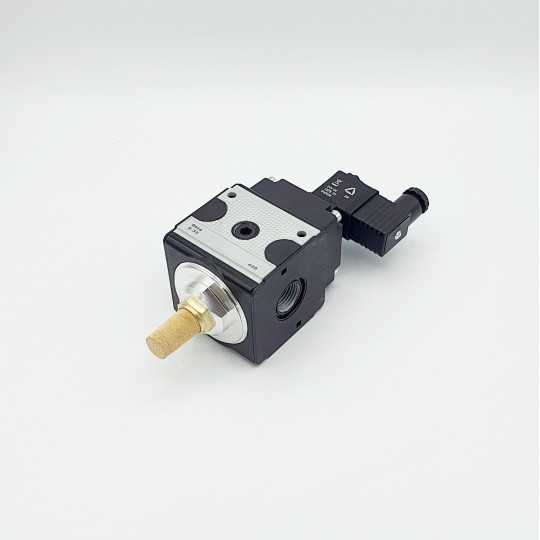

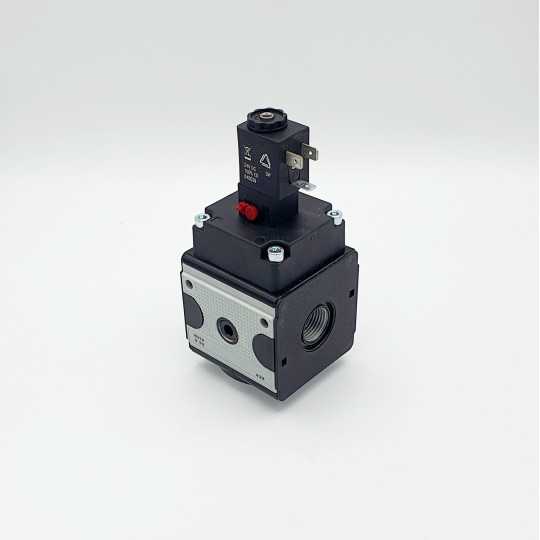

3/2-way valve / BR 3 / G 1/2" / electr. 24VDC / 15bar - 1
3/2-way valve / BR 3 / G 1/2" / electr. 24VDC / 15bar - 2
3/2-way valve / BR 3 / G 1/2" / electr. 24VDC / 15bar - 2

    3/2-way valve / BR 3 / G 1/2" / electr. 24VDC / 15bar

    €307.09
    Tax excluded
    S.33 2-15 BAR
    help_outlineAsk about product
    3/2-way valve / BR 3 / G 1/2" / electr. 24VDC / 15bar

    3/2-way valve / BR 3 / G 1/2" / electr. 24VDC / 15bar

    I accept privacy policy rules

    Threaded connection:
    • 1/2"
    Material:
    • Aluminium
    Execution:
    • Valve electrically actuated
    Print:
    • 2 - 15 bar
    Control voltage:
    • 24 VDC, 4.2 W
    Size:
    • BG 2
    Series:
    • Multi-Fix Series
    Flow:
    • 4000 NL/min
    Not in stock - delivery times can be found on the "Delivery" page

    Seal type: NBR

    Temperature range: -10°C to +60°C

    Media: lubricated and non-lubricated compressed air, neutral gases

    Inlet pressure: 2 - 10 bar

    S.33 2-15 BAR

    Specific References

    Reference:
    S.33 2-15 BAR
    Threaded connection: 1/2"; Material: Aluminium; Version 2: Valve electrically actuated; Size: BG 2; Series: Multi-Fix Series; Print: 2 - 15 bar; Flow: 4000 NL/min; Control voltage: 24 VDC, 4.2 W;
    €307.09
