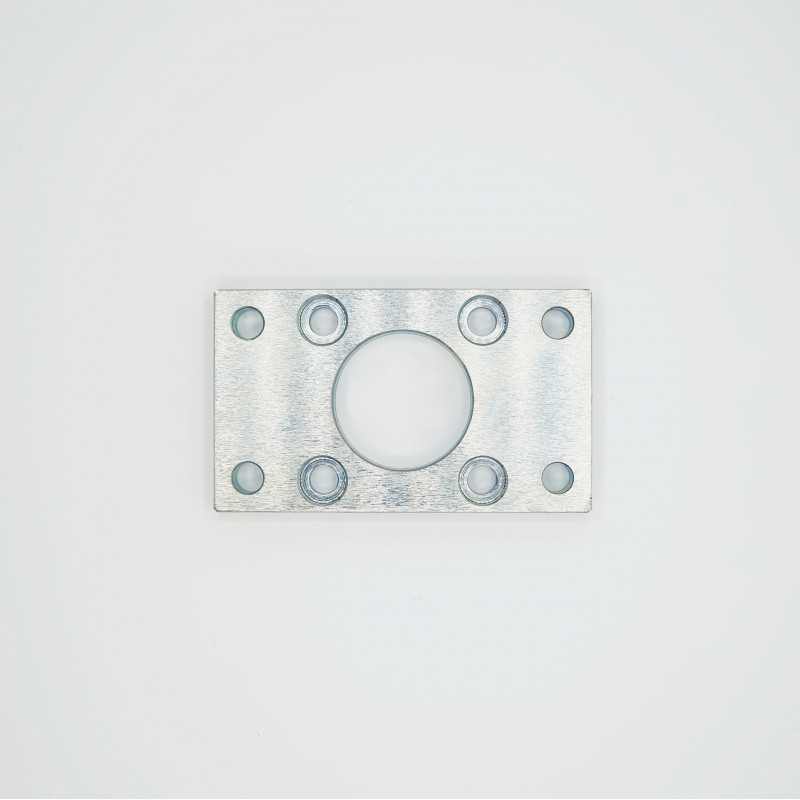

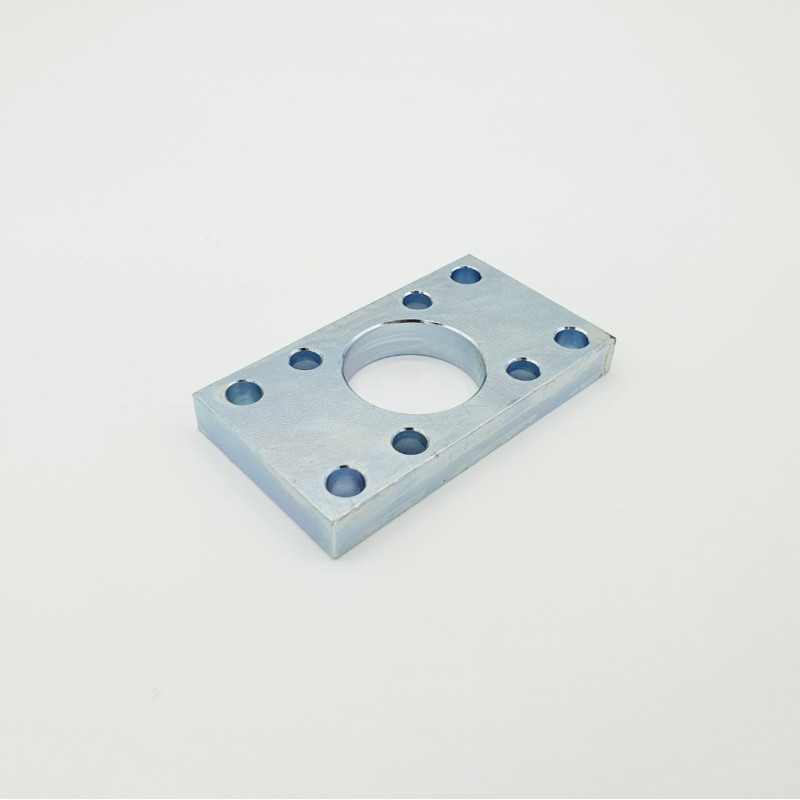

    Flange plate (RP/NXD)

    €14.41
    Tax excluded
    NXB-016-02
    clear

    Our cylinder mountings are available in 2 different versions, the "Standard Series" and the "Multi-serve Series".

    These two series differ mainly in their design, whereby the standard series has a slightly lighter design and the multi-serve variant is more stable. Due to the different manufacturing processes and designs, certain mountings have different dimensions.

    Therefore, it is advisable to NOT mix the two series with each other and to stay with one series, as certain parts of various series cannot be combined with each other!

    Information
    help_outlineAsk about product
    Flange plate (RP/NXD)

    Flange plate (RP/NXD)

    I accept privacy policy rules

    Design:
    • Flange plate
    Piston diameter [mm]:
    • 16
    • 20
    • 25
    • 32
    • 40
    • 50
    • 63
    • 80
    • 100
    Material:
    • Galvanized steel
    Not in stock - delivery times can be found on the "Delivery" page

    Flange plate (RP/NXD)
    NXB-016-02

    Specific References

    Reference:
    NXB-016-02
    Material: Galvanized steel; Design: Flange plate; Piston diameter: 16;
    €14.41
    Reference:
    NXB-020-02
    Material: Galvanized steel; Design: Flange plate; Piston diameter: 20;
    €14.41
    Reference:
    NXB-025-02
    Material: Galvanized steel; Design: Flange plate; Piston diameter: 25;
    €14.97
    Reference:
    NXB-032-02
    Material: Galvanized steel; Design: Flange plate; Piston diameter: 32;
    €15.77
    Reference:
    NXB-040-02
    Material: Galvanized steel; Design: Flange plate; Piston diameter: 40;
    €18.14
    Reference:
    NXB-050-02
    Material: Galvanized steel; Design: Flange plate; Piston diameter: 50;
    €26.94
    Reference:
    NXB-063-02
    Material: Galvanized steel; Design: Flange plate; Piston diameter: 63;
    €37.54
    Reference:
    NXB-080-02
    Material: Galvanized steel; Design: Flange plate; Piston diameter: 80;
    €49.95
    Reference:
    NXB-100-02
    Material: Galvanized steel; Design: Flange plate; Piston diameter: 100;
    €56.87
