3/2-way valve G 1/4" monostable / MF / NC-NO / 1480 NL - 1
3/2-way valve G 1/4" monostable / MF / NC-NO / 1480 NL - 1

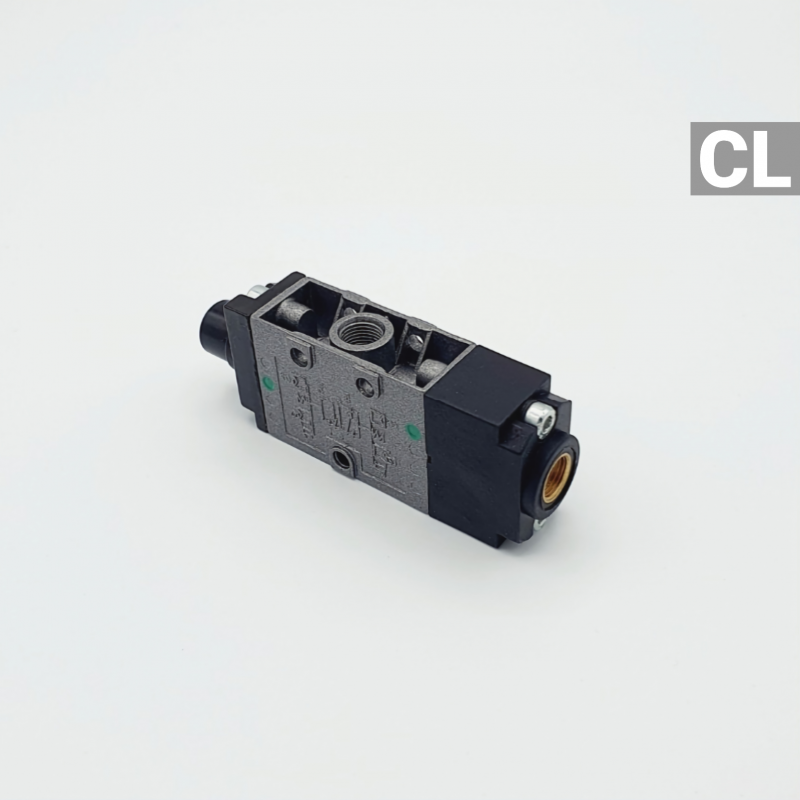

    3/2-way valve G 1/4" monostable / MF / NC-NO / 1480 NL

    €53.84
    Tax excluded
    CL-9200A
    help_outlineAsk about product
    3/2-way valve G 1/4" monostable / MF / NC-NO / 1480 NL

    3/2-way valve G 1/4" monostable / MF / NC-NO / 1480 NL

    I accept privacy policy rules

    Construction:
    • 3/2-way
    Threaded connection:
    • 1/4"
    Flow:
    • 1480 NL/min
    Position:
    • NC - closed
    Standard:
    • Standard
    Activity:
    • Pneum. actuated
    Function:
    • monostable / mech. Spring
    Series:
    • CL
    In stock - delivery times can be found on the "Delivery" page

    Temperature range: -10°C to +45°C

    Medium: industrial or dried compressed air, neutral gases, oiled or non-lubricated. Medium temperature: max. +50°C

    Materials: Housing: Die-cast Zamak, Gaskets: Nitrile rubber

    CL-9200A

    Specific References

    Reference:
    CL-9200A
    Threaded connection: 1/4"; Flow: 1480 NL/min; Function 2: NC - closed; Standard: Standard; Construction: 3/2-way; Activity: Pneum. actuated; Function: monostable / mech. Spring; Series: CL;
    €53.84
