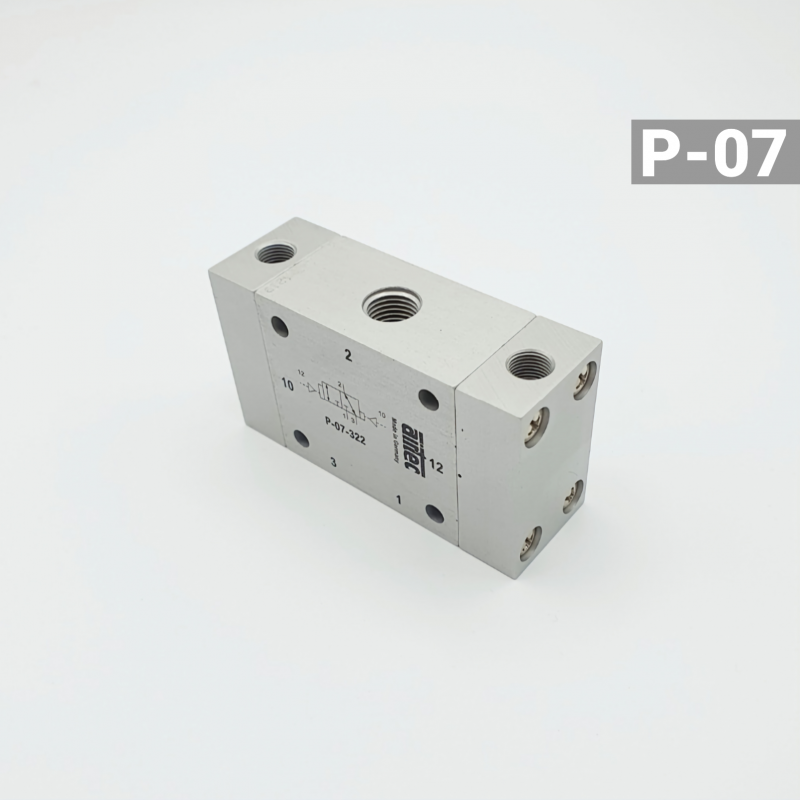

3/2-way valve G 1/4" monostable / LF / 1580 NL - 1
3/2-way valve G 1/4" monostable / LF / 1580 NL - 1

    3/2-way valve G 1/4" monostable / LF / 1580 NL

    €54.50
    Tax excluded
    P-07-310
    help_outlineAsk about product
    3/2-way valve G 1/4" monostable / LF / 1580 NL

    3/2-way valve G 1/4" monostable / LF / 1580 NL

    I accept privacy policy rules

    Construction:
    • 3/2-way
    Threaded connection:
    • 1/4"
    Flow:
    • 1580 NL/min
    Position:
    • NC - closed
    Standard:
    • Standard
    Activity:
    • Pneum. actuated
    Function:
    • monostable / air spring
    Series:
    • P-07
    Not in stock - delivery times can be found on the "Delivery" page

    Nominal diameter: 9mm

    Temperature range: -10°C to +70°C

    Medium: Filtered, oil-free and dried compressed air according to ISO 85731:2010, class 7:2:4 - free of aggressive components. Deviating from this, the pressure dive point must be at least 10°C below the lowest ambient temperature occurring.

    Materials: Housing: anodized aluminum, plastic, seals: NBR and POM, internal parts: aluminum, stainless steel and Ms

    3D-Model
    P-07-310

    Specific References

    Reference:
    P-07-310
    Threaded connection: 1/4"; Flow: 1580 NL/min; Function 2: NC - closed; Standard: Standard; Construction: 3/2-way; Activity: Pneum. actuated; Function: monostable / air spring; Series: P-07;
    €54.50

    Data sheets / 3D-models

    Valves
    P-07-310
    3D model downloadable as .stp file
