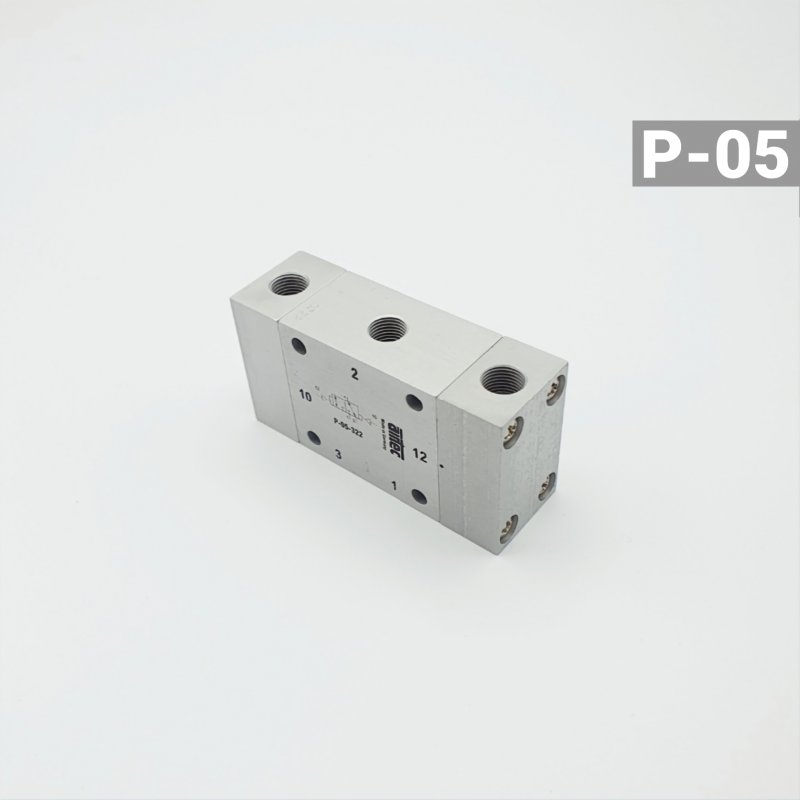

5/3-way valve G 1/8" M.E. / 650 NL - 1
5/3-way valve G 1/8" M.E. / 650 NL - 1

    5/3-way valve G 1/8" M.E. / 650 NL

    €68.72
    Tax excluded
    P-05-533
    help_outlineAsk about product
    5/3-way valve G 1/8" M.E. / 650 NL

    5/3-way valve G 1/8" M.E. / 650 NL

    I accept privacy policy rules

    Construction:
    • 5/3-way
    Threaded connection:
    • 1/8"
    Flow:
    • 650 NL/min
    Standard:
    • Standard
    Activity:
    • Pneum. actuated
    Function:
    • Central position vented
    Series:
    • P-05
    Not in stock - delivery times can be found on the "Delivery" page

    Nominal diameter: 6mm

    Temperature range: -10°C to +70°C

    Medium: Filtered, oil-free and dried compressed air according to ISO 85731:2010, class 7:2:4 - free of aggressive components. Deviating from this, the pressure dive point must be at least 10°C below the lowest ambient temperature occurring.

    Materials: Housing: anodized aluminum, plastic, seals: NBR and POM, internal parts: aluminum, stainless steel and Ms

    3D-Model
    P-05-533

    Specific References

    Reference:
    P-05-533
    Threaded connection: 1/8"; Flow: 650 NL/min; Standard: Standard; Construction: 5/3-way; Activity: Pneum. actuated; Function: Central position vented; Series: P-05;
    €68.72

    Data sheets / 3D-models

    Valves
    P-05-533
    3D model downloadable as .stp file
