3/2-way valve G M5 bistable / 160 NL - 1
3/2-way valve G M5 bistable / 160 NL - 1

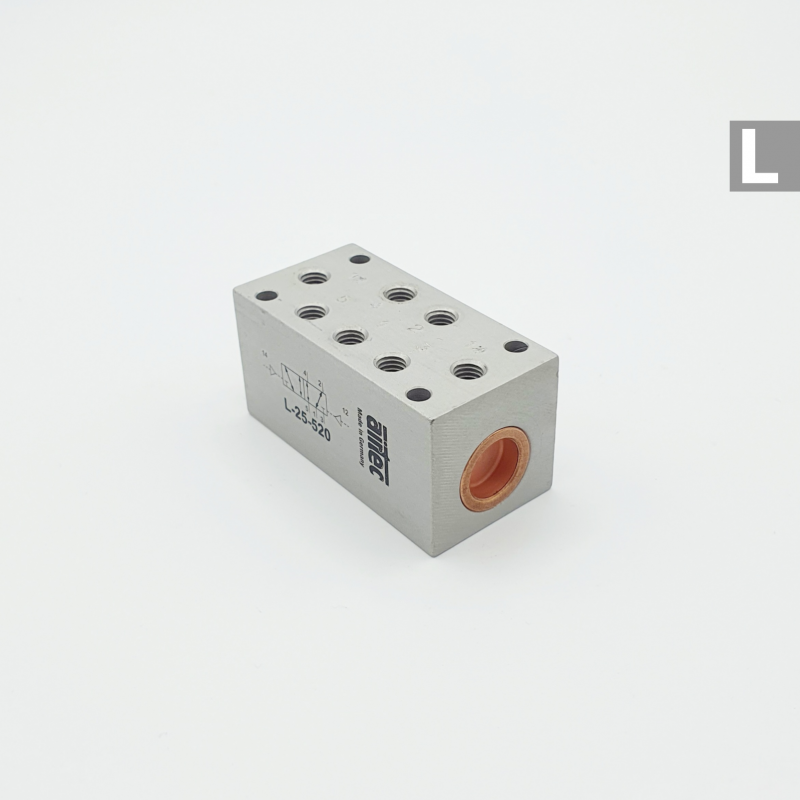

    3/2-way valve G M5 bistable / 160 NL

    €44.56
    Tax excluded
    L-25-320
    help_outlineAsk about product
    3/2-way valve G M5 bistable / 160 NL

    3/2-way valve G M5 bistable / 160 NL

    I accept privacy policy rules

    Construction:
    • 3/2-way
    Threaded connection:
    • M5
    Flow:
    • 160 NL/min
    Position:
    • NC - closed
    Standard:
    • Standard
    Activity:
    • Pneum. actuated
    Function:
    • bistable
    Series:
    • L
    Last items in stock

    Nominal diameter: 3.2 mm

    Temperature range: -10°C to +70°C

    Medium: Filtered, oil-free and dried compressed air according to ISO 85731:2010, class 7:2:4 - free of aggressive components. Deviating from this, the pressure dive point must be at least 10°C below the lowest ambient temperature occurring.

    Materials: Housing: anodized aluminum, plastic, seals: NBR and POM, internal parts: aluminum, stainless steel and Ms

    3D-Model
    L-25-320

    Specific References

    Reference:
    L-25-320
    Threaded connection: M5; Flow: 160 NL/min; Function 2: NC - closed; Standard: Standard; Construction: 3/2-way; Activity: Pneum. actuated; Function: bistable; Series: L;
    €44.56

    Data sheets / 3D-models

    Valves
    L-25-320
    3D model downloadable as .stp file
