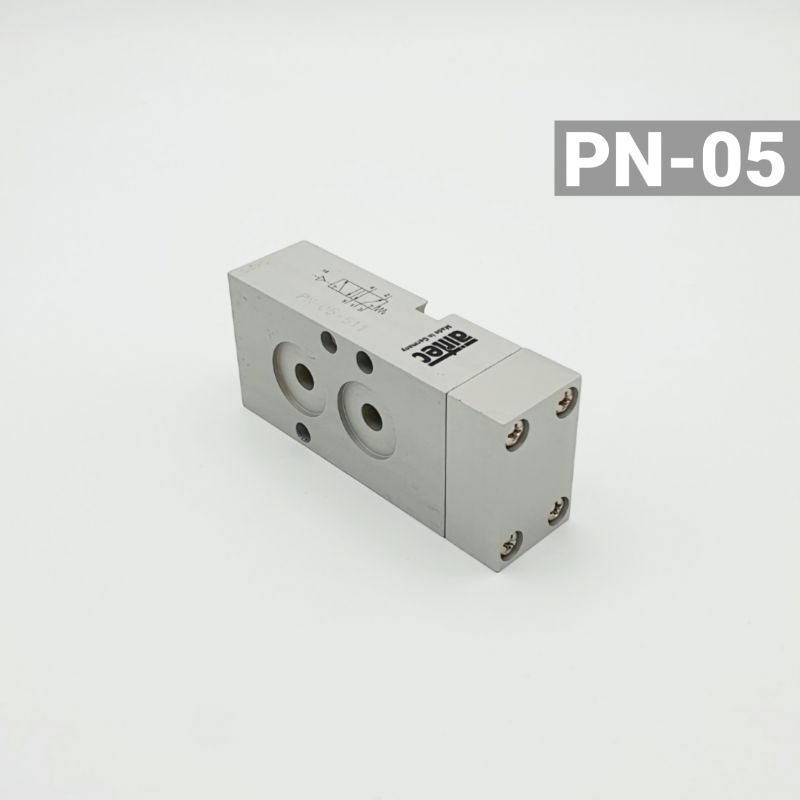

5/2-way Namur valve G 1/4" bistable / 900 NL - 1
5/2-way Namur valve G 1/4" bistable / 900 NL - 1

    5/2-way Namur valve G 1/4" bistable / 900 NL

    €87.37
    Tax excluded
    PN-05-520
    help_outlineAsk about product
    5/2-way Namur valve G 1/4" bistable / 900 NL

    5/2-way Namur valve G 1/4" bistable / 900 NL

    I accept privacy policy rules

    Construction:
    • 5/2-way
    Threaded connection:
    • 1/4"
    Flow:
    • 900 NL/min
    Standard:
    • NAMUR
    Activity:
    • Pneum. actuated
    Function:
    • bistable
    Series:
    • PN-05
    Not in stock - delivery times can be found on the "Delivery" page

    Nominal diameter: 6mm

    Temperature range: -10°C to +70°C

    Medium: Filtered, oil-free and dried compressed air according to ISO 85731:2010, class 7:2:4 - free of aggressive components. Deviating from this, the pressure dive point must be at least 10°C below the lowest ambient temperature occurring.

    Materials: Housing: anodized aluminum, plastic, seals: NBR and POM, internal parts: aluminum, stainless steel and Ms

    PN-05-520

    Specific References

    Reference:
    PN-05-520
    Threaded connection: 1/4"; Flow: 900 NL/min; Standard: NAMUR; Construction: 5/2-way; Activity: Pneum. actuated; Function: bistable; Series: PN-05;
    €87.37
