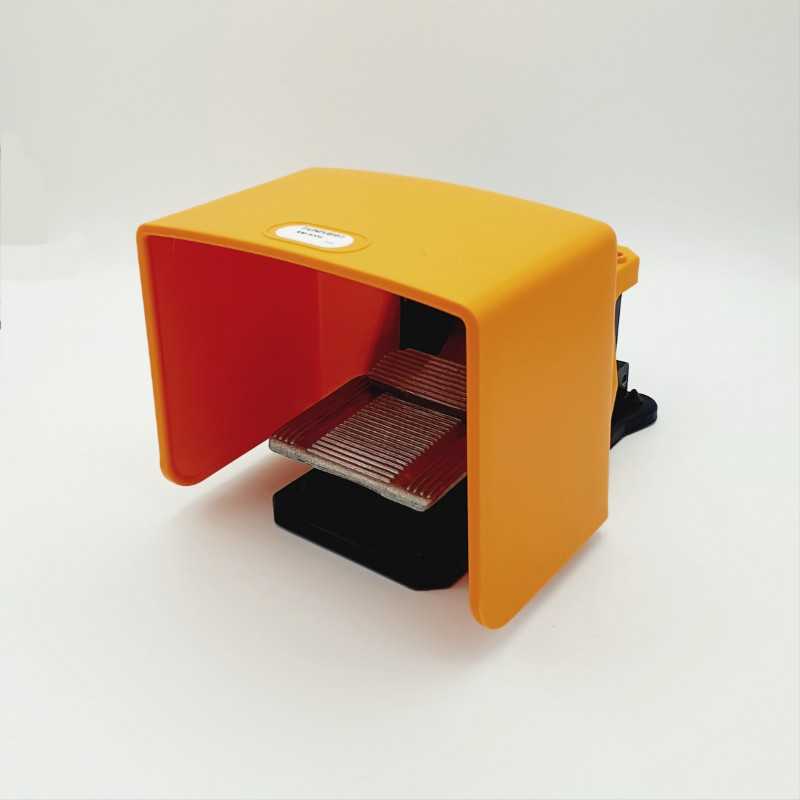

5/2-way pedal valve - 1

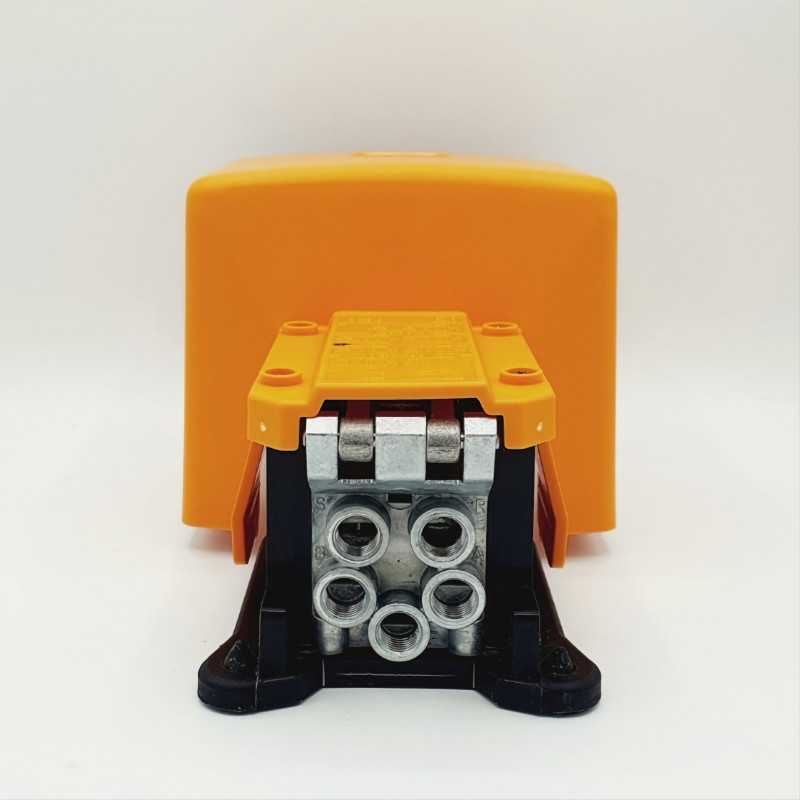

5/2-way pedal valve - 2
5/2-way pedal valve - 1
5/2-way pedal valve - 2

    5/2-way pedal valve

    €91.39
    Tax excluded
    AM-5001
    help_outlineAsk about product
    5/2-way pedal valve

    5/2-way pedal valve

    I accept privacy policy rules

    Threaded connection:
    • 1/4"
    Flow:
    • 800 NL/min
    Position:
    • NC - closed
    Standard:
    • Standard
    Activity:
    • Mech. actuated
    Function:
    • monostable / mech. Spring
    • Detent
    Last items in stock

    Temperature range: -10°C to +70°C

    Medium: industrial or dried compressed air, neutral gases, oiled or non-lubricated. Medium temperature: -10°C to +50°C

    Materials: Housing and protective cover: nylon, Valve housing: die-cast zamak, Gaskets: oil-resistant and wear-resistant compound

    AM-5001
