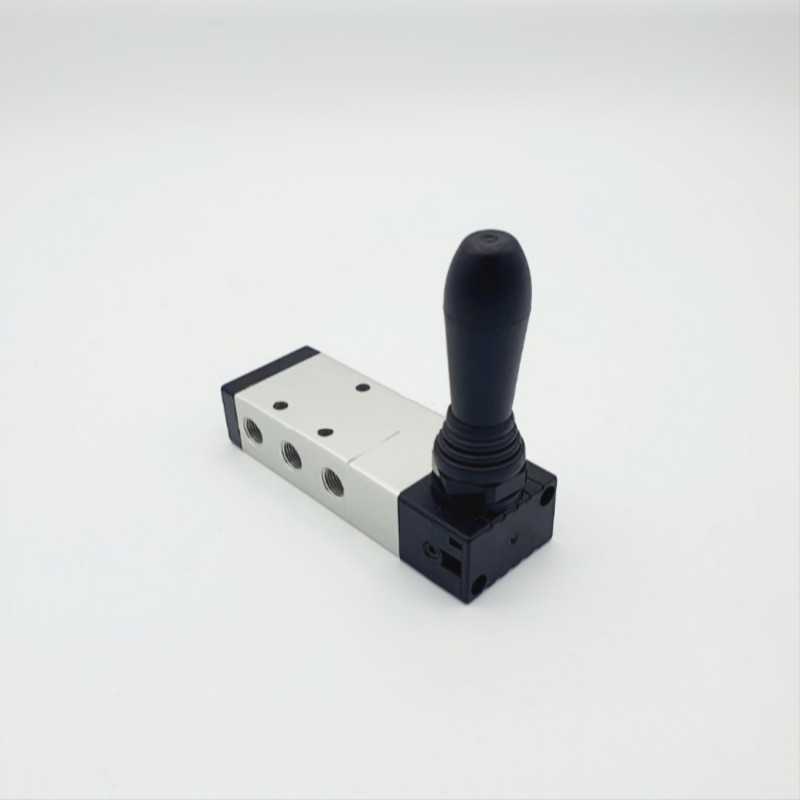

5/3-way lever valve G 1/4" M.G. / 980 NL - 1
5/3-way lever valve G 1/4" M.G. / 980 NL - 1

    5/3-way lever valve G 1/4" M.G. / 980 NL

    €72.18
    Tax excluded
    84-4HF-14-530
    help_outlineAsk about product
    5/3-way lever valve G 1/4" M.G. / 980 NL

    5/3-way lever valve G 1/4" M.G. / 980 NL

    I accept privacy policy rules

    Construction:
    • 5/3-way
    Threaded connection:
    • 1/4"
    Flow:
    • 990 NL/min
    Standard:
    • Standard
    Activity:
    • Mech. actuated with hand lever/spring return
    Function:
    • Middle position closed
    Series:
    • 84-4HF
    Not in stock - delivery times can be found on the "Delivery" page

    Temperature range: 0°C to +60°C

    Medium: Filtered, oil-free and dried compressed air according to ISO 85731:2010, class 7:2:4 - free of aggressive components. Deviating from this, the pressure dive point must be at least 10°C below the lowest ambient temperature occurring.

    Working pressure: 0 to 8 bar

    Materials: Housing: anodized aluminum, plastic, seals: NBR, internal parts: aluminum and galvanized steel

    84-4HF-14-530

    Specific References

    Reference:
    84-4HF-14-530
    Threaded connection: 1/4"; Flow: 990 NL/min; Standard: Standard; Construction: 5/3-way; Activity: Mech. actuated with hand lever/spring return; Function: Middle position closed; Series: 84-4HF;
    €72.18
