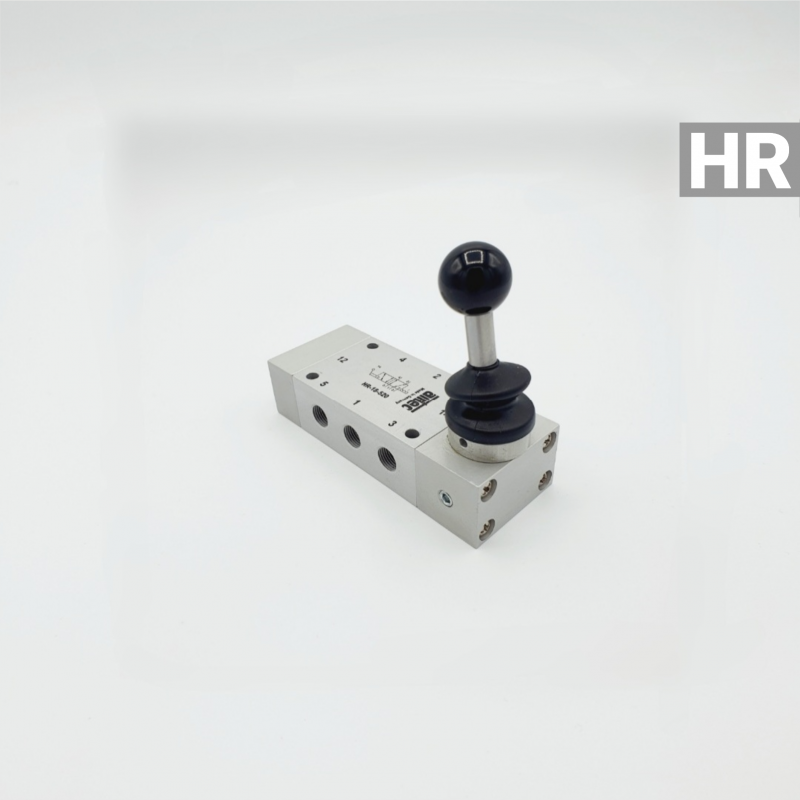

5/3-way lever valve G 1/4" M.G. /1800 NL /ratchet - 1
5/3-way lever valve G 1/4" M.G. /1800 NL /ratchet - 1

    5/3-way lever valve G 1/4" M.G. /1800 NL /ratchet

    €109.84
    Tax excluded
    HR-14-530
    help_outlineAsk about product
    5/3-way lever valve G 1/4" M.G. /1800 NL /ratchet

    5/3-way lever valve G 1/4" M.G. /1800 NL /ratchet

    I accept privacy policy rules

    Construction:
    • 5/3-way
    Threaded connection:
    • 1/4"
    Flow:
    • 1800 NL/min
    Standard:
    • Standard
    Activity:
    • Mech. actuated with hand lever/latch
    Function:
    • Middle position closed
    Series:
    • HR
    In stock - delivery times can be found on the "Delivery" page

    Temperature range: -10°C to +70°C

    Medium: Filtered, oil-free and dried compressed air according to ISO 85731:2010, class 7:2:4 - free of aggressive components. Deviating from this, the pressure dive point must be at least 10°C below the lowest ambient temperature occurring.

    Materials: Housing: Anodized aluminum, Gaskets: NBR, POM, Internal parts: Stainless steel and Ms

    3D-Model
    HR-14-530

    Specific References

    Reference:
    HR-14-530
    Threaded connection: 1/4"; Flow: 1800 NL/min; Standard: Standard; Construction: 5/3-way; Activity: Mech. actuated with hand lever/latch; Function: Middle position closed; Series: HR;
    €109.84

    Data sheets / 3D-models

    Valves
    HR-14-530
    3D model downloadable as .stp file
