5/3-way lever valve G 1/8" M.G. /780 NL /Latch - 1
5/3-way lever valve G 1/8" M.G. /780 NL /Latch - 1

    5/3-way lever valve G 1/8" M.G. /780 NL /Latch

    €84.27
    Tax excluded
    HR-18-530
    help_outlineAsk about product

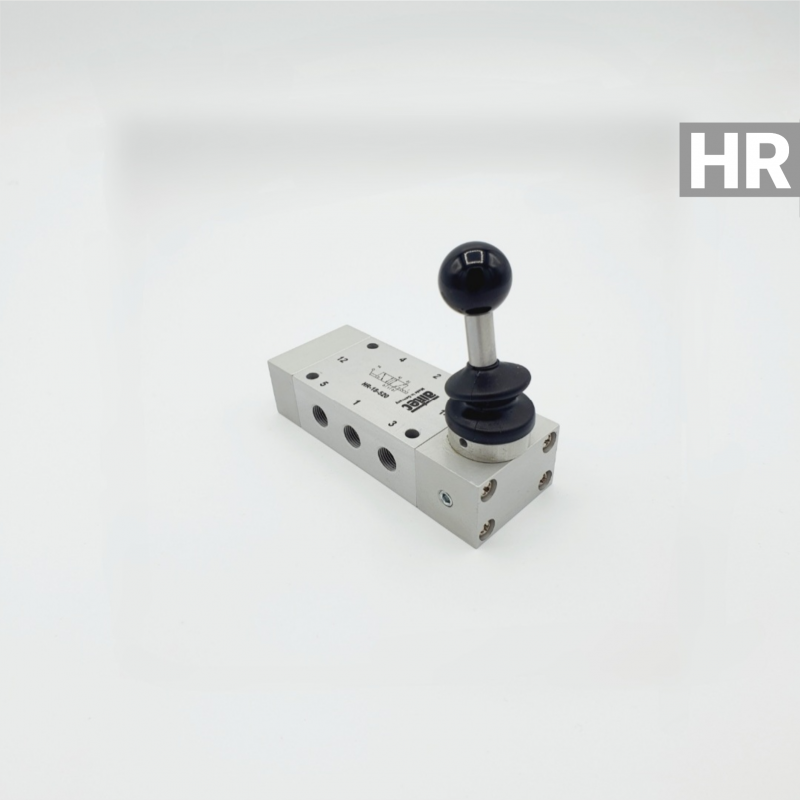

    5/3-way lever valve G 1/8" M.G. /780 NL /Latch

    5/3-way lever valve G 1/8" M.G. /780 NL /Latch

    I accept privacy policy rules

    Construction:
    • 5/3-way
    Threaded connection:
    • 1/8"
    Flow:
    • 780 NL/min
    Standard:
    • Standard
    Activity:
    • Mech. actuated with hand lever/latch
    Function:
    • Middle position closed
    Series:
    • HR
    Last items in stock

    Temperature range: -10°C to +70°C

    Medium: Filtered, oil-free and dried compressed air according to ISO 85731:2010, class 7:2:4 - free of aggressive components. Deviating from this, the pressure dive point must be at least 10°C below the lowest ambient temperature occurring.

    Materials: Housing: Anodized aluminum, Gaskets: NBR, POM, Internal parts: Stainless steel and Ms

    3D-Model
    HR-18-530

    Specific References

    Reference:
    HR-18-530
    Threaded connection: 1/8"; Flow: 780 NL/min; Standard: Standard; Construction: 5/3-way; Activity: Mech. actuated with hand lever/latch; Function: Middle position closed; Series: HR;
    €84.27
