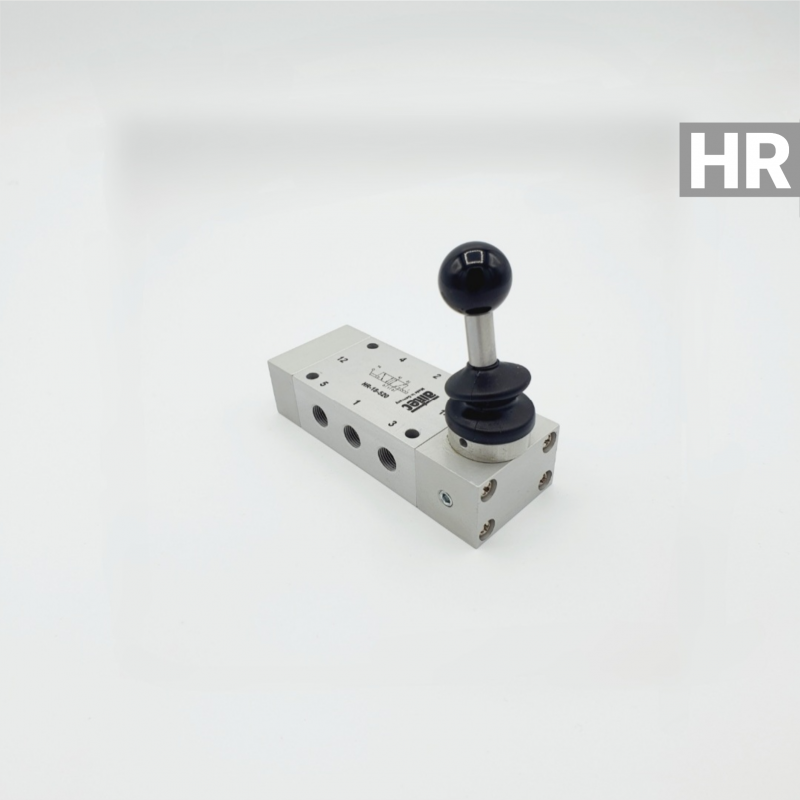

5/2-way lever valve G 1/8" bistable / 750 NL /latch - 1
5/2-way lever valve G 1/8" bistable / 750 NL /latch - 1

    5/2-way lever valve G 1/8" bistable / 750 NL /latch

    €71.54
    Tax excluded
    HR-18-520
    help_outlineAsk about product
    5/2-way lever valve G 1/8" bistable / 750 NL /latch

    5/2-way lever valve G 1/8" bistable / 750 NL /latch

    I accept privacy policy rules

    Construction:
    • 5/2-way
    Threaded connection:
    • 1/8"
    Flow:
    • 750 NL/min
    Standard:
    • Standard
    Activity:
    • Mech. actuated with hand lever/latch
    Function:
    • bistable
    Series:
    • HR
    In stock - delivery times can be found on the "Delivery" page

    Temperature range: -10°C to +70°C

    Medium: Filtered, oil-free and dried compressed air according to ISO 85731:2010, class 7:2:4 - free of aggressive components. Deviating from this, the pressure dive point must be at least 10°C below the lowest ambient temperature occurring.

    Materials: Housing: Anodized aluminum, Gaskets: NBR, POM, Internal parts: Stainless steel and Ms

    3D-Model
    HR-18-520

    Specific References

    Reference:
    HR-18-520
    Threaded connection: 1/8"; Flow: 750 NL/min; Standard: Standard; Construction: 5/2-way; Activity: Mech. actuated with hand lever/latch; Function: bistable; Series: HR;
    €71.54

    Data sheets / 3D-models

    Valves
    HR-18-520
    3D model downloadable as .stp file
