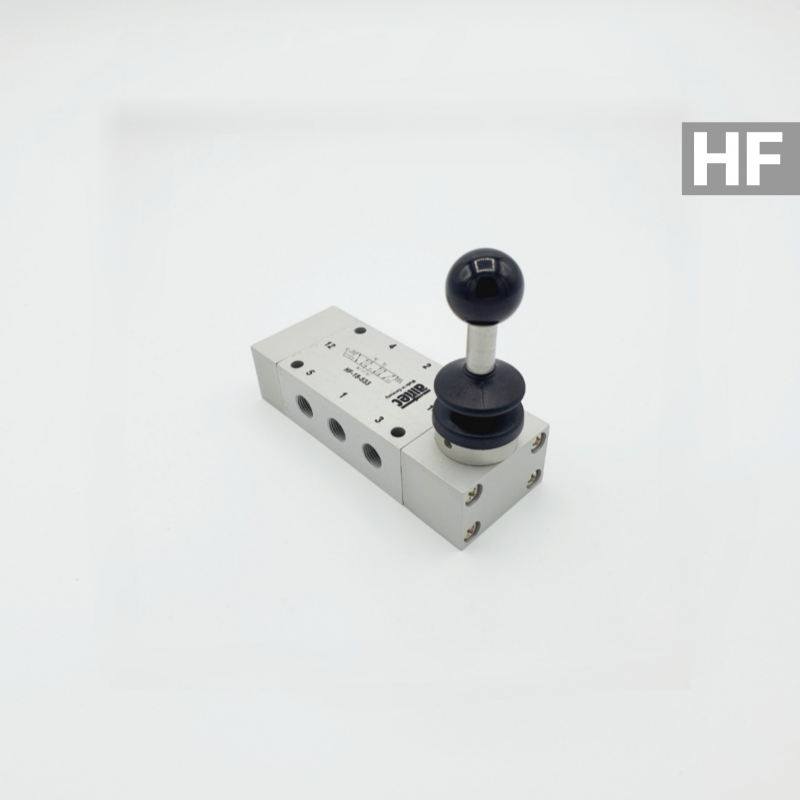

    5/3-way lever valve G 1/8" M.G. / 780 NL /spring

    €85.96
    Tax excluded
    HF-18-530
    help_outlineAsk about product
    5/3-way lever valve G 1/8" M.G. / 780 NL /spring

    5/3-way lever valve G 1/8" M.G. / 780 NL /spring

    I accept privacy policy rules

    Construction:
    • 5/3-way
    Threaded connection:
    • 1/8"
    Flow:
    • 780 NL/min
    Standard:
    • Standard
    Activity:
    • Mech. actuated with hand lever/spring return
    Function:
    • Middle position closed
    Series:
    • HF
    Last items in stock

    Temperature range: -10°C to +70°C

    Medium: Filtered, oil-free and dried compressed air according to ISO 85731:2010, class 7:2:4 - free of aggressive components. Deviating from this, the pressure dive point must be at least 10°C below the lowest ambient temperature occurring.

    Materials: Housing: Anodized aluminum, Gaskets: NBR, POM, Internal parts: Stainless steel and Ms

    3D-Model
    HF-18-530

    Specific References

    Reference:
    HF-18-530
    Threaded connection: 1/8"; Flow: 780 NL/min; Standard: Standard; Construction: 5/3-way; Activity: Mech. actuated with hand lever/spring return; Function: Middle position closed; Series: HF;
    €85.96

    Data sheets / 3D-models

    Valves
    HF-18-530
    3D model downloadable as .stp file
