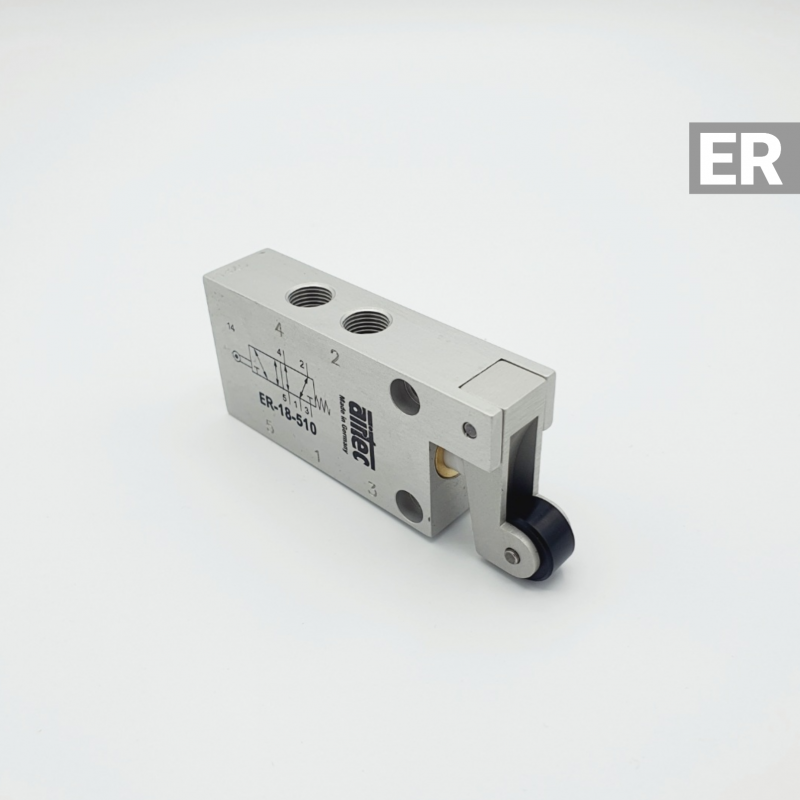

5/2-way roller lever valve G 1/8" - 1
5/2-way roller lever valve G 1/8" - 1

    5/2-way roller lever valve G 1/8"

    €48.61
    Tax excluded
    ER-18-510
    help_outlineAsk about product
    5/2-way roller lever valve G 1/8"

    5/2-way roller lever valve G 1/8"

    I accept privacy policy rules

    Construction:
    • 5/2-way
    Threaded connection:
    • 1/8"
    Flow:
    • 320 NL/min
    Position:
    • without function
    Standard:
    • Standard
    Activity:
    • Mech. actuated with roller lever
    Function:
    • monostable / air spring
    Series:
    • ER
    Last items in stock

    Nominal diameter: 4mm

    Temperature range: -10°C to +70°C

    Medium: Filtered, oil-free and dried compressed air according to ISO 85731:2010, class 7:2:4 - free of aggressive components. Deviating from this, the pressure dive point must be at least 10°C below the lowest ambient temperature occurring.

    Materials: Housing: Anodized aluminum, Gaskets: NBR, Internal parts: Stainless steel and Ms, Plunger: Stainless steel, Roller: Plastic, Lever: Anodized aluminum, Ms

    3D-Model
    ER-18-510

    Specific References

    Download

    Datenblatt Serie ER-18-510

    Download (57.7k)
    Reference:
    ER-18-510
    Threaded connection: 1/8"; Flow: 320 NL/min; Function 2: without function; Standard: Standard; Construction: 5/2-way; Activity: Mech. actuated with roller lever; Function: monostable / air spring; Series: ER;
    €48.61
