3/2-way stem operated valve M12x1 - 1
3/2-way stem operated valve M12x1 - 1

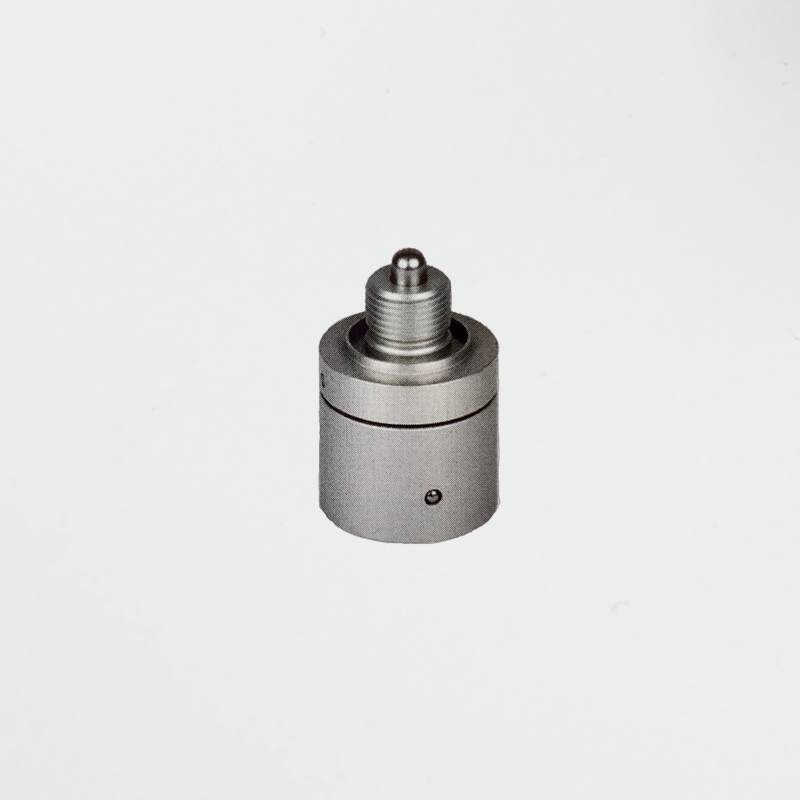

    3/2-way stem operated valve M12x1

    €42.08
    Tax excluded
    E-30-311-M12
    help_outlineAsk about product
    3/2-way stem operated valve M12x1

    3/2-way stem operated valve M12x1

    I accept privacy policy rules

    Construction:
    • 3/2-way
    Threaded connection:
    • M12 x 1
    Flow:
    • 110 NL/min
    Position:
    • NC - closed
    Standard:
    • Standard
    Activity:
    • Mech. actuated with plunger
    Function:
    • monostable / mech. Spring
    Series:
    • E
    Not in stock - delivery times can be found on the "Delivery" page

    Nominal diameter: 2mm

    Temperature range: -10°C to +70°C

    Medium: Filtered, oil-free and dried compressed air according to ISO 85731:2010, class 7:2:4 - free of aggressive components. Deviating from this, the pressure dive point must be at least 10°C below the lowest ambient temperature occurring.

    Materials: Housing: Anodized aluminum, Gaskets: FKM, NBR, Internal parts: Stainless steel, Ms, Plunger: Stainless steel

    3D-Model
    E-30-311-M12

    Specific References

    Reference:
    E-30-311-M12
    Threaded connection: M12 x 1; Flow: 110 NL/min; Function 2: NC - closed; Standard: Standard; Construction: 3/2-way; Activity: Mech. actuated with plunger; Function: monostable / mech. Spring; Series: E;
    €42.08
