Cylinder series NYD (ISO 21287) D 40mm | Beta Online Shop
Cylinder series NYD (ISO 21287) D 40mm | Beta Online Shop

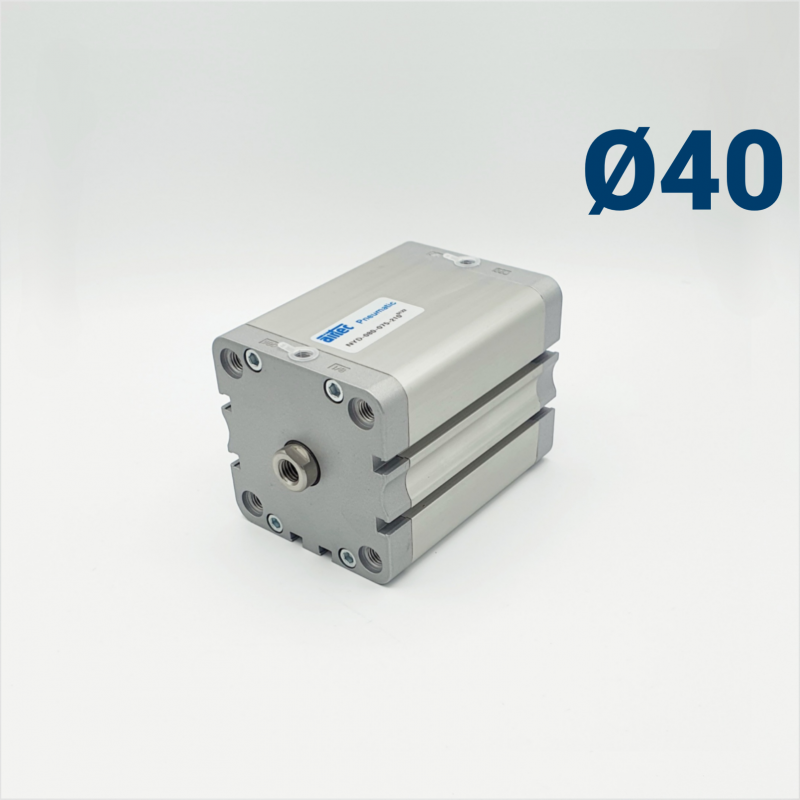

    Cylinder series NYD (ISO 21287) D 40mm

    €66.81
    Tax excluded
    NYD-040-010-200

    SPECIAL STROKES on request!

    help_outlineAsk about product
    Cylinder series NYD (ISO 21287) D 40mm

    Cylinder series NYD (ISO 21287) D 40mm

    I accept privacy policy rules

    Piston diameter [mm]:
    • 40
    Stroke [mm]:
    Threaded connection:
    • 1/8"
    Seal type:
    • NBR
    Rod:
    • unilateral
    Piston rod thread:
    • M10 x 1,25
    Anti-rotation:
      Effect:
      • double-acting
      Delivery time 1-2 Workdays

      CHARACTERISTICS
      • Ambient temperature: -20 to 80°C
      • Operating medium: filtered, unlubricated compressed air
      • Operating pressure: 1 to 10 bar

      3D-Model
      NYD-040-010-200

      Data sheet

      Cylinder liner
      Anodized aluminum

      Specific References

      Reference:
      NYD-040-010-200
      Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 10; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Effect: double-acting;
      €66.81
      Reference:
      NYD-040-015-200
      Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 15; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Effect: double-acting;
      €68.46
      Reference:
      NYD-040-020-210
      Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 20; Piston diameter: 40; Rod: unilateral; Piston rod thread: M8; Effect: double-acting;
      €70.12
      Reference:
      NYD-040-025-210
      Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 25; Piston diameter: 40; Rod: unilateral; Piston rod thread: M8; Effect: double-acting;
      €71.80
      Reference:
      NYD-040-050-200
      Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 50; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Effect: double-acting;
      €79.80
      Reference:
      NYD-040-070-220
      Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 70; Piston diameter: 40; Rod: unilateral; Piston rod thread: M8; Anti-rotation: Ja; Effect: double-acting;
      €132.16
      Reference:
      NYD-040-080-200
      Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 80; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Effect: double-acting;
      €89.52
      Reference:
      NYD-040-125-210
      Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 125; Piston diameter: 40; Rod: unilateral; Piston rod thread: M8; Effect: double-acting;
      €115.63
      Reference:
      NYD-040-160-200
      Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 160; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Effect: double-acting;
      €127.76
      Reference:
      NYD-040-200-200
      Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 200; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Effect: double-acting;
      €141.55
