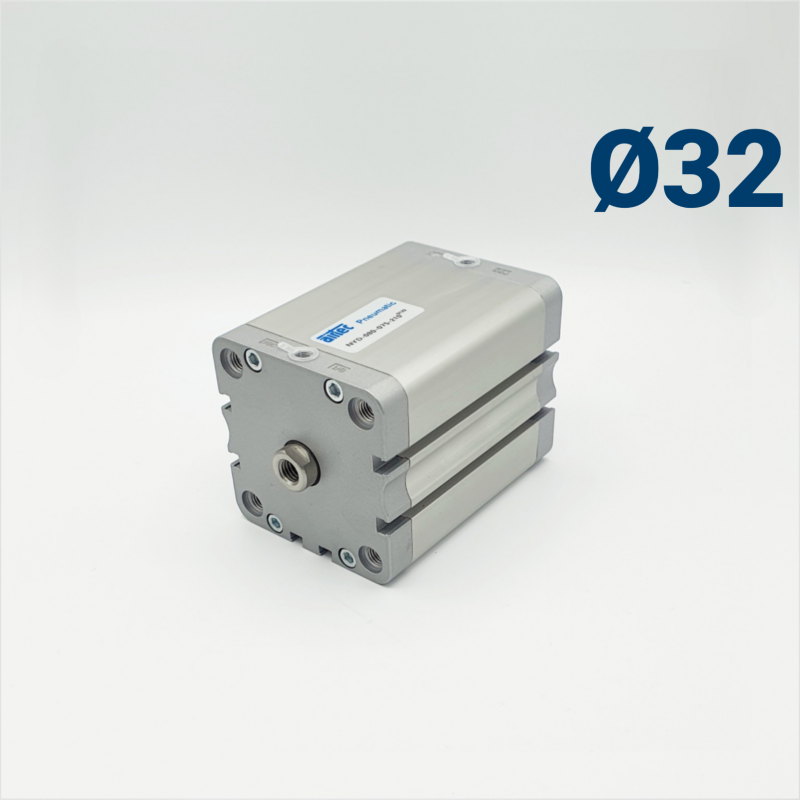

    Cylinder series NYD (ISO 21287) D 32mm

    €50.73
    Tax excluded
    NYD-032-010-200

    SPECIAL STROKES on request!

    help_outlineAsk about product
    Cylinder series NYD (ISO 21287) D 32mm

    Cylinder series NYD (ISO 21287) D 32mm

    I accept privacy policy rules

    Piston diameter [mm]:
    • 32
    Stroke [mm]:
    Threaded connection:
    • 1/8"
    Seal type:
    • NBR
    Rod:
    • unilateral
    Piston rod thread:
    • M10 x 1,25
    Anti-rotation:
      Effect:
      • double-acting
      Delivery time 1-2 Workdays

      CHARACTERISTICS
      • Ambient temperature: -20 to 80°C
      • Operating medium: filtered, unlubricated compressed air
      • Operating pressure: 1 to 10 bar

      3D-Model
      NYD-032-010-200

      Data sheet

      Cylinder liner
      Anodized aluminum

      Specific References

      Reference:
      NYD-032-010-200
      Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 10; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Effect: double-acting;
      €50.73
      Reference:
      NYD-032-050-220
      Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 50; Piston diameter: 32; Rod: unilateral; Piston rod thread: M8 x 1,25; Anti-rotation: Ja; Effect: double-acting;
      €108.55
      Reference:
      NYD-032-060-210
      Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 60; Piston diameter: 32; Rod: unilateral; Piston rod thread: M8; Effect: double-acting;
      €65.14
      Reference:
      NYD-032-100-210
      Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 100; Piston diameter: 32; Rod: unilateral; Piston rod thread: M8; Effect: double-acting;
      €87.00
      Reference:
      NYD-032-120-220
      Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 120; Piston diameter: 32; Rod: unilateral; Piston rod thread: M8; Anti-rotation: Ja; Effect: double-acting;
      €114.10
      Reference:
      NYD-032-130-200
      Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 130; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Effect: double-acting;
      €78.15
      Reference:
      NYD-032-180-210
      Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 180; Piston diameter: 32; Rod: unilateral; Piston rod thread: M8; Effect: double-acting;
      €90.60
      Reference:
      NYD-032-200-200
      Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 200; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Effect: double-acting;
      €95.55
      Reference:
      NYD-032-250-210
      Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 250; Piston diameter: 32; Rod: unilateral; Piston rod thread: M8; Effect: double-acting;
      €132.99
      Reference:
      NYD-032-380-210
      Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 380; Piston diameter: 32; Rod: unilateral; Piston rod thread: M8; Effect: double-acting;
      €140.40
