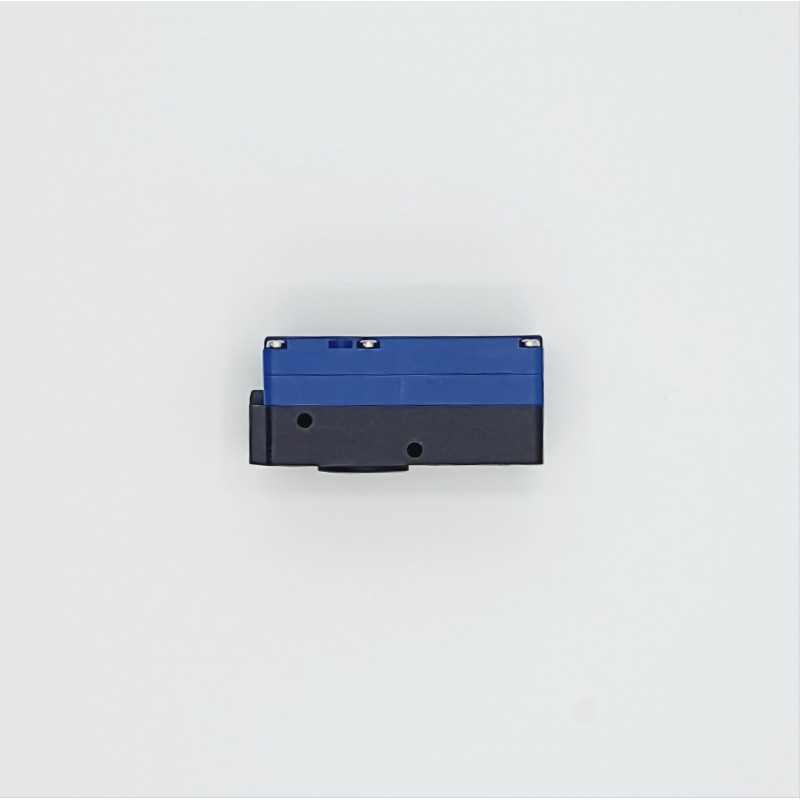

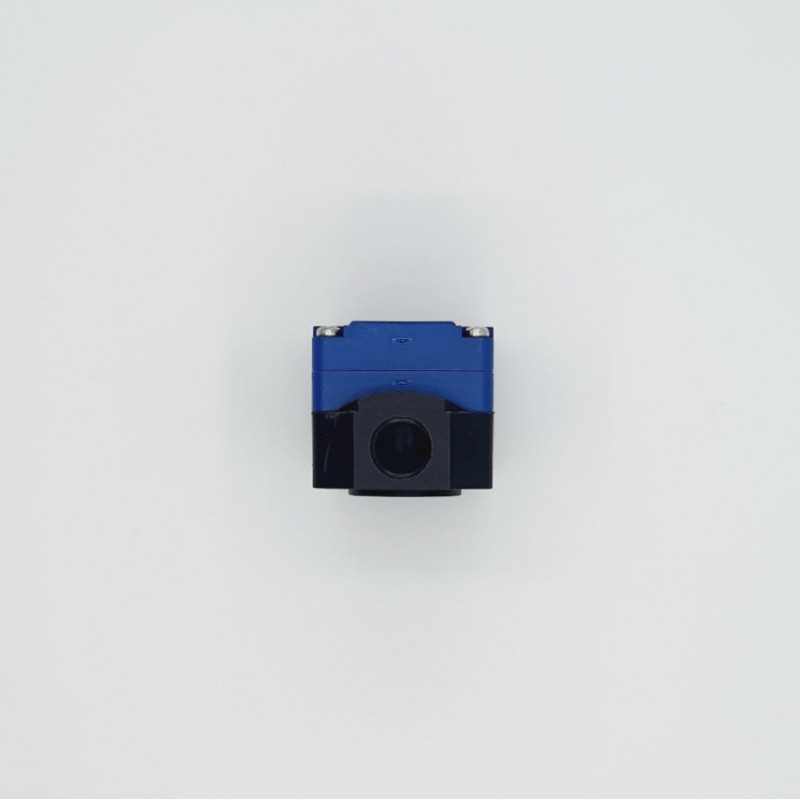

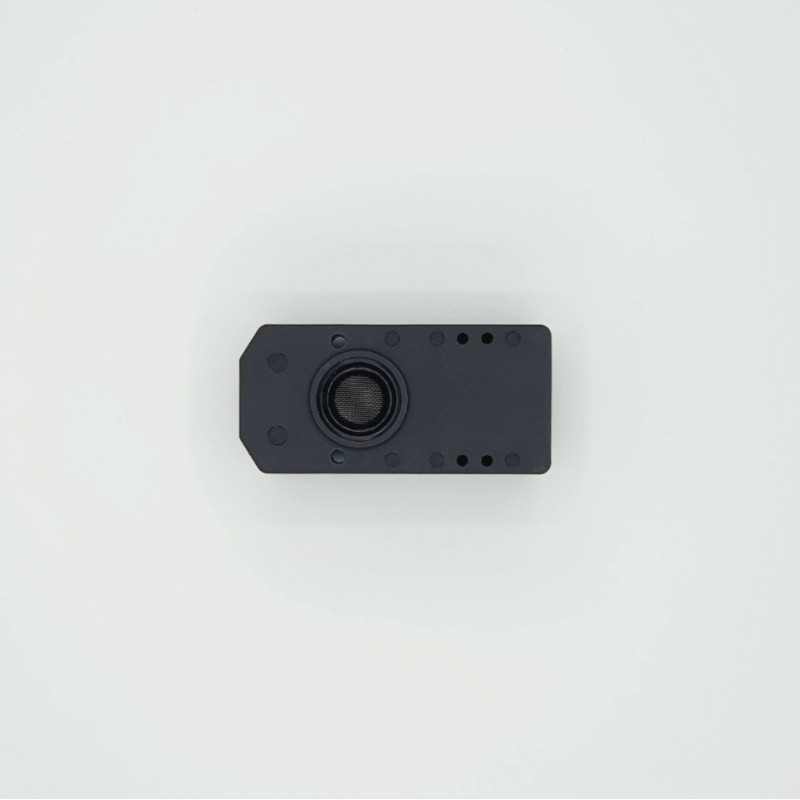

Mini Vacuum Generator ABM/ABX Series – Compact performance for efficient vacuum generation
The Mini Vacuum Generator of the ABM/ABX series is the ideal solution for applications that require a compact design with high vacuum performance. With its innovative technology, the generator enables increased vacuum flow while reducing air consumption. This makes it particularly efficient and environmentally friendly.
Efficient operation with low air consumption
The mini vacuum generator delivers a stable vacuum flow while offering outstanding energy efficiency. Optimized air consumption not only makes operation more cost-effective, but also more environmentally friendly.
Compact size – ideal for confined installation spaces
Thanks to its compact design, the ABM/ABX Mini Vacuum Generator is perfect for applications with limited installation space and weight restrictions. It can be used in a wide variety of machines and devices without losing valuable space.
Customizable connection options
The port connection options of the vacuum generator can be selected according to specific on-site requirements. This allows the generator to be easily adapted to different system configurations.
Versatile application possibilities
Whether in industrial processes or sensitive working environments, the ABM/ABX series mini vacuum generator meets a wide range of vacuum requirements and reliably ensures a constant vacuum flow under various working conditions.
Noise reduction for pleasant operation
Another advantage of the mini vacuum generator is the significant reduction in noise levels compared to conventional vacuum solutions. This contributes to a more comfortable working environment, especially in noise-sensitive areas.
The ABM/ABX series mini vacuum generator offers a powerful, efficient, and space-saving solution for applications that place the highest demands on vacuum technology. With its customization options and reduction in noise and air consumption, it is an ideal choice for modern industrial requirements.

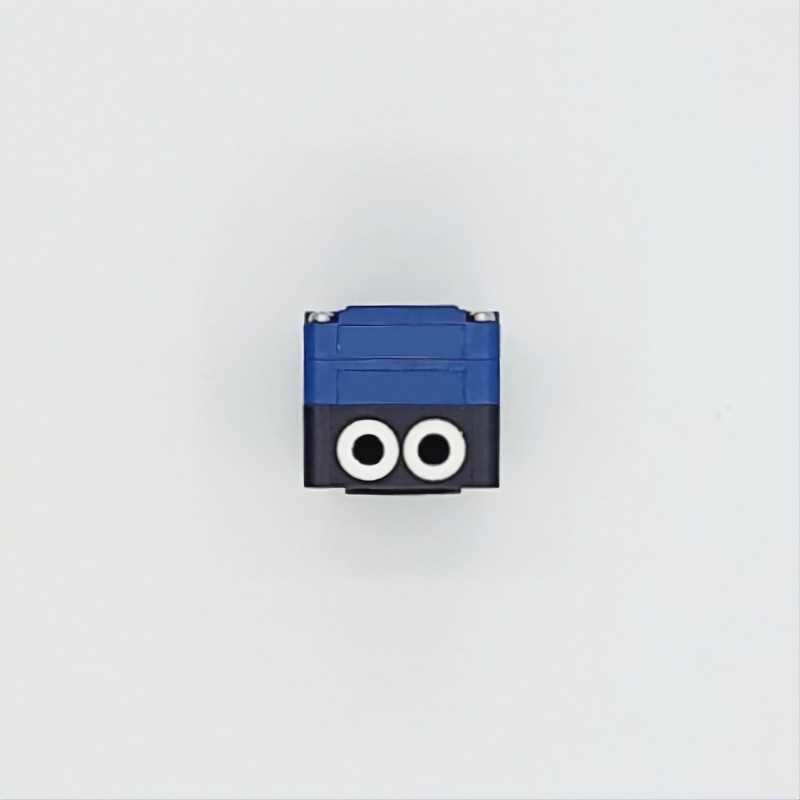

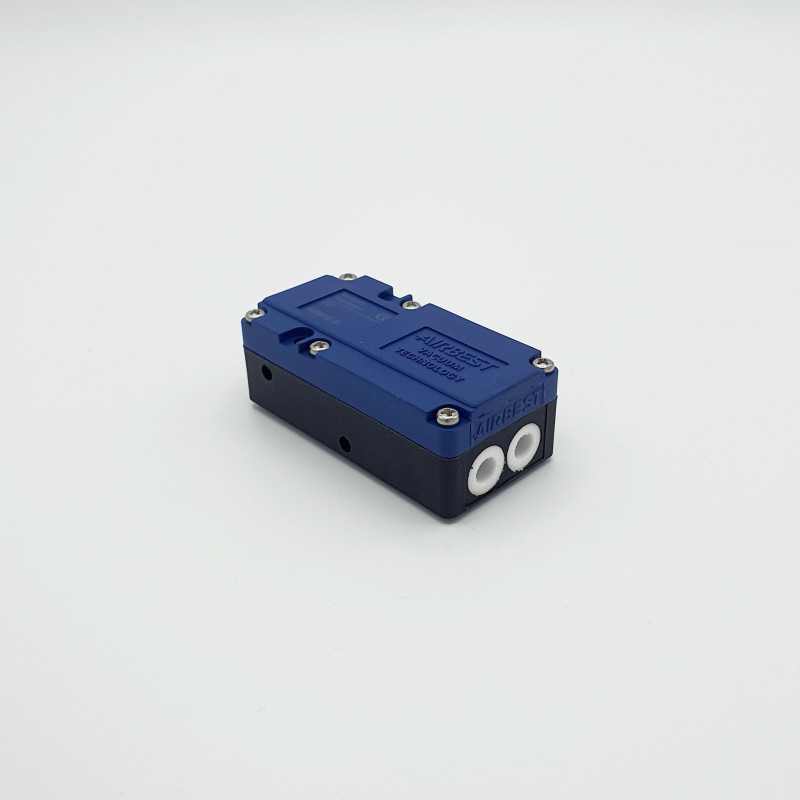

Air connection: hose nozzle with Ø6mm
Silencer: internal

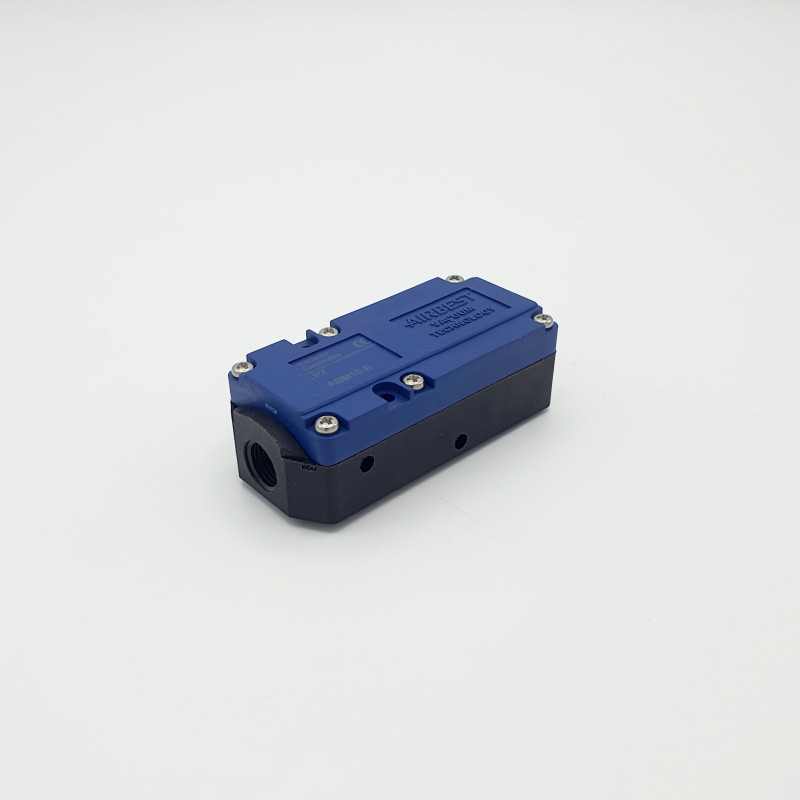

Vacuum connection: 1/8" female thread
Air connection: 1/8" female thread
Silencer: internal
Vacuum connection: 3/8" female thread
Air connection: 1/8" female thread
Silencer: external
Vacuum connection: 3/8" female thread
ABM5-A
Specific References
Reference:
ABM10-B
ABM10-B
Flow: 75 NL/min; Ejector size: 10; Air consumption: 28-42 NL/min; Vacuum performance: 85%; Ejector design: B;
€35.62
Reference:
ABM10-C
ABM10-C
Flow: 75 NL/min; Ejector size: 10; Air consumption: 28-42 NL/min; Vacuum performance: 85%; Ejector design: C;
€44.52
Reference:
ABM20-B
ABM20-B
Flow: 150 NL/min; Ejector size: 20; Air consumption: 55-85 NL/min; Vacuum performance: 85%; Ejector design: B;
€51.75
Reference:
ABM20-C
ABM20-C
Flow: 150 NL/min; Ejector size: 20; Air consumption: 55-85 NL/min; Vacuum performance: 85%; Ejector design: C;
€61.33
Reference:
ABM30-B
ABM30-B
Flow: 220 NL/min; Ejector size: 30; Air consumption: 87-125 NL/min; Vacuum performance: 85%; Ejector design: B;
€86.14
Reference:
ABM30-C
ABM30-C
Flow: 220 NL/min; Ejector size: 30; Air consumption: 87-125 NL/min; Vacuum performance: 85%; Ejector design: C;
€90.71
Reference:
ABM5-A
ABM5-A
Flow: 37 NL/min; Ejector size: 5; Air consumption: 12-20 NL/min; Vacuum performance: 85%; Ejector design: A;
€30.94
Reference:
ABM5-B
ABM5-B
Flow: 37 NL/min; Ejector size: 5; Air consumption: 12-20 NL/min; Vacuum performance: 85%; Ejector design: B;
€32.71
Reference:
ABM5-C
ABM5-C
Flow: 37 NL/min; Ejector size: 5; Air consumption: 12-20 NL/min; Vacuum performance: 85%; Ejector design: C;
€37.84
Reference:
ABX10-A
ABX10-A
Flow: 37 NL/min; Ejector size: 10; Air consumption: 31-40 NL/min; Vacuum performance: 92%; Ejector design: A;
€38.55
Reference:

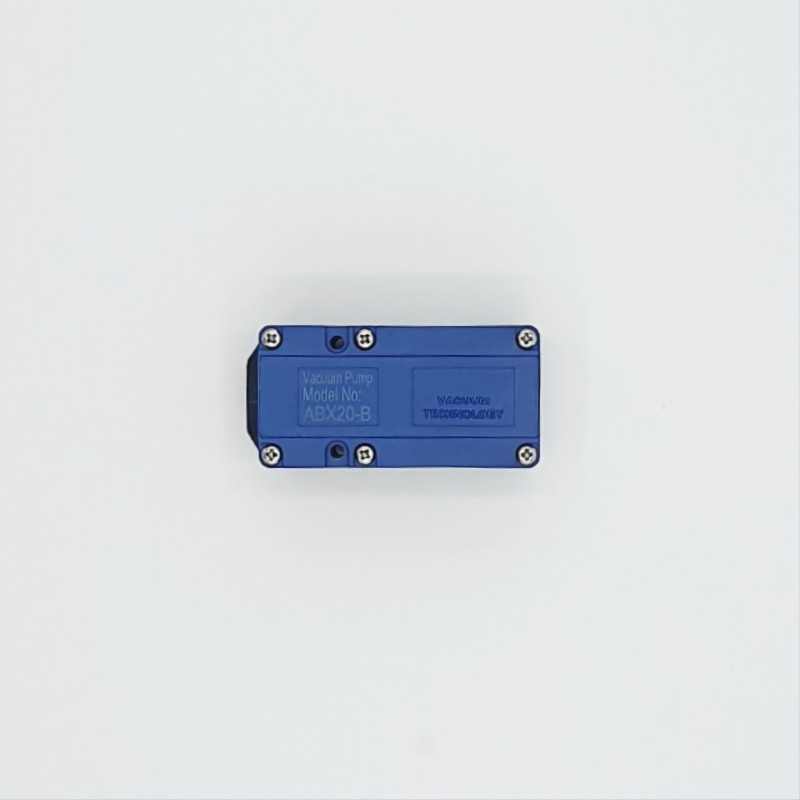

ABX20-B
ABX20-B
Flow: 125 NL/min; Ejector size: 20; Air consumption: 79-89 NL/min; Vacuum performance: 92%; Ejector design: B;
€54.54
Reference:
ABX30-B
ABX30-B
Flow: 185 NL/min; Ejector size: 30; Air consumption: 128-137 NL/min; Vacuum performance: 92%; Ejector design: B;
€88.95
