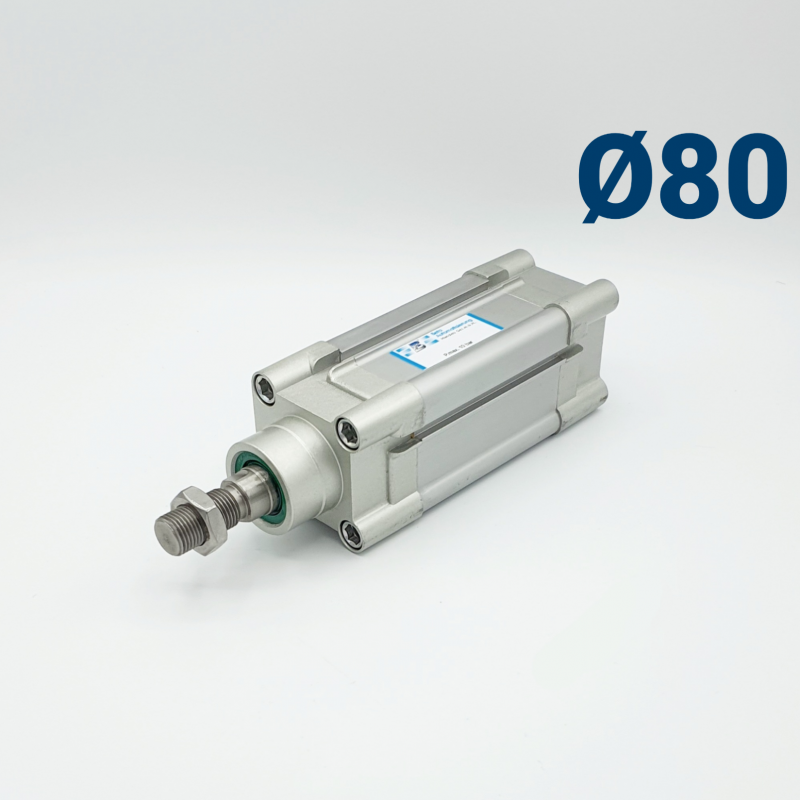

    Cylinder series XL (ISO 15552 / ISO 6431) D 80mm

    €237.18
    Tax excluded
    XL-080-0020-004

    SPECIAL STROKES on request!

    Piston diameter [mm]:
    • 80
    Stroke [mm]:
    Threaded connection:
    • 3/8"
    Piston rod material:
    • Stainless steel
    Seal type:
    • Viton
    Rod:
    • unilateral
    Piston rod thread:
    • M20 x 1,5
    Delivery time 1-2 Workdays

    Pneumatic cylinder with magnetic piston and adjustable end position damping, piston diameter 32-125 mm

    CHARACTERISTICS
    • Ambient temperature: -20 to 80°C
    • Operating medium: filtered, unlubricated compressed air
    • Operating pressure: 1 to 10 bar

    XL-080-0020-004

    Data sheet

    Cylinder cover
    Die-cast aluminum
    Cylinder liner
    Anodized aluminum
    Piston seals
    NBR

    Specific References

    Reference:
    XL-080-0020-004
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: Viton; Stroke/mm: 20; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €237.18
    Reference:
    XL-080-0025-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 25; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €245.24
    Reference:
    XL-080-0025-050
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 25; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €226.77
    Reference:
    XL-080-0025-400
    Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 25; Piston diameter: 80; Rod: double rod; Piston rod thread: M20 x 1,5;
    €286.95
    Reference:
    XL-080-0025-450
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 25; Piston diameter: 80; Rod: double rod; Piston rod thread: M20 x 1,5;
    €270.55
    Reference:
    XL-080-0030-050
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 30; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €253.21
    Reference:
    XL-080-0040-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 40; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €249.17
    Reference:
    XL-080-0050-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 50; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €251.79
    Reference:
    XL-080-0050-050
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 50; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €231.00
    Reference:
    XL-080-0050-400
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 50; Piston diameter: 80; Rod: double rod; Piston rod thread: M20 x 1,5;
    €293.88
    Reference:
    XL-080-0050-450
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 50; Piston diameter: 80; Rod: double rod; Piston rod thread: M20 x 1,5;
    €476.96
    Reference:
    XL-080-0060-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 60; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €266.56
    Reference:
    XL-080-0075-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 75; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €229.98
    Reference:
    XL-080-0080-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 80; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €259.65
    Reference:
    XL-080-0080-050
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 80; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €221.67
    Reference:
    XL-080-0080-054
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: Viton; Stroke/mm: 80; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €239.31
    Reference:
    XL-080-0080-400
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 80; Piston diameter: 80; Rod: double rod; Piston rod thread: M20 x 1,5;
    €302.35
    Reference:
    XL-080-0080-450
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 80; Piston diameter: 80; Rod: double rod; Piston rod thread: M20 x 1,5;
    €486.80
    Reference:
    XL-080-0100-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 100; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €264.89
    Reference:
    XL-080-0100-004
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 100; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €219.65
    Reference:
    XL-080-0100-050
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 100; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €239.47
    Reference:
    XL-080-0100-450
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 100; Piston diameter: 80; Rod: double rod; Piston rod thread: M20 x 1,5;
    €493.36
    Reference:
    XL-080-0125-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 125; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €271.44
    Reference:
    XL-080-0125-050
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 125; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €243.70
    Reference:
    XL-080-0125-400
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 125; Piston diameter: 80; Rod: double rod; Piston rod thread: M20 x 1,5;
    €314.86
    Reference:
    XL-080-0125-450
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 125; Piston diameter: 80; Rod: double rod; Piston rod thread: M20 x 1,5;
    €501.56
    Reference:
    XL-080-0150-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 150; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €277.99
    Reference:
    XL-080-0160-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 160; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €280.61
    Reference:
    XL-080-0160-050
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 160; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €249.63
    Reference:
    XL-080-0160-400
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 160; Piston diameter: 80; Rod: double rod; Piston rod thread: M20 x 1,5;
    €544.56
    Reference:
    XL-080-0160-450
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 160; Piston diameter: 80; Rod: double rod; Piston rod thread: M20 x 1,5;
    €513.04
    Reference:
    XL-080-0180-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 180; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €307.84
    Reference:
    XL-080-0200-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 200; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €291.09
    Reference:
    XL-080-0200-004
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: Viton; Stroke/mm: 200; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €308.73
    Reference:
    XL-080-0200-004(Copy)
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: Viton; Stroke/mm: 200; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €238.79
    Reference:
    XL-080-0200-050
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 200; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €256.40
    Reference:
    XL-080-0200-400
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 200; Piston diameter: 80; Rod: double rod; Piston rod thread: M20 x 1,5;
    €565.56
    Reference:
    XL-080-0200-450
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 200; Piston diameter: 80; Rod: double rod; Piston rod thread: M20 x 1,5;
    €526.16
    Reference:
    XL-080-0230-050
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 230; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €301.81
    Reference:
    XL-080-0250-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 250; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €304.19
    Reference:
    XL-080-0250-050
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 250; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €264.87
    Reference:
    XL-080-0250-400
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 250; Piston diameter: 80; Rod: double rod; Piston rod thread: M20 x 1,5;
    €591.81
    Reference:
    XL-080-0250-450
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 250; Piston diameter: 80; Rod: double rod; Piston rod thread: M20 x 1,5;
    €542.56
    Reference:
    XL-080-0280-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 280; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €342.24
    Reference:
    XL-080-0300-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 300; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €349.12
    Reference:
    XL-080-0300-050
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 300; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €318.82
    Reference:
    XL-080-0320-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 320; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €322.52
    Reference:
    XL-080-0320-050
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 320; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €276.72
    Reference:
    XL-080-0320-400
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 320; Piston diameter: 80; Rod: double rod; Piston rod thread: M20 x 1,5;
    €369.38
    Reference:
    XL-080-0320-450
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 320; Piston diameter: 80; Rod: double rod; Piston rod thread: M20 x 1,5;
    €346.27
    Reference:
    XL-080-0350-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 350; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €366.32
    Reference:
    XL-080-0350-050
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 350; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €330.97
    Reference:
    XL-080-0360-050
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 360; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €333.40
    Reference:
    XL-080-0370-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 370; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €373.20
    Reference:
    XL-080-0375-050
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 375; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €281.20
    Reference:
    XL-080-0400-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 400; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €343.48
    Reference:
    XL-080-0400-050
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 400; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €290.27
    Reference:
    XL-080-0400-400
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 400; Piston diameter: 80; Rod: double rod; Piston rod thread: M20 x 1,5;
    €670.56
    Reference:
    XL-080-0400-450
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 400; Piston diameter: 80; Rod: double rod; Piston rod thread: M20 x 1,5;
    €591.76
    Reference:
    XL-080-0430-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 430; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €296.55
    Reference:
    XL-080-0500-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 500; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €369.68
    Reference:
    XL-080-0500-050
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 500; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €307.20
    Reference:
    XL-080-0500-400
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 500; Piston diameter: 80; Rod: double rod; Piston rod thread: M20 x 1,5;
    €419.66
    Reference:
    XL-080-0500-450
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 500; Piston diameter: 80; Rod: double rod; Piston rod thread: M20 x 1,5;
    €392.54
    Reference:
    XL-080-0600-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 600; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €492.16
    Reference:
    XL-080-0600-050
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 600; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €431.56
    Reference:
    XL-080-0650-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 650; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €303.97
    Reference:
    XL-080-0700-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 700; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €526.56
    Reference:
    XL-080-0720-050
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 720; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €460.72
    Reference:
    XL-080-0730-050
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 730; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €463.15
    Reference:
    XL-080-0730-054
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: Viton; Stroke/mm: 730; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €364.39
    Reference:
    XL-080-0800-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 800; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €560.96
    Reference:
    XL-080-0850-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 850; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €578.16
    Reference:
    XL-080-0900-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 900; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €595.36
    Reference:
    XL-080-0900-054
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: Viton; Stroke/mm: 900; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €393.99
    Reference:
    XL-080-0950-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 950; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €394.05
    Reference:
    XL-080-0950-050
    Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 950; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €516.61
    Reference:
    XL-080-1000-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 1000; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €652.05
    Reference:
    XL-080-1000-050
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 1000; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €528.76
    Reference:
    XL-080-1025-050
    Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 1025; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €451.69
    Reference:
    XL-080-1025-050-XNBR
    Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 1025; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €451.69
    Reference:
    XL-080-1100-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 1100; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €686.45
    Reference:
    XL-080-1100-050
    Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 1100; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €575.35
    Reference:
    XL-080-1200-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 1200; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €720.85
    Reference:
    XL-080-1300-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 1300; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €755.25
    Reference:
    XL-080-1400-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 1400; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €789.65
    Reference:
    XL-080-1450-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 1450; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €507.16
    Reference:
    XL-080-1600-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 1600; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €534.74
    Reference:
    XL-080-1650-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 1650; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €543.94
    Reference:
    XL-080-1800-000
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 1800; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5;
    €620.33
