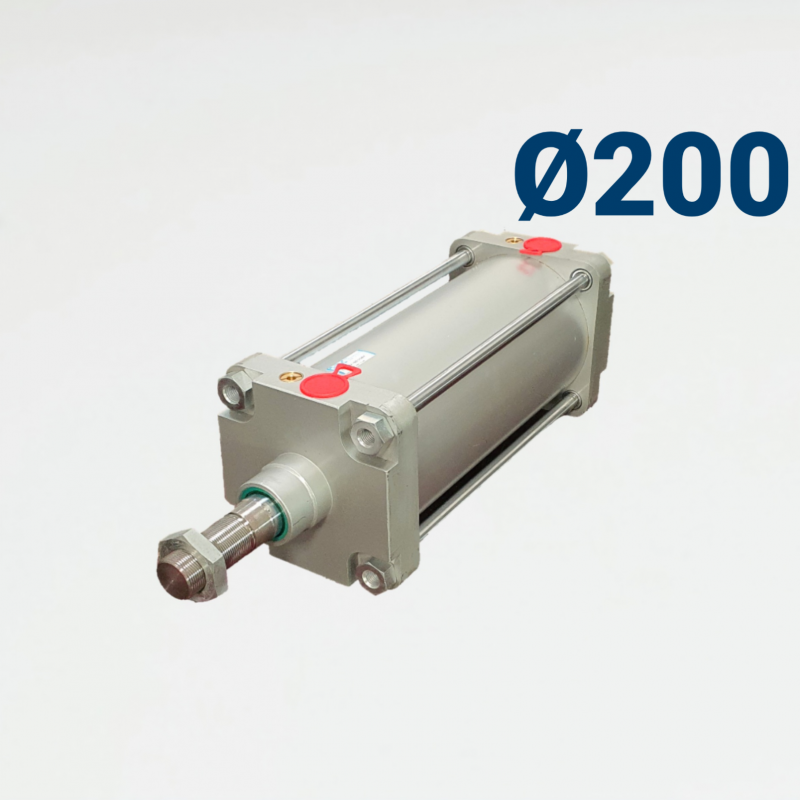

Cylinder series XG (ISO 15552 / ISO 6431) D 200mm | Beta Online Shop

    Cylinder series XG (ISO 15552 / ISO 6431) D 200mm

    €875.54
    Tax excluded
    XG-200-0025-000

    SPECIAL STROKES on request!

    Piston diameter [mm]:
    • 200
    Stroke [mm]:
    Threaded connection:
    • 3/4"
    Piston rod material:
    • Hard chrome plated
    • Stainless steel
    Seal type:
    • NBR
    Rod:
    • unilateral
    Piston rod thread:
    • M36 x 2
    Delivery time 1-2 Workdays

    CHARACTERISTICS
    • Ambient temperature: -20 to 80°C
    • Operating medium: filtered, unlubricated compressed air
    • Operating pressure: 1 to 10 bar

    XG-200-0025-000

    Data sheet

    Cylinder liner
    Painted aluminium

    Specific References

    Reference:
    XG-200-0025-000
    Threaded connection: 3/4"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 25; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2;
    €875.54
    Reference:
    XG-200-0025-050
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 25; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2;
    €1,028.27
    Reference:
    XG-200-0050-000
    Threaded connection: 3/4"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 50; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2;
    €898.15
    Reference:
    XG-200-0050-050
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 50; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2;
    €1,050.02
    Reference:
    XG-200-0070-050
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 70; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2;
    €892.99
    Reference:
    XG-200-0080-000
    Threaded connection: 3/4"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 80; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2;
    €925.26
    Reference:
    XG-200-0080-050
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 80; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2;
    €1,076.11
    Reference:
    XG-200-0080-050/S19
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 80; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2;
    €1,135.65
    Reference:
    XG-200-0100-000
    Threaded connection: 3/4"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 100; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2;
    €0.00
    Reference:
    XG-200-0100-050
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 100; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2;
    €1,093.51
    Reference:
    XG-200-0125-000
    Threaded connection: 3/4"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 125; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2;
    €0.00
    Reference:
    XG-200-0125-050
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 125; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2;
    €1,115.26
    Reference:
    XG-200-0160-000
    Threaded connection: 3/4"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 160; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2;
    €0.00
    Reference:
    XG-200-0160-050
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 160; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2;
    €1,145.70
    Reference:
    XG-200-0200-000
    Threaded connection: 3/4"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 200; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2;
    €1,134.21
    Reference:
    XG-200-0200-050
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 200; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2;
    €1,180.50
    Reference:
    XG-200-0250-000
    Threaded connection: 3/4"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 250; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2;
    €0.00
    Reference:
    XG-200-0250-050
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 250; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2;
    €1,223.99
    Reference:
    XG-200-0250-054
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: Viton; Stroke/mm: 250; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2;
    €1,145.59
    Reference:
    XG-200-0320-000
    Threaded connection: 3/4"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 320; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2;
    €0.00
    Reference:
    XG-200-0320-050
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 320; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2;
    €1,284.87
    Reference:
    XG-200-0350-050
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 350; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2;
    €1,310.97
    Reference:
    XG-200-0400-000
    Threaded connection: 3/4"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 400; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2;
    €0.00
    Reference:
    XG-200-0400-050
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 400; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2;
    €1,354.46
    Reference:
    XG-200-0450-000
    Threaded connection: 3/4"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 450; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2;
    €0.00
    Reference:
    XG-200-0500-000
    Threaded connection: 3/4"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 500; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2;
    €0.00
    Reference:
    XG-200-0500-050
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 500; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2;
    €1,323.40
    Reference:
    XG-200-0600-050
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 600; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2;
    €1,403.25
    Reference:
    XG-200-0700-000
    Threaded connection: 3/4"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 700; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2;
    €1,528.28
    Reference:
    XG-200-0700-050
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 700; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2;
    €1,483.12
    Reference:
    XG-200-0800-050
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 800; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2;
    €1,562.98
    Reference:
    XG-200-0850-050
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 850; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2;
    €1,460.95
    Reference:
    XG-200-1580-004
    Threaded connection: 3/4"; Piston rod material: Stainless steel; Seal type: Viton; Stroke/mm: 1580; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2;
    €2,377.80
