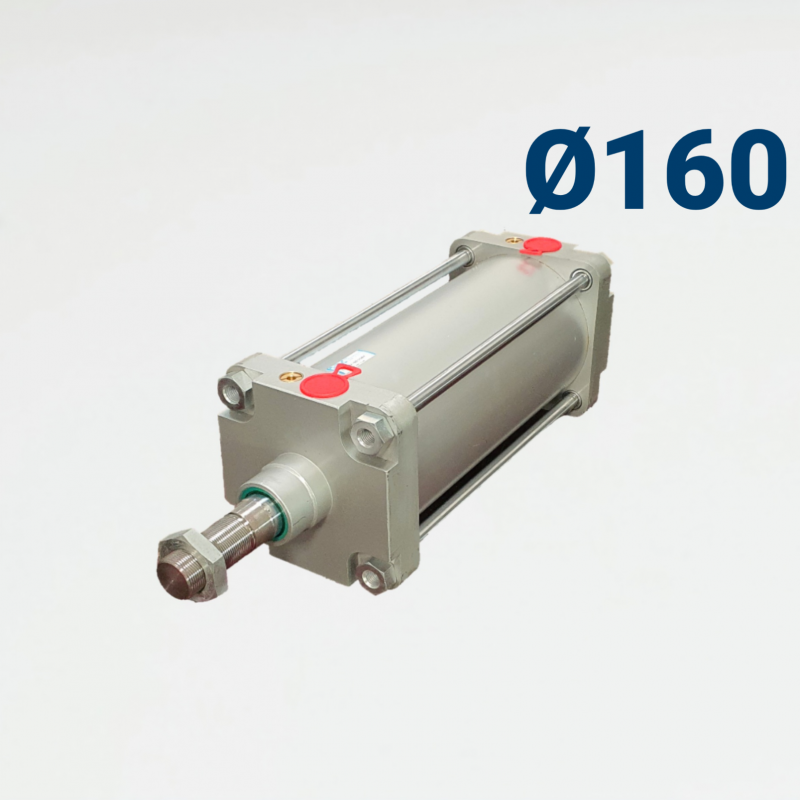

Cylinder series XG (ISO 15552 / ISO 6431) D 160mm

€656.89

Tax excluded

Reference: XG-160-0025-000

SPECIAL STROKES on request!

Ask about product

CHARACTERISTICS

Ambient temperature: -20 to 80°C
Operating medium: filtered, unlubricated compressed air
Operating pressure: 1 to 10 bar

Reference XG-160-0025-000

Data sheet

Cylinder liner: Painted aluminium

Specific References

Reference:
XG-160-0025-000

Threaded connection: 3/4"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 25; Piston diameter: 160; Rod: unilateral; Piston rod thread: M36 x 2;

€656.89

Reference:
XG-160-0025-050

Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 25; Piston diameter: 160; Rod: unilateral; Piston rod thread: M36 x 2;

€767.08

Reference:
XG-160-0030-004

Threaded connection: 3/4"; Piston rod material: Stainless steel; Seal type: Viton; Stroke/mm: 30; Piston diameter: 160; Rod: unilateral; Piston rod thread: M36 x 2;

€681.98

Reference:
XG-160-0050-000

Threaded connection: 3/4"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 50; Piston diameter: 160; Rod: unilateral; Piston rod thread: M36 x 2;

€0.00

Reference:
XG-160-0050-050

Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 50; Piston diameter: 160; Rod: unilateral; Piston rod thread: M36 x 2;

€783.86

Reference:
XG-160-0060-004

Threaded connection: 3/4"; Piston rod material: Stainless steel; Seal type: Viton; Stroke/mm: 60; Piston diameter: 160; Rod: unilateral; Piston rod thread: M36 x 2;

€704.79

Reference:
XG-160-0080-000

Threaded connection: 3/4"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 80; Piston diameter: 160; Rod: unilateral; Piston rod thread: M36 x 2;

€0.00

Reference:
XG-160-0080-050

Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 80; Piston diameter: 160; Rod: unilateral; Piston rod thread: M36 x 2;

€804.00

Reference:
XG-160-0100-000

Threaded connection: 3/4"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 100; Piston diameter: 160; Rod: unilateral; Piston rod thread: M36 x 2;

€0.00

Reference:
XG-160-0100-050

Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 100; Piston diameter: 160; Rod: unilateral; Piston rod thread: M36 x 2;

€817.42

Reference:
XG-160-0125-000

Threaded connection: 3/4"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 125; Piston diameter: 160; Rod: unilateral; Piston rod thread: M36 x 2;

€876.02

Reference:
XG-160-0125-050

Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 125; Piston diameter: 160; Rod: unilateral; Piston rod thread: M36 x 2;

€834.19

Reference:
XG-160-0150-054

Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: Viton; Stroke/mm: 150; Piston diameter: 160; Rod: unilateral; Piston rod thread: M36 x 2;

€723.93

Reference:
XG-160-0160-000

Threaded connection: 3/4"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 160; Piston diameter: 160; Rod: unilateral; Piston rod thread: M36 x 2;

€907.82

Reference:
XG-160-0160-050

Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 160; Piston diameter: 160; Rod: unilateral; Piston rod thread: M36 x 2;

€857.68

Reference:
XG-160-0170-050

Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 170; Piston diameter: 160; Rod: unilateral; Piston rod thread: M36 x 2;

€864.39

Reference:
XG-160-0200-000

Threaded connection: 3/4"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 200; Piston diameter: 160; Rod: unilateral; Piston rod thread: M36 x 2;

€0.00

Reference:
XG-160-0200-050

Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 200; Piston diameter: 160; Rod: unilateral; Piston rod thread: M36 x 2;

€884.52

Reference:
XG-160-0240-050

Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 240; Piston diameter: 160; Rod: unilateral; Piston rod thread: M36 x 2;

€762.48

Reference:
XG-160-0250-000

Threaded connection: 3/4"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 250; Piston diameter: 160; Rod: unilateral; Piston rod thread: M36 x 2;

€0.00

Reference:
XG-160-0250-050

Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 250; Piston diameter: 160; Rod: unilateral; Piston rod thread: M36 x 2;

€918.07

Reference:
XG-160-0260-050

Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 260; Piston diameter: 160; Rod: unilateral; Piston rod thread: M36 x 2;

€924.79

Reference:
XG-160-0320-000

Threaded connection: 3/4"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 320; Piston diameter: 160; Rod: unilateral; Piston rod thread: M36 x 2;

€1,053.18

Reference:
XG-160-0320-050

Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 320; Piston diameter: 160; Rod: unilateral; Piston rod thread: M36 x 2;

€965.05

Reference:
XG-160-0350-050

Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 350; Piston diameter: 160; Rod: unilateral; Piston rod thread: M36 x 2;

€985.18

Reference:
XG-160-0400-000

Threaded connection: 3/4"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 400; Piston diameter: 160; Rod: double rod; Piston rod thread: M36 x 2;

€1,101.00

Reference:
XG-160-0400-050

Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 400; Piston diameter: 160; Rod: unilateral; Piston rod thread: M36 x 2;

€1,018.74

Reference:
XG-160-0500-000

Threaded connection: 3/4"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 500; Piston diameter: 160; Rod: unilateral; Piston rod thread: M36 x 2;

€0.00

Reference:
XG-160-0500-054

Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: Viton; Stroke/mm: 500; Piston diameter: 160; Rod: unilateral; Piston rod thread: M36 x 2;

€928.00

Reference:
XG-160-0600-004

Threaded connection: 3/4"; Piston rod material: Stainless steel; Seal type: Viton; Stroke/mm: 600; Piston diameter: 160; Rod: unilateral; Piston rod thread: M36 x 2;

€0.00

Reference:
XG-160-0630-000/R147

Threaded connection: 3/4"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 630; Piston diameter: 160; Rod: unilateral; Piston rod thread: M36 x 2;

€1,303.89

Reference:
XG-160-0900-050

Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 900; Piston diameter: 160; Rod: unilateral; Piston rod thread: M36 x 2;

€1,243.36

Reference:
XG-160-1000-050

Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 1000; Piston diameter: 160; Rod: unilateral; Piston rod thread: M36 x 2;

€1,304.97
