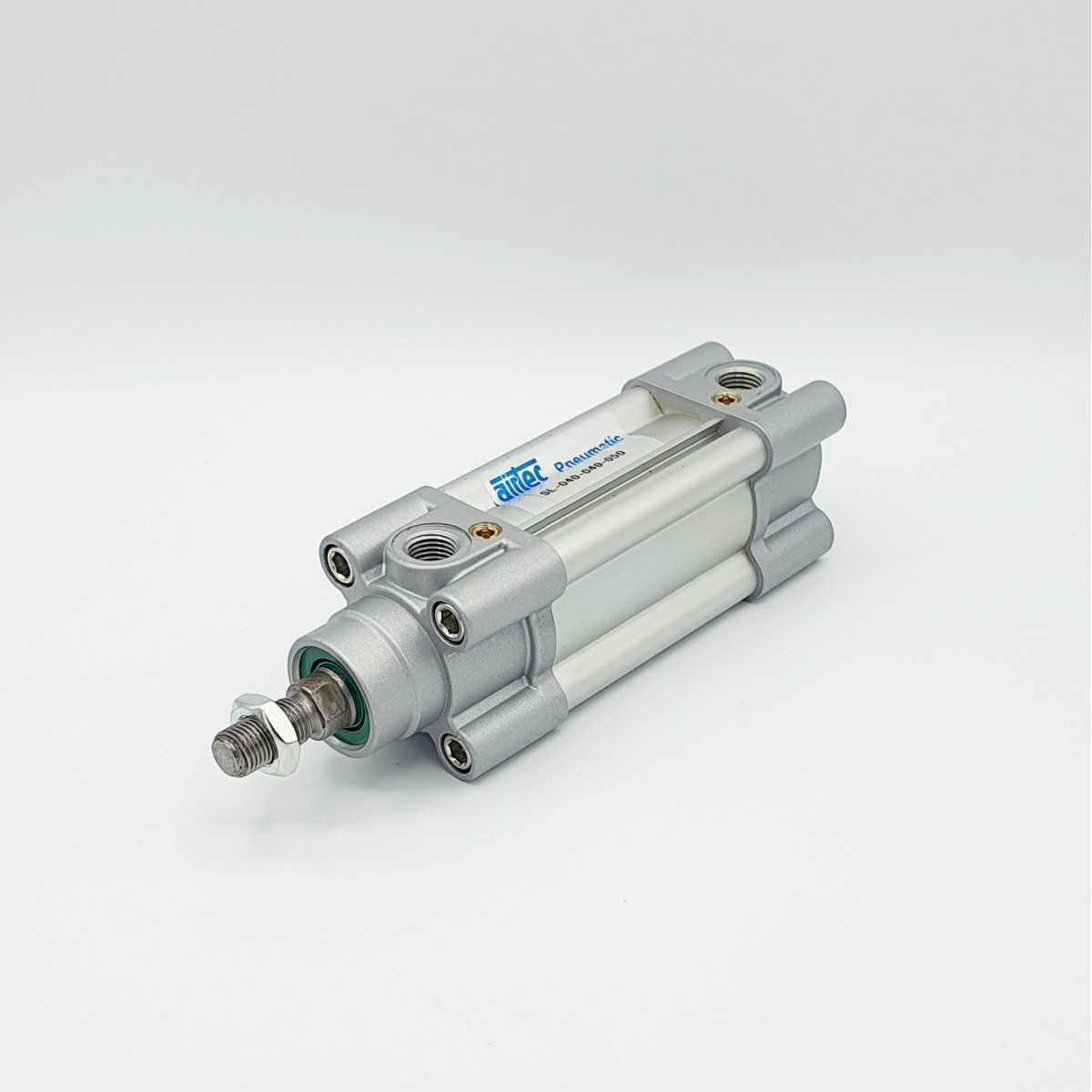

ISO-Cylinder Ø32mm / 50mm (SLX-032-0050-050) - 1
ISO-Cylinder Ø32mm / 50mm (SLX-032-0050-050) - 1

    ISO-Cylinder Ø32mm / 50mm (SLX-032-0050-050)

    €104.53
    Tax excluded
    SLX-032-0050-050

    ISO 15552 / ISO 6431

    help_outlineAsk about product
    ISO-Cylinder Ø32mm / 50mm (SLX-032-0050-050)

    ISO-Cylinder Ø32mm / 50mm (SLX-032-0050-050)

    I accept privacy policy rules

    Piston diameter [mm]:
    • 32
    Stroke [mm]:
    Threaded connection:
    • 1/4"
    Piston rod material:
    • Hard chrome plated
    Seal type:
    • NBR
    End position damping:
    • Adjustable
    Rod:
    • unilateral
    Piston rod thread:
    • M16 x 1,5
    Magnetic piston:
    • Yes
    Standard:
    • ISO 15552 / ISO 6431
    Anti-rotation:
    • No
    Effect:
    • double-acting
    Cylinder series:
    • SLX
    Not in stock - available within 24 hours

    Double-acting pneumatic cylinder with adjustable pneumatic end position cushioning on both sides. With position detection for
    contactless position sensing using cylinder switches.
    Special stroke lengths are available on request.

    Operating pressure: 1 ÷ 10 bar
    Ambient temperature: -20 ÷ +80°C
    Medium: Filtered, oil-free, and dried compressed air in accordance with ISO 8573-
    1:2010, class 7:2:4 – free of aggressive components.
    Notwithstanding this, the pressure dew point must be at least
    10°C below the lowest ambient temperature that occurs.

    Materials:
    Cylinder tube: aluminum, anodized
    Cylinder heads: die-cast aluminum, painted
    Piston rod: steel, hard chrome-plated (optional 1.4301)
    Seals: PU, NBR (optional FKM)

    IMPORTANT: This cylinder series is manufactured in-house and can be customized to your individual requirements. Any special designs that are not available in the shop can be requested.

    SLX-032-0050-050

    Specific References

    Reference:
    SLX-032-0050-050
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 50; Piston diameter: 32; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Standard: ISO 15552 / ISO 6431; Anti-rotation: No; Effect: double-acting; Cylinder series: SLX;
    €104.53
