Cylinder series RP male thread (UNITOP) D 40mm | Beta Online Shop
Cylinder series RP male thread (UNITOP) D 40mm | Beta Online Shop

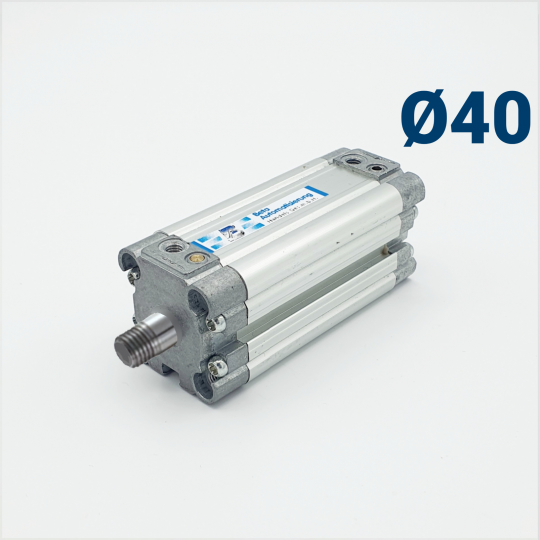

    Cylinder series RP male thread (UNITOP) D 40mm

    €95.22
    Tax excluded
    RP3000400030

    SPECIAL STROKES on request!

    Piston diameter [mm]:
    • 40
    Stroke [mm]:
    Threaded connection:
    • 1/8"
    Piston rod material:
    • Stainless steel
    Seal type:
    • NBR
    End position damping:
    • Adjustable
    Rod:
    • unilateral
    Piston rod thread:
    • M10 x 1,25
    Magnetic piston:
    • Yes
    Anti-rotation:
    • No
    Effect:
    • double-acting
    Not in stock - delivery times can be found on the "Delivery" page

    CHARACTERISTICS
    • Ambient temperature: -20 to 80°C
    • Medium: filtered, unlubricated air
    • Operating pressure: 1,5 to 10 bar
    RP3000400030

    Specific References

    Reference:
    RP3000400030
    Threaded connection: 1/8"; Piston rod material: Stainless steel; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 30; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Anti-rotation: No; Effect: double-acting;
    €95.22
    Reference:
    RP3000400050
    Threaded connection: 1/8"; Piston rod material: Stainless steel; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 50; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Anti-rotation: No; Effect: double-acting;
    €96.62
    Reference:
    RP4000400005
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 5; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Anti-rotation: No; Effect: double-acting;
    €85.31
    Reference:
    RP4000400015
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 15; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Anti-rotation: No; Effect: double-acting;
    €87.31
    Reference:
    RP4000400020
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 20; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Anti-rotation: No; Effect: double-acting;
    €87.69
    Reference:
    RP4000400025
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 25; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Anti-rotation: No; Effect: double-acting;
    €88.38
    Reference:
    RP4000400040
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 40; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Anti-rotation: No; Effect: double-acting;
    €92.19
    Reference:
    RP4000400050
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 50; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Anti-rotation: No; Effect: double-acting;
    €92.19
    Reference:
    RP4000400075
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 75; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Anti-rotation: No; Effect: double-acting;
    €96.58
    Reference:
    RP4000400080
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 80; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Anti-rotation: No; Effect: double-acting;
    €96.58
    Reference:
    RP4000400100
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 100; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Anti-rotation: No; Effect: double-acting;
    €99.39
    Reference:
    RP4000400110
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 110; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Anti-rotation: No; Effect: double-acting;
    €103.03
    Reference:
    RP4000400125
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 125; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Anti-rotation: No; Effect: double-acting;
    €103.03
    Reference:
    RP4000400140
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 140; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Anti-rotation: No; Effect: double-acting;
    €106.90
    Reference:
    RP4000400150
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 150; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Anti-rotation: No; Effect: double-acting;
    €108.60
    Reference:
    RP4000400170
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 170; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Anti-rotation: No; Effect: double-acting;
    €110.41
    Reference:
    RP4000400180
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 180; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Anti-rotation: No; Effect: double-acting;
    €113.89
    Reference:
    RP3000400010
    Threaded connection: 1/8"; Piston rod material: Stainless steel; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 10; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Anti-rotation: No; Effect: double-acting;
    €92.07
    Reference:
    RP3000400025
    Threaded connection: 1/8"; Piston rod material: Stainless steel; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 25; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Anti-rotation: No; Effect: double-acting;
    €94.46
    Reference:
    RP3000400100
    Threaded connection: 1/8"; Piston rod material: Stainless steel; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 100; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Anti-rotation: No; Effect: double-acting;
    €106.15
