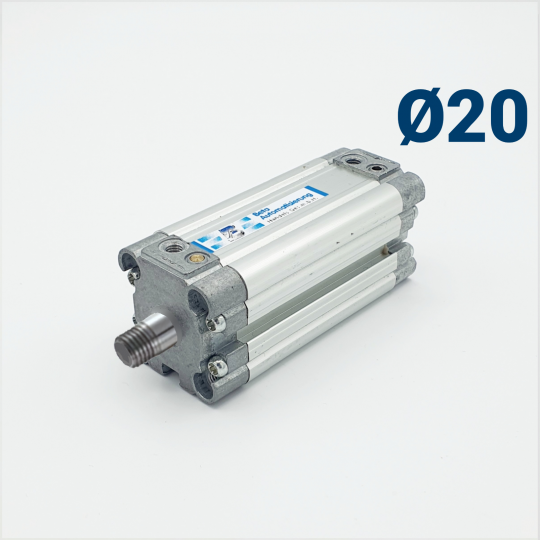

Cylinder series RM male thread (UNITOP ISO 21287) D 20mm

€73.49

Tax excluded

CHARACTERISTICS

Ambient temperature: -20 to 80°C
Medium: filtered, unlubricated air
Operating pressure: 1,5 to 10 bar

Reference RM3000200010

Specific References

Reference:
RM3000200010

Threaded connection: M5; Piston rod material: Stainless steel; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 10; Piston diameter: 20; Rod: unilateral; Piston rod thread: M8 x 1,25; Magnetic piston: Yes; Anti-rotation: No; Effect: double-acting;

€73.49

Reference:
RM3000200025

Threaded connection: M5; Piston rod material: Stainless steel; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 25; Piston diameter: 20; Rod: unilateral; Piston rod thread: M8 x 1,25; Magnetic piston: Yes; Anti-rotation: No; Effect: double-acting;

€75.13

Reference:
RM3000200050

Threaded connection: M5; Piston rod material: Stainless steel; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 50; Piston diameter: 20; Rod: unilateral; Piston rod thread: M8 x 1,25; Magnetic piston: Yes; Anti-rotation: No; Effect: double-acting;

€77.91

Reference:
RM3000200100

Threaded connection: M5; Piston rod material: Stainless steel; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 100; Piston diameter: 20; Rod: unilateral; Piston rod thread: M8 x 1,25; Magnetic piston: Yes; Anti-rotation: No; Effect: double-acting;

€83.51

Reference:
RM3000200160

Threaded connection: M5; Piston rod material: Stainless steel; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 160; Piston diameter: 20; Rod: unilateral; Piston rod thread: M8 x 1,25; Magnetic piston: Yes; Anti-rotation: No; Effect: double-acting;

€90.21

Reference:
RM4000200010

Threaded connection: M5; Piston rod material: Hard chrome plated; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 10; Piston diameter: 20; Rod: unilateral; Piston rod thread: M8 x 1,25; Magnetic piston: Yes; Anti-rotation: No; Effect: double-acting;

€68.63

Reference:
RM4000200025

Threaded connection: M5; Piston rod material: Hard chrome plated; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 25; Piston diameter: 20; Rod: unilateral; Piston rod thread: M8 x 1,25; Magnetic piston: Yes; Anti-rotation: No; Effect: double-acting;

€70.25

Reference:
RM4000200050

Threaded connection: M5; Piston rod material: Hard chrome plated; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 50; Piston diameter: 20; Rod: unilateral; Piston rod thread: M8 x 1,25; Magnetic piston: Yes; Anti-rotation: No; Effect: double-acting;

€72.79

Reference:
RM4000200100

Threaded connection: M5; Piston rod material: Hard chrome plated; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 100; Piston diameter: 20; Rod: unilateral; Piston rod thread: M8 x 1,25; Magnetic piston: Yes; Anti-rotation: No; Effect: double-acting;

€78.03

Reference:
RM4000200160

Threaded connection: M5; Piston rod material: Hard chrome plated; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 160; Piston diameter: 20; Rod: unilateral; Piston rod thread: M8 x 1,25; Magnetic piston: Yes; Anti-rotation: No; Effect: double-acting;

€84.33
