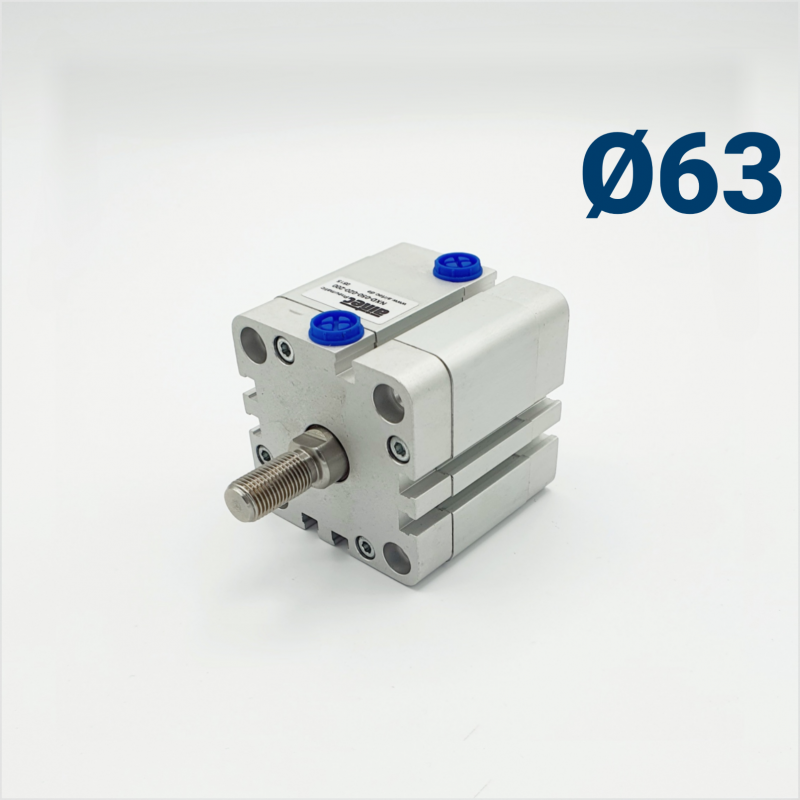

Cylinder series NXD /D 63mm

€136.63

Tax excluded

Reference: NXD-063-005-200

SPECIAL STROKES on request!

Ask about product

CHARACTERISTICS

Ambient temperature: -10 to 80°C
Operating medium: filtered, unlubricated compressed air
Operating pressure: 1 to 10 bar

Reference NXD-063-005-200

Data sheet

Cylinder liner: Anodized aluminum

Specific References

Reference:
NXD-063-005-200

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 5; Piston diameter: 63; Rod: unilateral; Piston rod thread: M12 x 1,25; Effect: double-acting;

€136.63

Reference:
NXD-063-005-210

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 5; Piston diameter: 63; Rod: unilateral; Piston rod thread: M8; Effect: double-acting;

€136.63

Reference:
NXD-063-005-220

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 5; Piston diameter: 63; Rod: unilateral; Piston rod thread: M8; Anti-rotation: Ja; Effect: double-acting;

€221.09

Reference:
NXD-063-005-600

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 5; Piston diameter: 63; Rod: double rod; Piston rod thread: M12 x 1,25; Effect: double-acting;

€139.54

Reference:
NXD-063-005-610

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 5; Piston diameter: 63; Rod: double rod; Piston rod thread: M8; Effect: double-acting;

€177.34

Reference:
NXD-063-010-200

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 10; Piston diameter: 63; Rod: unilateral; Piston rod thread: M12 x 1,25; Effect: double-acting;

€139.08

Reference:
NXD-063-010-210

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 10; Piston diameter: 63; Rod: unilateral; Piston rod thread: M8; Effect: double-acting;

€139.08

Reference:
NXD-063-010-220

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 10; Piston diameter: 63; Rod: unilateral; Piston rod thread: M8; Anti-rotation: Ja; Effect: double-acting;

€223.71

Reference:
NXD-063-010-600

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 10; Piston diameter: 63; Rod: double rod; Piston rod thread: M12 x 1,25; Effect: double-acting;

€141.58

Reference:
NXD-063-010-610

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 10; Piston diameter: 63; Rod: double rod; Piston rod thread: M8; Effect: double-acting;

€179.95

Reference:
NXD-063-015-200

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 15; Piston diameter: 63; Rod: unilateral; Piston rod thread: M12 x 1,25; Effect: double-acting;

€141.61

Reference:
NXD-063-015-210

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 15; Piston diameter: 63; Rod: unilateral; Piston rod thread: M8; Effect: double-acting;

€141.61

Reference:
NXD-063-015-220

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 15; Piston diameter: 63; Rod: unilateral; Piston rod thread: M8; Anti-rotation: Ja; Effect: double-acting;

€226.32

Reference:
NXD-063-015-600

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 15; Piston diameter: 63; Rod: double rod; Piston rod thread: M12 x 1,25; Effect: double-acting;

€143.79

Reference:
NXD-063-015-610

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 15; Piston diameter: 63; Rod: unilateral; Piston rod thread: M8; Effect: double-acting;

€182.77

Reference:
NXD-063-020-200

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 20; Piston diameter: 63; Rod: unilateral; Piston rod thread: M12 x 1,25; Effect: double-acting;

€144.52

Reference:
NXD-063-020-210

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 20; Piston diameter: 63; Rod: unilateral; Piston rod thread: M8; Effect: double-acting;

€144.52

Reference:
NXD-063-020-220

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 20; Piston diameter: 63; Rod: unilateral; Piston rod thread: M8; Anti-rotation: Ja; Effect: double-acting;

€229.20

Reference:
NXD-063-020-600

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 20; Piston diameter: 63; Rod: double rod; Piston rod thread: M12 x 1,25; Effect: double-acting;

€145.93

Reference:
NXD-063-020-610

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 20; Piston diameter: 63; Rod: double rod; Piston rod thread: M8; Effect: double-acting;

€185.51

Reference:
NXD-063-025-200

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 25; Piston diameter: 63; Rod: unilateral; Piston rod thread: M12 x 1,25; Effect: double-acting;

€147.23

Reference:
NXD-063-025-210

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 25; Piston diameter: 63; Rod: unilateral; Piston rod thread: M8; Effect: double-acting;

€147.23

Reference:
NXD-063-025-220

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 25; Piston diameter: 63; Rod: unilateral; Piston rod thread: M12 x 1,25; Anti-rotation: Ja; Effect: double-acting;

€231.60

Reference:
NXD-063-025-600

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 25; Piston diameter: 63; Rod: double rod; Piston rod thread: M12 x 1,25; Effect: double-acting;

€187.86

Reference:
NXD-063-025-610

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 25; Piston diameter: 63; Rod: double rod; Piston rod thread: M8; Effect: double-acting;

€187.86

Reference:
NXD-063-030-200

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 30; Piston diameter: 63; Rod: unilateral; Piston rod thread: M12 x 1,25; Effect: double-acting;

€149.82

Reference:
NXD-063-030-210

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 30; Piston diameter: 63; Rod: unilateral; Piston rod thread: M8; Effect: double-acting;

€149.82

Reference:
NXD-063-030-220

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 30; Piston diameter: 63; Rod: unilateral; Piston rod thread: M8; Anti-rotation: Ja; Effect: double-acting;

€234.28

Reference:
NXD-063-030-600

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 30; Piston diameter: 63; Rod: double rod; Piston rod thread: M8; Effect: double-acting;

€150.07

Reference:
NXD-063-030-610

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 30; Piston diameter: 63; Rod: double rod; Piston rod thread: M8; Effect: double-acting;

€190.73

Reference:
NXD-063-040-200

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 40; Piston diameter: 63; Rod: unilateral; Piston rod thread: M12 x 1,25; Effect: double-acting;

€155.07

Reference:
NXD-063-040-210

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 40; Piston diameter: 63; Rod: unilateral; Piston rod thread: M8; Effect: double-acting;

€155.07

Reference:
NXD-063-040-220

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 40; Piston diameter: 63; Rod: unilateral; Piston rod thread: M8; Anti-rotation: Ja; Effect: double-acting;

€239.64

Reference:
NXD-063-040-600

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 40; Piston diameter: 63; Rod: double rod; Piston rod thread: M12 x 1,25; Effect: double-acting;

€196.08

Reference:
NXD-063-040-610

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 4; Piston diameter: 63; Rod: double rod; Piston rod thread: M8; Effect: double-acting;

€196.08

Reference:
NXD-063-050-200

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 50; Piston diameter: 63; Rod: unilateral; Piston rod thread: M12 x 1,25; Effect: double-acting;

€160.55

Reference:
NXD-063-050-210

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 50; Piston diameter: 63; Rod: unilateral; Piston rod thread: M8; Effect: double-acting;

€160.55

Reference:
NXD-063-050-220

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 50; Piston diameter: 63; Rod: unilateral; Piston rod thread: M8; Anti-rotation: Ja; Effect: double-acting;

€244.87

Reference:
NXD-063-050-600

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 50; Piston diameter: 63; Rod: double rod; Piston rod thread: M12 x 1,25; Effect: double-acting;

€201.30

Reference:
NXD-063-050-610

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 50; Piston diameter: 63; Rod: double rod; Piston rod thread: M8; Effect: double-acting;

€201.30

Reference:
NXD-063-060-200

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 60; Piston diameter: 63; Rod: unilateral; Piston rod thread: M12 x 1,25; Effect: double-acting;

€165.78

Reference:
NXD-063-060-210

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 60; Piston diameter: 63; Rod: unilateral; Piston rod thread: M8; Effect: double-acting;

€165.78

Reference:
NXD-063-060-220

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 60; Piston diameter: 63; Rod: unilateral; Piston rod thread: M8; Anti-rotation: Ja; Effect: double-acting;

€250.22

Reference:
NXD-063-060-600

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 60; Piston diameter: 63; Rod: double rod; Piston rod thread: M12 x 1,25; Effect: double-acting;

€162.86

Reference:
NXD-063-060-610

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 60; Piston diameter: 63; Rod: double rod; Piston rod thread: M8; Effect: double-acting;

€206.99

Reference:
NXD-063-070-220

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 70; Piston diameter: 63; Rod: unilateral; Piston rod thread: M8; Anti-rotation: Ja; Effect: double-acting;

€286.38

Reference:
NXD-063-080-200

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 80; Piston diameter: 63; Rod: unilateral; Piston rod thread: M12 x 1,25; Effect: double-acting;

€176.65

Reference:
NXD-063-080-210

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 80; Piston diameter: 63; Rod: unilateral; Piston rod thread: M8; Effect: double-acting;

€176.65

Reference:
NXD-063-080-220

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 80; Piston diameter: 63; Rod: unilateral; Piston rod thread: M8; Anti-rotation: Ja; Effect: double-acting;

€260.79

Reference:
NXD-063-080-600

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 80; Piston diameter: 63; Rod: double rod; Piston rod thread: M12 x 1,25; Effect: double-acting;

€217.36

Reference:
NXD-063-080-610

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 80; Piston diameter: 63; Rod: double rod; Piston rod thread: M8; Effect: double-acting;

€217.36

Reference:
NXD-063-100-200

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 100; Piston diameter: 63; Rod: unilateral; Piston rod thread: M12 x 1,25; Effect: double-acting;

€211.30

Reference:
NXD-063-100-210

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 100; Piston diameter: 63; Rod: unilateral; Piston rod thread: M8; Effect: double-acting;

€211.30

Reference:
NXD-063-100-220

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 100; Piston diameter: 63; Rod: unilateral; Piston rod thread: M8; Anti-rotation: Ja; Effect: double-acting;

€300.87

Reference:
NXD-063-100-600

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 100; Piston diameter: 63; Rod: double rod; Piston rod thread: M12 x 1,25; Effect: double-acting;

€250.14

Reference:
NXD-063-100-610

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 100; Piston diameter: 63; Rod: double rod; Piston rod thread: M8; Effect: double-acting;

€250.14

Reference:
NXD-063-160-200

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 160; Piston diameter: 63; Rod: unilateral; Piston rod thread: M12 x 1,25; Effect: double-acting;

€241.96
