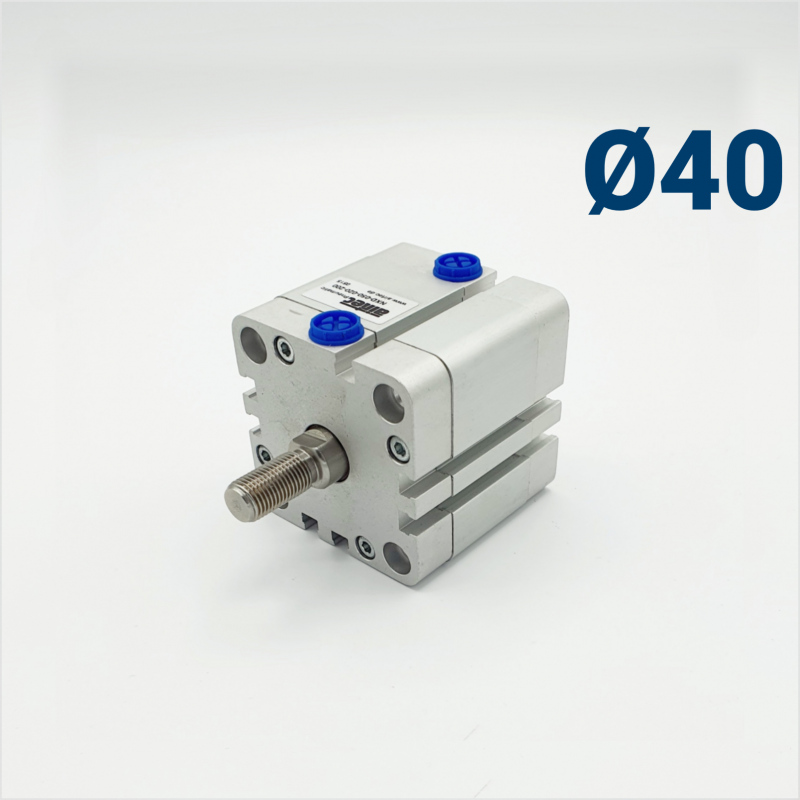

Cylinder series NXD /D 40mm

€97.58

Tax excluded

CHARACTERISTICS

Ambient temperature: -10 to 80°C
Operating medium: filtered, unlubricated compressed air
Operating pressure: 1 to 10 bar

Reference NXD-040-005-200

Data sheet

Cylinder liner: Anodized aluminum

Specific References

Reference:
NXD-040-005-200

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 5; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Effect: double-acting;

€97.58

Reference:
NXD-040-005-210

Threaded connection: 1/8"; Seal type: Viton; Stroke/mm: 5; Piston diameter: 40; Rod: unilateral; Piston rod thread: M6; Effect: double-acting;

€97.58

Reference:
NXD-040-005-220

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 5; Piston diameter: 40; Rod: unilateral; Piston rod thread: M6; Anti-rotation: Ja; Effect: double-acting;

€149.80

Reference:
NXD-040-005-600

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 5; Piston diameter: 40; Rod: double rod; Piston rod thread: M10 x 1,25; Effect: double-acting;

€95.89

Reference:
NXD-040-005-610

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 5; Piston diameter: 40; Rod: double rod; Piston rod thread: M6; Effect: double-acting;

€126.79

Reference:
NXD-040-010-200

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 10; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Effect: double-acting;

€99.26

Reference:
NXD-040-010-210

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 10; Piston diameter: 40; Rod: unilateral; Piston rod thread: M6; Effect: double-acting;

€99.26

Reference:
NXD-040-010-220

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 10; Piston diameter: 40; Rod: unilateral; Piston rod thread: M6; Anti-rotation: Ja; Effect: double-acting;

€152.05

Reference:
NXD-040-010-600

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 10; Piston diameter: 40; Rod: double rod; Piston rod thread: M10 x 1,25; Effect: double-acting;

€128.90

Reference:
NXD-040-010-610

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 10; Piston diameter: 40; Rod: double rod; Piston rod thread: M6; Effect: double-acting;

€128.90

Reference:
NXD-040-015-200

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 15; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Effect: double-acting;

€101.07

Reference:
NXD-040-015-210

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 15; Piston diameter: 40; Rod: unilateral; Piston rod thread: M6; Effect: double-acting;

€101.07

Reference:
NXD-040-015-220

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 15; Piston diameter: 40; Rod: unilateral; Piston rod thread: M6; Anti-rotation: Ja; Effect: double-acting;

€154.01

Reference:
NXD-040-015-600

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 15; Piston diameter: 40; Rod: double rod; Piston rod thread: M10 x 1,25; Effect: double-acting;

€99.09

Reference:
NXD-040-015-610

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 15; Piston diameter: 40; Rod: double rod; Piston rod thread: M6; Effect: double-acting;

€131.00

Reference:
NXD-040-020-200

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 20; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Effect: double-acting;

€102.69

Reference:
NXD-040-020-210

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 20; Piston diameter: 40; Rod: unilateral; Piston rod thread: M6; Effect: double-acting;

€102.69

Reference:
NXD-040-020-220

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 20; Piston diameter: 40; Rod: unilateral; Piston rod thread: M6; Anti-rotation: Ja; Effect: double-acting;

€156.05

Reference:
NXD-040-020-600

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 20; Piston diameter: 40; Rod: double rod; Piston rod thread: M10 x 1,25; Effect: double-acting;

€132.83

Reference:
NXD-040-020-610

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 20; Piston diameter: 40; Rod: double rod; Piston rod thread: M6; Effect: double-acting;

€132.83

Reference:
NXD-040-025-200

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 25; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Effect: double-acting;

€104.71

Reference:
NXD-040-025-210

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 25; Piston diameter: 40; Rod: unilateral; Piston rod thread: M6; Effect: double-acting;

€104.71

Reference:
NXD-040-025-220

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 25; Piston diameter: 40; Rod: unilateral; Piston rod thread: M6; Anti-rotation: Ja; Effect: double-acting;

€157.81

Reference:
NXD-040-025-600

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 25; Piston diameter: 40; Rod: double rod; Piston rod thread: M10 x 1,25; Effect: double-acting;

€101.97

Reference:
NXD-040-025-610

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 25; Piston diameter: 40; Rod: unilateral; Piston rod thread: M6; Effect: double-acting;

€134.80

Reference:
NXD-040-030-200

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 30; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Effect: double-acting;

€106.26

Reference:
NXD-040-030-210

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 30; Piston diameter: 40; Rod: unilateral; Piston rod thread: M6; Effect: double-acting;

€106.26

Reference:
NXD-040-030-220

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 30; Piston diameter: 40; Rod: unilateral; Piston rod thread: M6; Anti-rotation: Ja; Effect: double-acting;

€159.85

Reference:
NXD-040-030-600

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 30; Piston diameter: 40; Rod: double rod; Piston rod thread: M10 x 1,25; Effect: double-acting;

€136.97

Reference:
NXD-040-030-610

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 30; Piston diameter: 40; Rod: double rod; Piston rod thread: M6; Effect: double-acting;

€136.97

Reference:
NXD-040-040-200

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 40; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Effect: double-acting;

€109.69

Reference:
NXD-040-040-210

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 40; Piston diameter: 40; Rod: unilateral; Piston rod thread: M6; Effect: double-acting;

€109.69

Reference:
NXD-040-040-220

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 40; Piston diameter: 40; Rod: unilateral; Piston rod thread: M6; Anti-rotation: Ja; Effect: double-acting;

€163.74

Reference:
NXD-040-040-600

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 40; Piston diameter: 40; Rod: double rod; Piston rod thread: M10 x 1,25; Effect: double-acting;

€140.58

Reference:
NXD-040-040-610

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 40; Piston diameter: 40; Rod: double rod; Piston rod thread: M6; Effect: double-acting;

€140.58

Reference:
NXD-040-050-200

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 50; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Effect: double-acting;

€113.05

Reference:
NXD-040-050-210

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 50; Piston diameter: 40; Rod: unilateral; Piston rod thread: M6; Effect: double-acting;

€113.05

Reference:
NXD-040-050-220

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 50; Piston diameter: 40; Rod: unilateral; Piston rod thread: M6; Anti-rotation: Ja; Effect: double-acting;

€167.67

Reference:
NXD-040-050-600

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 50; Piston diameter: 40; Rod: double rod; Piston rod thread: M10 x 1,25; Effect: double-acting;

€144.50

Reference:
NXD-040-050-610

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 50; Piston diameter: 40; Rod: double rod; Piston rod thread: M6; Effect: double-acting;

€144.50

Reference:
NXD-040-060-200

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 60; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Effect: double-acting;

€116.40

Reference:
NXD-040-060-210

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 60; Piston diameter: 40; Rod: unilateral; Piston rod thread: M6; Effect: double-acting;

€116.40

Reference:
NXD-040-060-220

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 60; Piston diameter: 40; Rod: unilateral; Piston rod thread: M6; Anti-rotation: Ja; Effect: double-acting;

€171.53

Reference:
NXD-040-060-600

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 60; Piston diameter: 40; Rod: double rod; Piston rod thread: M10 x 1,25; Effect: double-acting;

€148.45

Reference:
NXD-040-060-610

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 60; Piston diameter: 40; Rod: double rod; Piston rod thread: M6; Effect: double-acting;

€148.45

Reference:
NXD-040-075-200

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 75; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Effect: double-acting;

€139.52

Reference:
NXD-040-080-200

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 80; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Effect: double-acting;

€141.15

Reference:
NXD-040-080-210

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 80; Piston diameter: 40; Rod: unilateral; Piston rod thread: M6; Effect: double-acting;

€141.15

Reference:
NXD-040-080-220

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 80; Piston diameter: 40; Rod: unilateral; Piston rod thread: M6; Anti-rotation: Ja; Effect: double-acting;

€179.29

Reference:
NXD-040-080-600

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 80; Piston diameter: 40; Rod: double rod; Piston rod thread: M10 x 1,25; Effect: double-acting;

€118.16

Reference:
NXD-040-080-610

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 80; Piston diameter: 40; Rod: double rod; Piston rod thread: M6; Effect: double-acting;

€156.19

Reference:
NXD-040-090-200

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 90; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Effect: double-acting;

€144.42

Reference:
NXD-040-090-210

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 90; Piston diameter: 40; Rod: unilateral; Piston rod thread: M6; Effect: double-acting;

€144.42

Reference:
NXD-040-100-200

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 100; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Effect: double-acting;

€147.69

Reference:
NXD-040-100-210

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 100; Piston diameter: 40; Rod: unilateral; Piston rod thread: M6; Effect: double-acting;

€147.69

Reference:
NXD-040-100-220

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 100; Piston diameter: 40; Rod: unilateral; Piston rod thread: M6; Anti-rotation: Ja; Effect: double-acting;

€206.30

Reference:
NXD-040-100-600

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 100; Piston diameter: 40; Rod: double rod; Piston rod thread: M10 x 1,25; Effect: double-acting;

€179.68

Reference:
NXD-040-100-610

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 100; Piston diameter: 40; Rod: double rod; Piston rod thread: M6; Effect: double-acting;

€179.68

Reference:
NXD-040-160-200

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 160; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Effect: double-acting;

€167.31

Reference:
NXD-040-170-200

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 170; Piston diameter: 40; Rod: unilateral; Piston rod thread: M10 x 1,25; Effect: double-acting;

€135.58

Reference:
NXD-040-300-220

Threaded connection: 1/8"; Seal type: NBR; Stroke/mm: 300; Piston diameter: 40; Rod: unilateral; Piston rod thread: M6; Anti-rotation: Ja; Effect: double-acting;

€276.70
