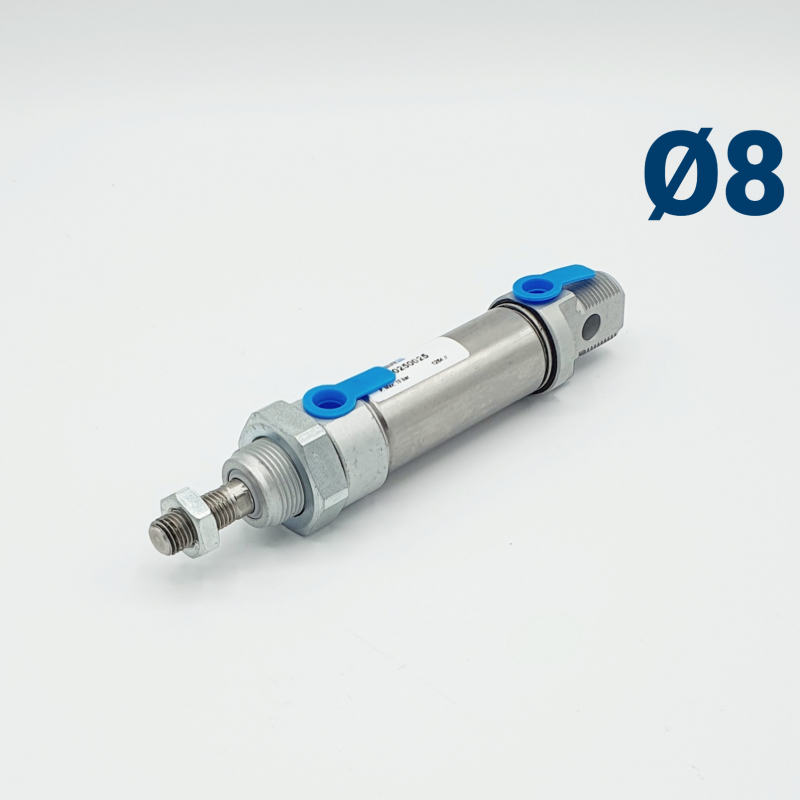

Cylinder series M (ISO 6432) D 8mm - 1
Cylinder series M (ISO 6432) D 8mm - 1

    Cylinder series M (ISO 6432) D 8mm

    €42.81
    Tax excluded
    M1000080010

    SPECIAL STROKES on request!

    help_outlineAsk about product
    Cylinder series M (ISO 6432) D 8mm

    Cylinder series M (ISO 6432) D 8mm

    I accept privacy policy rules

    Piston diameter [mm]:
    • 8
    Stroke [mm]:
    Threaded connection:
    • M5 x 0.8
    Piston rod material:
    • Stainless steel
    Seal type:
    • NBR
    End position damping:
    • not adjustable
    Rod:
    • unilateral
    Piston rod thread:
    • M4 x 0.7
    Magnetic piston:
    • No
    Effect:
    • single-acting
    • double-acting
    Not in stock - delivery times can be found on the "Delivery" page

    CHARACTERISTICS
    • Ambient temperature: -20 to 80°C
    • Operating medium: filtered, unlubricated compressed air
    • Operating pressure: 1.5 to 10 bar

    3D-Model
    M1000080010

    Specific References

    Reference:
    M1000080010
    Threaded connection: M5 x 0.8; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 10; Piston diameter: 8; Rod: unilateral; Piston rod thread: M4 x 0.7; Magnetic piston: No; Effect: double-acting;
    €42.81
    Reference:
    M1000080020
    Threaded connection: M5 x 0.8; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 20; Piston diameter: 8; Rod: unilateral; Piston rod thread: M4 x 0.7; Magnetic piston: No; Effect: double-acting;
    €43.33
    Reference:
    M1000080025
    Threaded connection: M5 x 0.8; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 25; Piston diameter: 8; Rod: unilateral; Piston rod thread: M4 x 0.7; Magnetic piston: No; Effect: double-acting;
    €43.57
    Reference:
    M1000080030
    Threaded connection: M5 x 0.8; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 30; Piston diameter: 8; Rod: double rod; Piston rod thread: M4 x 0.7; Magnetic piston: No; Effect: double-acting;
    €43.84
    Reference:
    M1000080040
    Threaded connection: M5 x 0.8; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 40; Piston diameter: 8; Rod: unilateral; Piston rod thread: M4 x 0.7; Magnetic piston: No; Effect: double-acting;
    €44.35
    Reference:
    M1000080050
    Threaded connection: M5 x 0.8; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 50; Piston diameter: 8; Rod: unilateral; Piston rod thread: M4 x 0.7; Magnetic piston: No; Effect: double-acting;
    €45.01
    Reference:
    M1000080075
    Threaded connection: M5 x 0.8; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 75; Piston diameter: 8; Rod: unilateral; Piston rod thread: M4 x 0.7; Magnetic piston: No; Effect: double-acting;
    €46.16
    Reference:
    M1000080080
    Threaded connection: M5 x 0.8; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 80; Piston diameter: 8; Rod: double rod; Piston rod thread: M4 x 0.7; Magnetic piston: No; Effect: double-acting;
    €46.43
    Reference:
    M1000080100
    Threaded connection: M5 x 0.8; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 100; Piston diameter: 8; Rod: unilateral; Piston rod thread: M4 x 0.7; Magnetic piston: No; Effect: double-acting;
    €47.59
    Reference:
    M1600080010
    Threaded connection: M5 x 0.8; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 10; Piston diameter: 8; Rod: unilateral; Piston rod thread: M4 x 0.7; Magnetic piston: No; Effect: single-acting;
    €53.13
    Reference:
    M1600080020
    Threaded connection: M5 x 0.8; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 20; Piston diameter: 8; Rod: unilateral; Piston rod thread: M4 x 0.7; Magnetic piston: No; Effect: single-acting;
    €54.03
    Reference:
    M1600080025
    Threaded connection: M5 x 0.8; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 25; Piston diameter: 8; Rod: unilateral; Piston rod thread: M4 x 0.7; Magnetic piston: No; Effect: single-acting;
    €54.41
    Reference:
    M1600080040
    Threaded connection: M5; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 40; Piston diameter: 8; Rod: unilateral; Piston rod thread: M4 x 0.7; Magnetic piston: No; Effect: single-acting;
    €55.06
    Reference:
    M1600080050
    Threaded connection: M5 x 0.8; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 50; Piston diameter: 8; Rod: unilateral; Piston rod thread: M4 x 0.7; Magnetic piston: No; Effect: single-acting;
    €55.84
