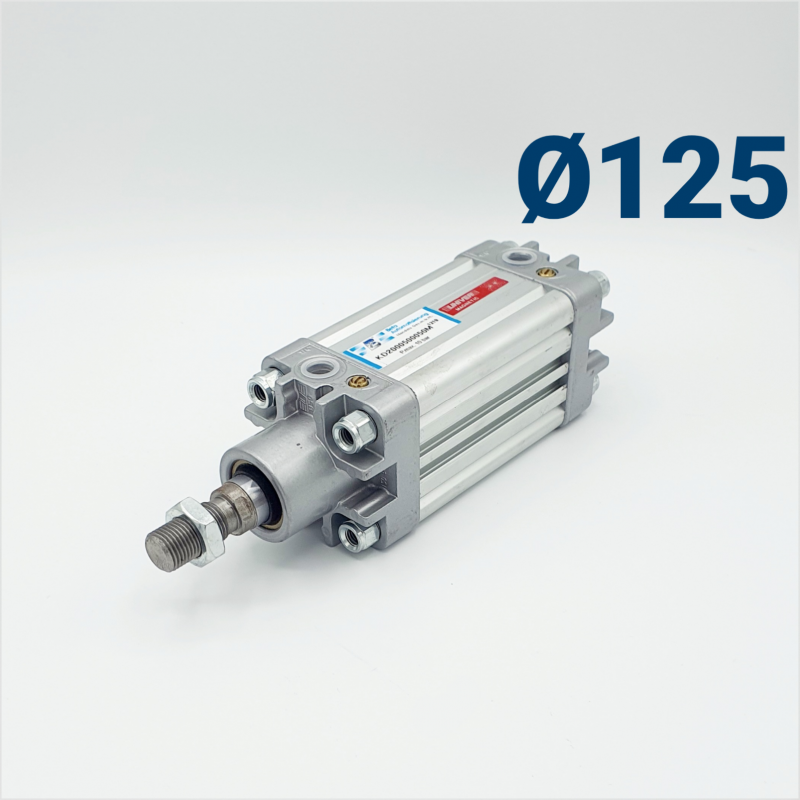

Cylinder series KD (ISO 6431) D 125mm - 1
Cylinder series KD (ISO 6431) D 125mm - 1

    Cylinder series KD (ISO 6431) D 125mm

    €479.66
    Tax excluded
    KD2001250015M

    SPECIAL STROKES on request!

    help_outlineAsk about product
    Cylinder series KD (ISO 6431) D 125mm

    Cylinder series KD (ISO 6431) D 125mm

    I accept privacy policy rules

    Piston diameter [mm]:
    • 125
    Stroke [mm]:
    Threaded connection:
    • 1/2"
    Piston rod material:
    • Hard chrome plated
    Seal type:
    • NBR
    Rod:
    • unilateral
    Piston rod thread:
    • M27 x 2
    Magnetic piston:
    • Yes
    Effect:
    • double-acting
    Delivery time 1-2 Workdays

    CHARACTERISTICS
    • Ambient temperature: -20 to 80°C
    • Operating medium: filtered, unlubricated compressed air
    • Operating pressure: 1.5 to 10 bar
    3D-Model
    KD2001250015M

    Data sheet

    Cylinder cover
    Die-cast aluminum
    Cylinder liner
    Anodized aluminum
    Piston
    Die-cast aluminum
    Piston guide ring
    Acetal resin
    Piston seals
    NBR

    Specific References

    Reference:
    KD2001250015M
    Threaded connection: 1/2"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 15; Piston diameter: 125; Rod: unilateral; Piston rod thread: M27 x 2; Magnetic piston: Yes; Effect: double-acting;
    €479.66
    Reference:
    KD2001250025M
    Threaded connection: 1/2"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 25; Piston diameter: 125; Rod: unilateral; Piston rod thread: M27 x 2; Magnetic piston: Yes; Effect: double-acting;
    €480.96
    Reference:
    KD2001250050M
    Threaded connection: 1/2"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 50; Piston diameter: 125; Rod: unilateral; Piston rod thread: M27 x 2; Magnetic piston: Yes; Effect: double-acting;
    €473.21
    Reference:
    KD2001250125M
    Threaded connection: 1/2"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 125; Piston diameter: 125; Rod: unilateral; Piston rod thread: M27 x 2; Magnetic piston: Yes; Effect: double-acting;
    €514.47
    Reference:
    KD2001250200M
    Threaded connection: 1/2"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 200; Piston diameter: 125; Rod: unilateral; Piston rod thread: M27 x 2; Magnetic piston: Yes; Effect: double-acting;
    €585.41
    Reference:
    KD2001250250M
    Threaded connection: 1/2"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 250; Piston diameter: 125; Rod: unilateral; Piston rod thread: M27 x 2; Magnetic piston: Yes; Effect: double-acting;
    €612.47
    Reference:
    KD2001250600M
    Threaded connection: 1/2"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 600; Piston diameter: 125; Rod: unilateral; Piston rod thread: M27 x 2; Magnetic piston: Yes; Effect: double-acting;
    €755.60
    Reference:
    KD2001250800M
    Threaded connection: 1/2"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 800; Piston diameter: 125; Rod: unilateral; Piston rod thread: M27 x 2; Magnetic piston: Yes; Effect: double-acting;
    €947.72
    Reference:
    KD2001250900M
    Threaded connection: 1/2"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 900; Piston diameter: 125; Rod: unilateral; Piston rod thread: M27 x 2; Magnetic piston: Yes; Effect: double-acting;
    €1,008.41
    Reference:
    KD2001251600M
    Threaded connection: 1/2"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 600; Piston diameter: 125; Rod: unilateral; Piston rod thread: M27 x 2; Magnetic piston: Yes; Effect: double-acting;
    €1,423.11
